OBO Bettermann GRAF9-2 U 9011 Inset
EAN:
Part number:
Item no:
Technical specifications
- Design cover = round
- Suitable for wet care = Yes
- Suitable for underfloor channel = Yes
- Suitable for hollow-ground = Yes
- Suitable for double-Ground = Yes
- Number of device cup = 3
- Material = die-cast aluminum
- With flooring recess = No
- Flooring protection frame = Yes
- Color = black
- RAL-number = 9011

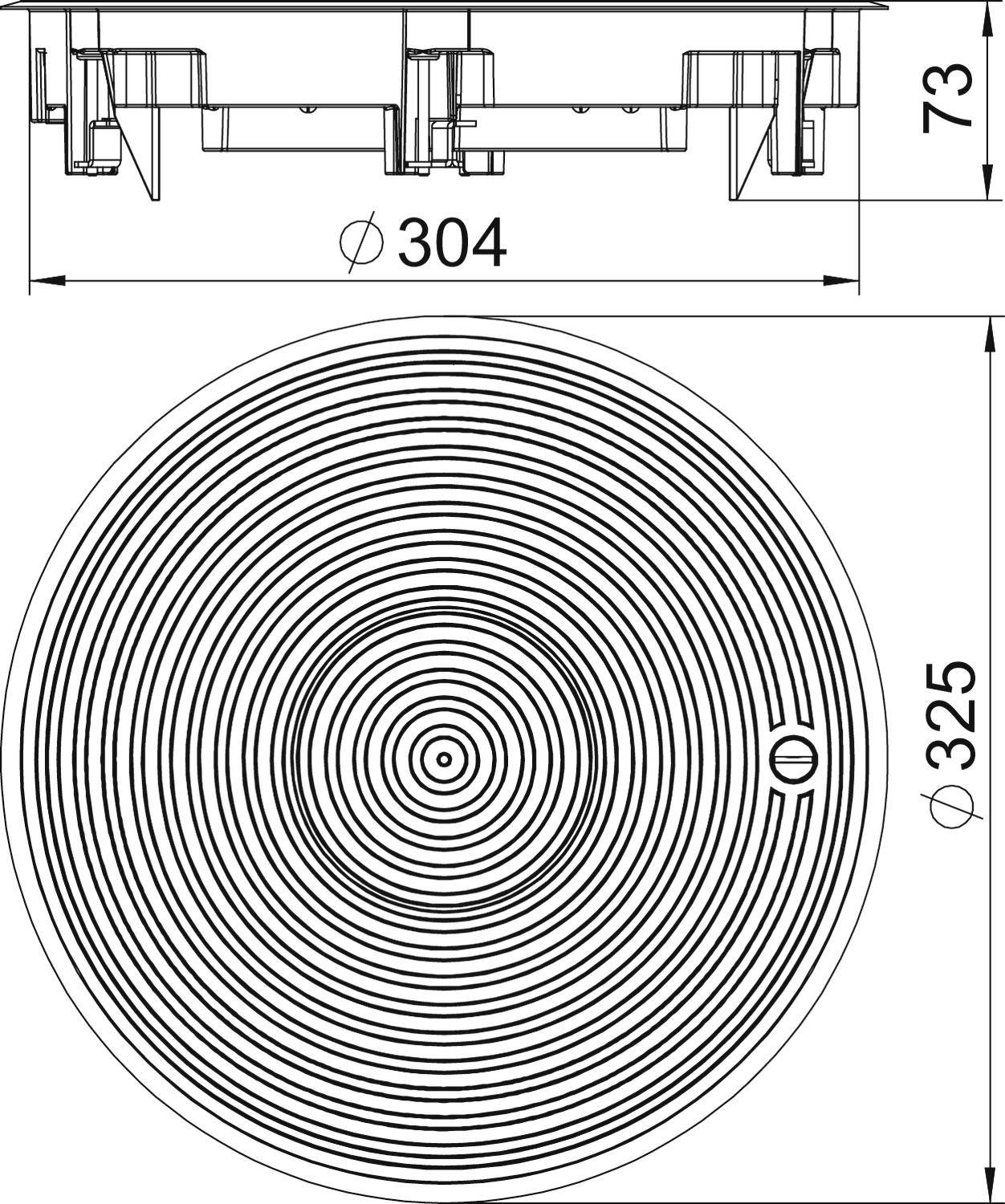

- Outer diameter = 325 mm
- Installation diameter = 304 mm
- Product type
Inset
- (Ø)
325 mm
- Height
80 mm
- Dim
(Ø x H) 325 mm x 80 mm
- Factory colour
Black
- Outside Ø
325 mm
- Recess diameter
304 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1958010 OBO Bettermann GRAF9-2 U 9011 Inset
Description

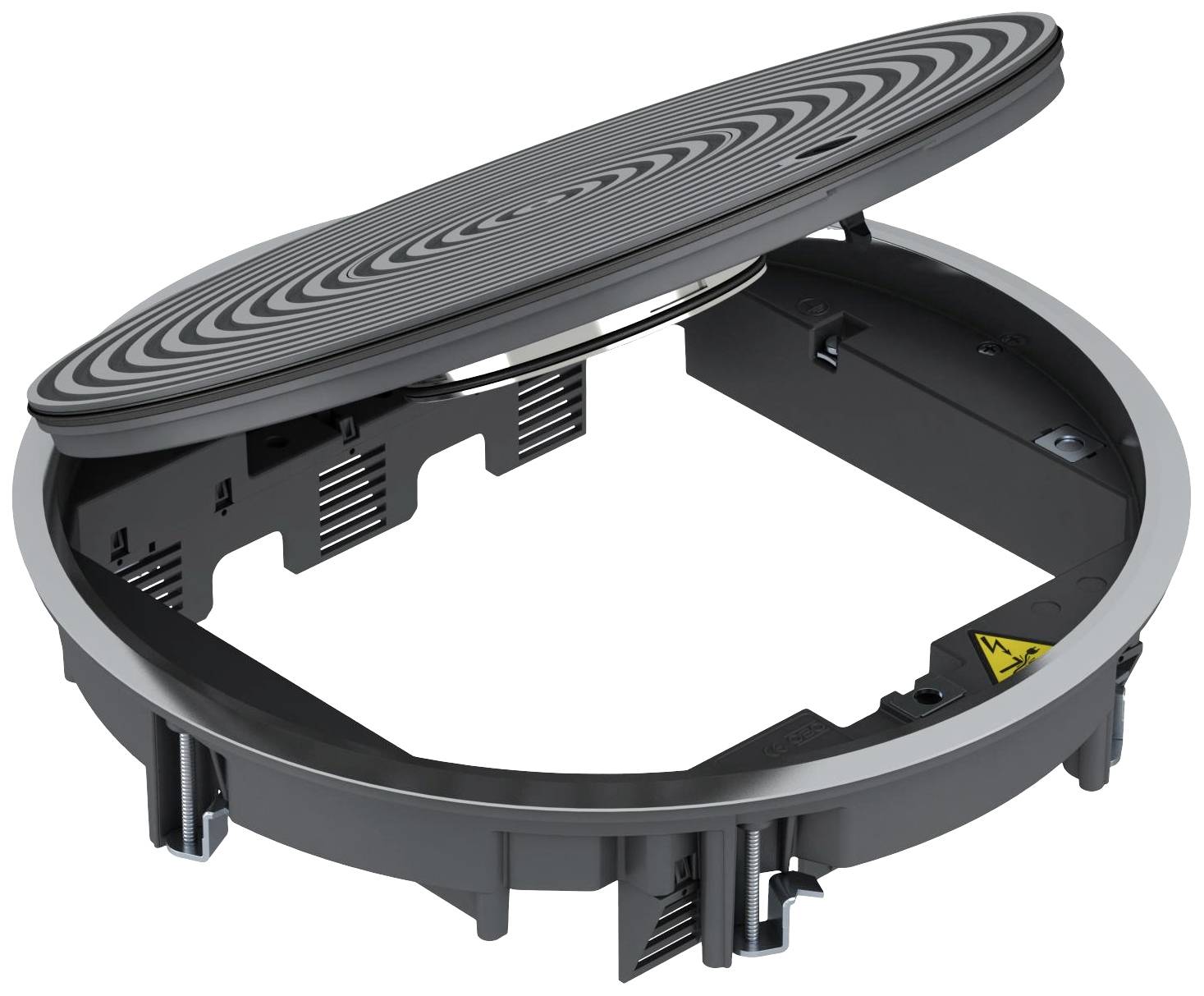

Insert round with flooring protection framework for the installation of installation devices for universal use in channel systems, double and hollow floor with wet neat flooring. Hinged lid with concentric rings structured. Metallic blank with fine surface structure, called recesses painted. Flooring protective frame and hinged lid made from aluminum die casting, tube made of die-cast zinc. The Minimum mounting depth is 80 mm when using device cups GB3 or MT 4 and 65 mm when using device cup MT45 V0.
