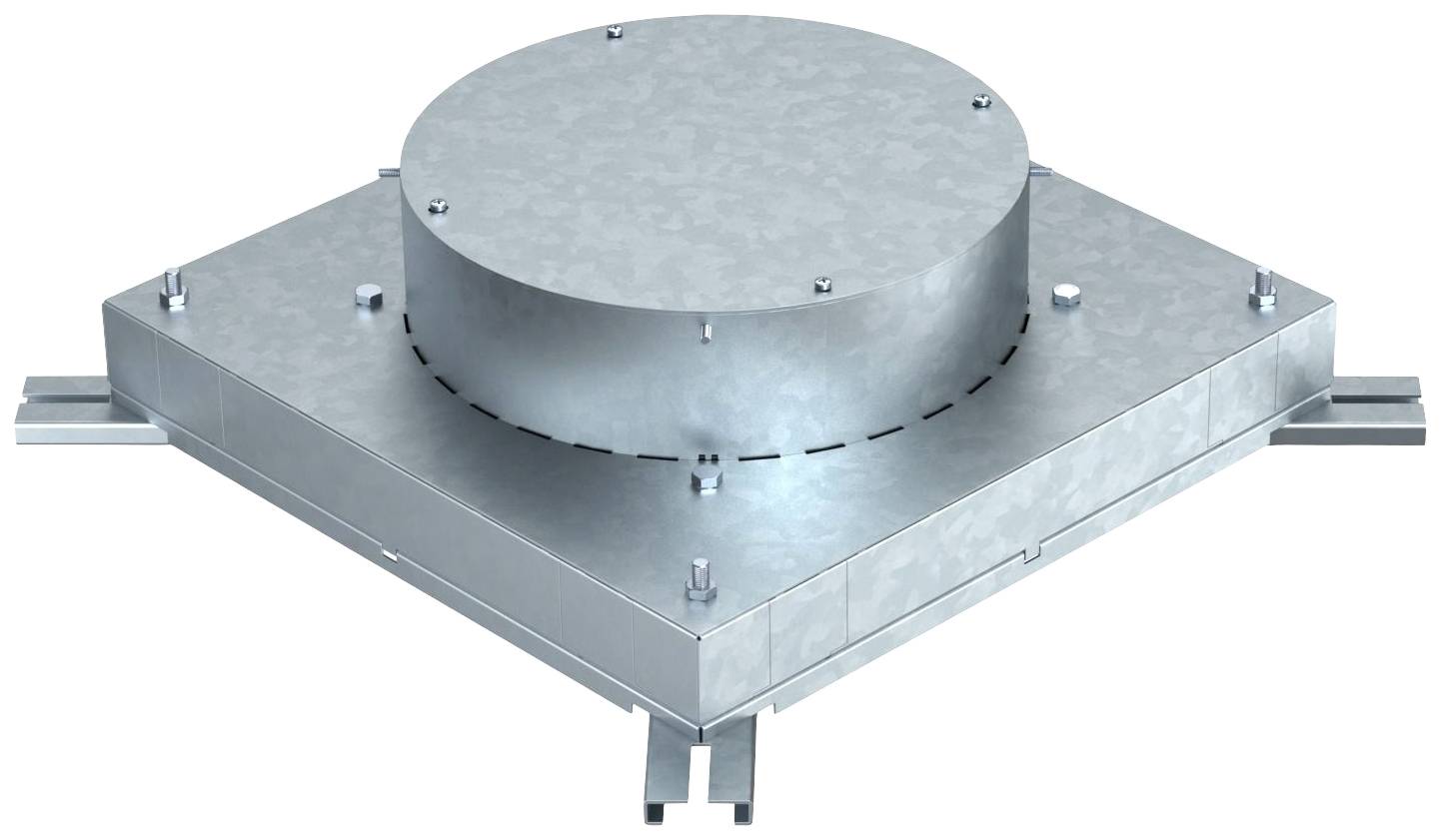

A square metal platform with a central, round, raised section. It has mounting screws at the corners.

A square metal platform with a central, round, raised section. It has mounting screws at the corners.

Technical drawing of a ventilation grille with dimensions Ø310 and 440 mm width, symbolising no bottle storage space.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Nominal size = 310 mm
Min. Screed height = 135 mm
Suitable for screed uberdeckten underground channel = Yes
Suitable for screed flush closed subsurface channel = No
Channel height = 38. .38 mm
Channel width = 250. .350 mm
Mounting hole for Aufflurtank = No
Mounting hole for installation unit = round
The number of in-built devices = 12
Material Side wall = Steel
Seal Installation Option = No
Decoupling option top part of the bottom part = No
Floor plate = Yes

Product type: Box

Height: 38 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 1964454 OBO Bettermann IBD 35038 R9 Box

Description

Im-Beton-socket for channel height 38 mm. Side walls prepared for channel widths 250 and 350 mm. With four adjustable recordings for levelling units. The built-in sound body can be used for balancing screed work up to a maximum of 65 mm can be adjusted.

This text is machine translated.
