OBO Bettermann MS4141P3000FS 1122910 Rail 3 m 3 m
EAN:
Part number:
Item no:

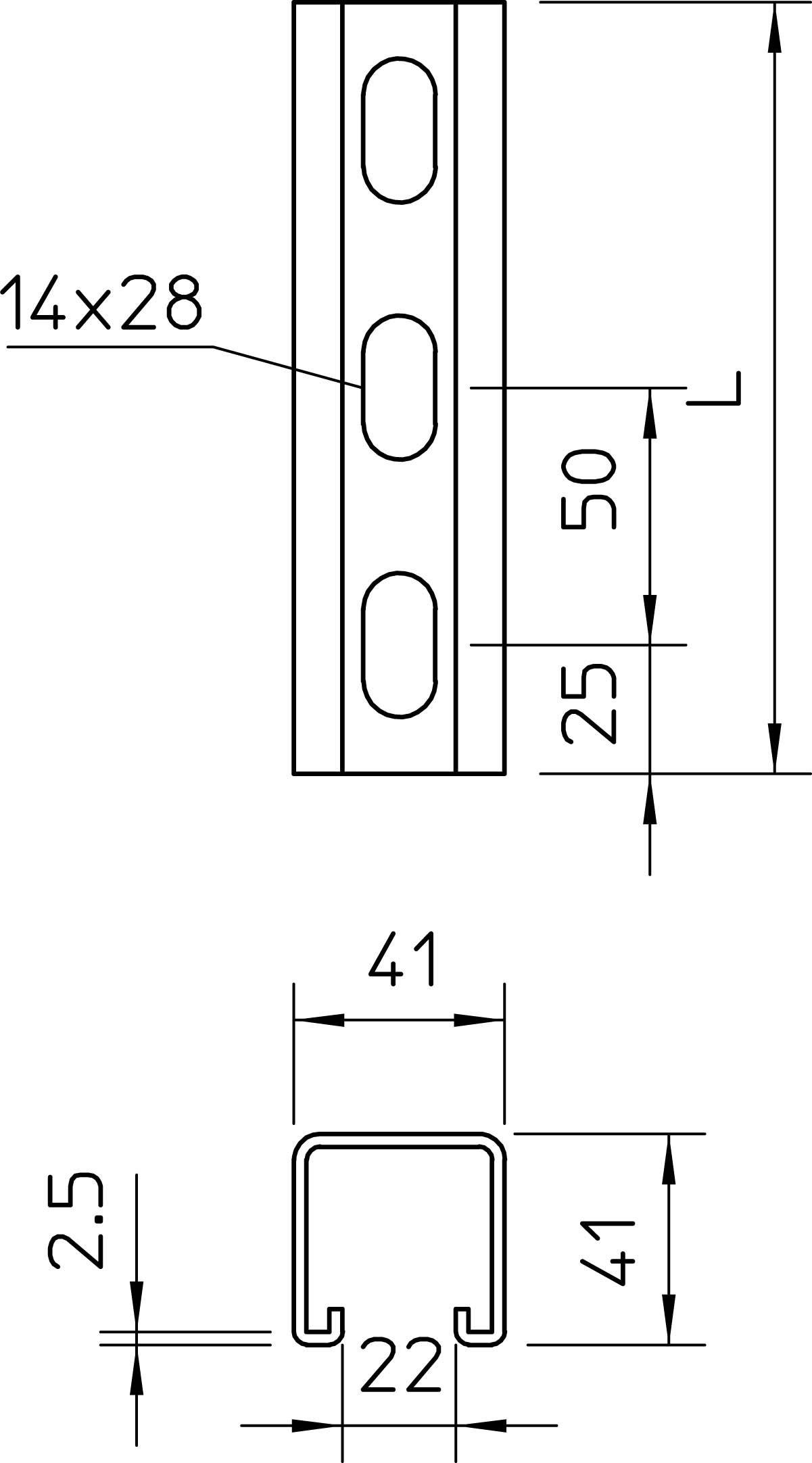

Technical specifications
- Length: 3000 mm
- Width 41 mm
- Height: 41 mm
- Slot width 22 mm
- Material thickness 2.5 mm
- Profile: C-Profile
- Design: Simple profile
- Type of punching: Back perforated
- Hole width 14 mm
- With teeth: Yes
- Cancelled: No.
- Surface moment of inertia ly: 6.05 cm4
- Surface moment of inertia LZ: 9.01 cm4
- Resistance torque Wy: 2.91 cc
- Resistance torque WZ: 4.4 cm3
- Suitable for functional preservation: No.
- Material: Steel
- Material quality: Other
- Surface protection: Zinc-plated strip
- Weight: 2.48 kg
- Product type
Rail
- Type
Simple profile
- Content
3 m
- Dim
(L x W x H) 3 m x 41.00 mm x 41.00 mm
- Length
3 m
- Width
41.00 mm
- Height
41.00 mm
- Weight
2.48 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3406366 OBO Bettermann MS4141P3000FS 1122910 Rail 3 m 3 m
Description

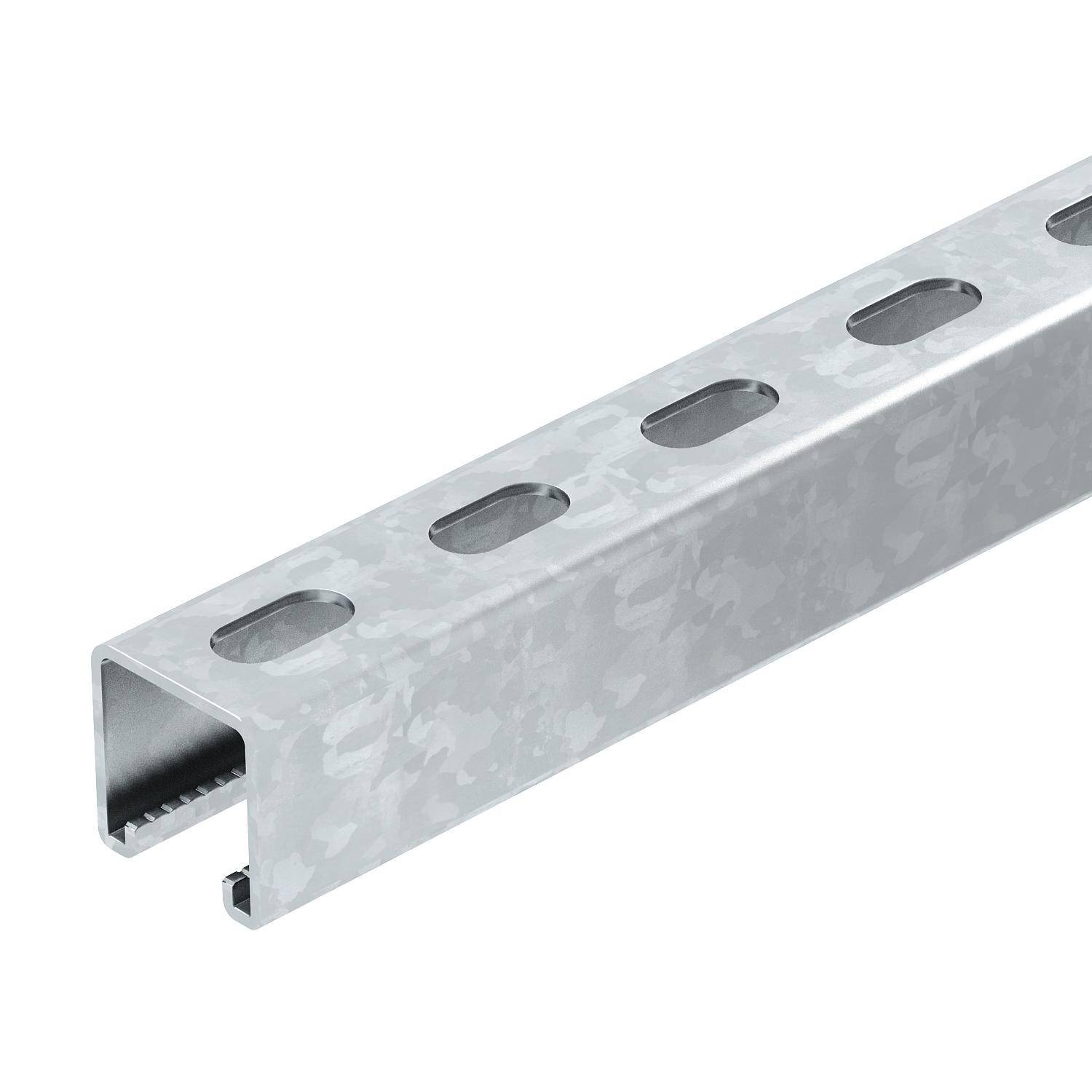

Heavy C-section rail for individual installation of carry constructions for e.g. Cable channels or as console for control cabinets. Can also be used for laying cables, in conjunction with U-base clamps.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x 3 m Profile rail
