Buy OBO Bettermann MT R2 1-1 Box

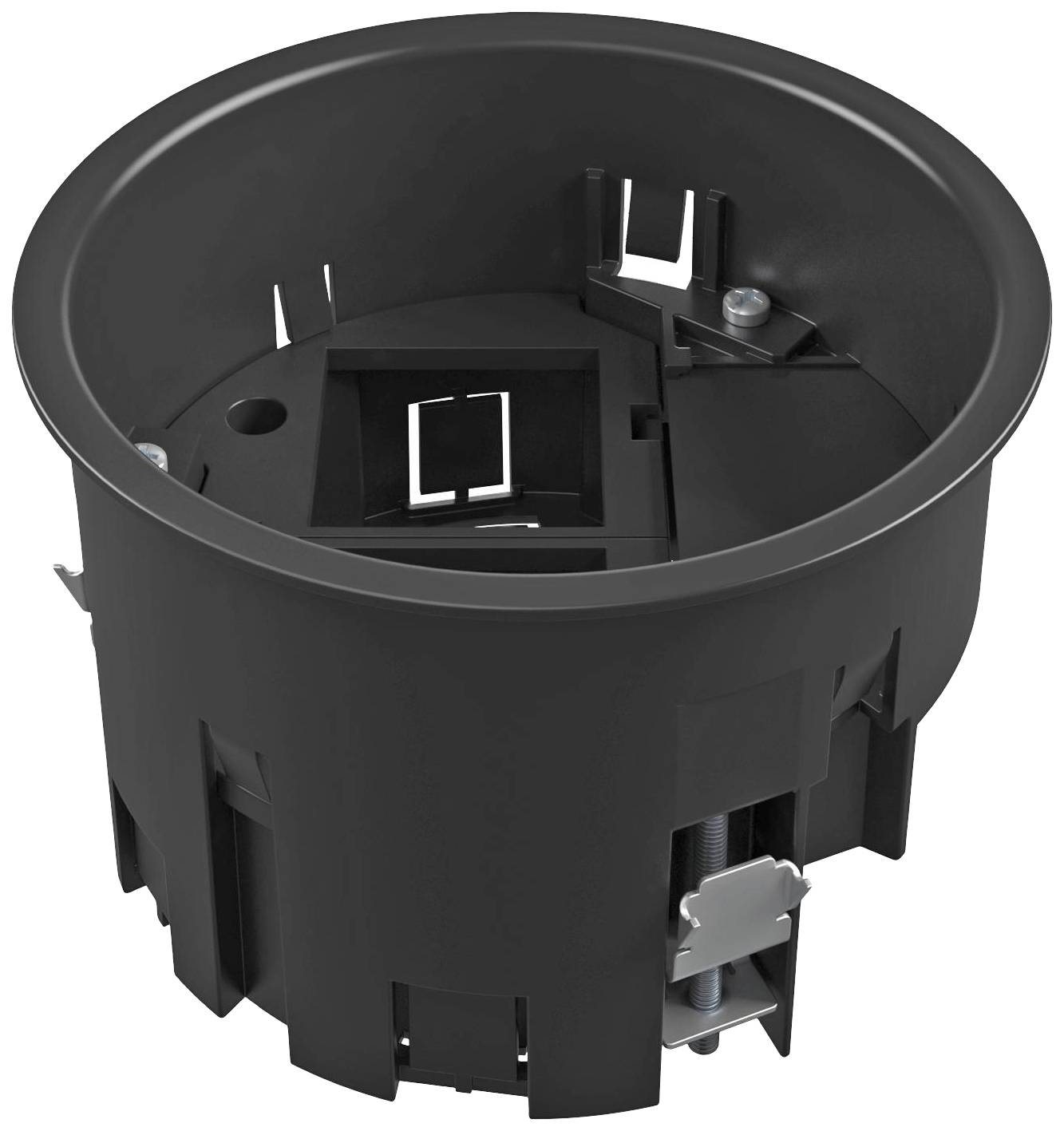

A round, black recessed box for mounting in cavity walls, showing fixing elements and openings for the installation of electrical components.

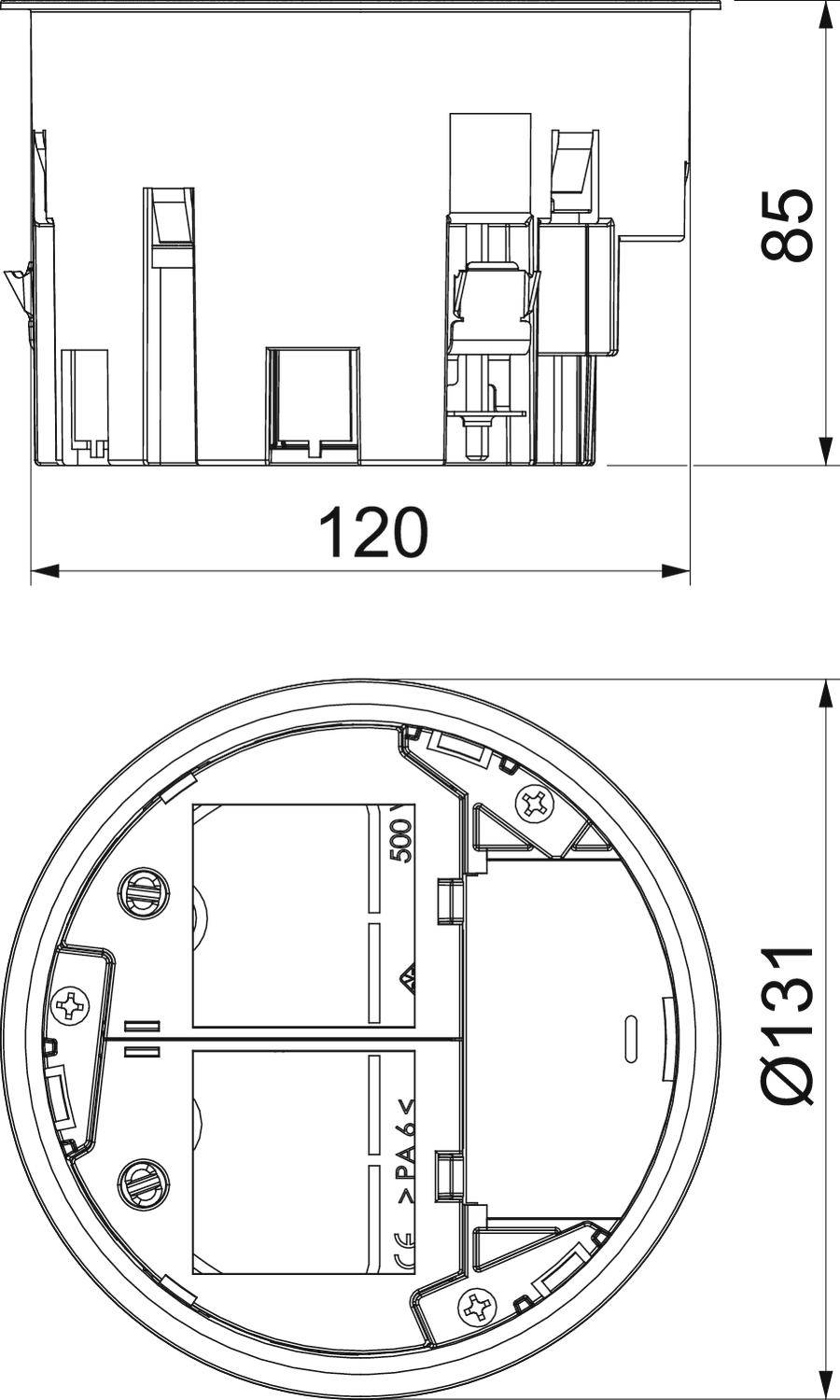

Technical drawing of a circular electrical component with a diameter of 131 mm and a height of 85 mm. Shows internal structure.

1/2

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Design: Installation socket
Lid type: Round
Outer diameter: 131 mm
Floor covering protection frame: no.
Installation diameter 122 mm
Colour, black
Suitable for raised floor installation: Yes
Suitable for hollow floor installation: Yes
Suitable for wet care: no.
Suitable for underfloor duct: no.
Min Installation depth 85 mm
With floor covering recess: no.
Material: Polyamide (PA)

Product type: Box

(Ø): 131 mm

Height: 85 mm

Dim: (Ø x H) 131 mm x 85 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2296285 OBO Bettermann MT R2 1-1 Box

Description

Installation socket for GES R2 floor socket for mounting in UD GES R2 floor socket and in raised floor panels. A partition and two cover plates for the installation of Modul45 individual devices are included in the delivery. Up to two modular data sockets (keystones) can be installed with an optional mounting plate.

This text is machine translated.
