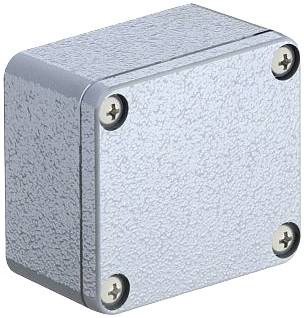

OBO Bettermann Mx 060503 SGR Casing 58 x 36 x 64 Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Product type
Casing
Material
Aluminium
IP rating
IP66
Width
58 mm
Height
36 mm
Show alternatives
Sales and shipping:
Technical specifications
- RAL-number: 7035
- Growing possibility: yes
- Surface: powder-coated
- With mounting plate: no
- Suitable for lightning protection: no
- Product type
Casing
- Material
Aluminium
IP66
- Width
58 mm
- Height
36 mm
- Content
1 pc(s)
- Type
Mx 060503 SGR
- Dim

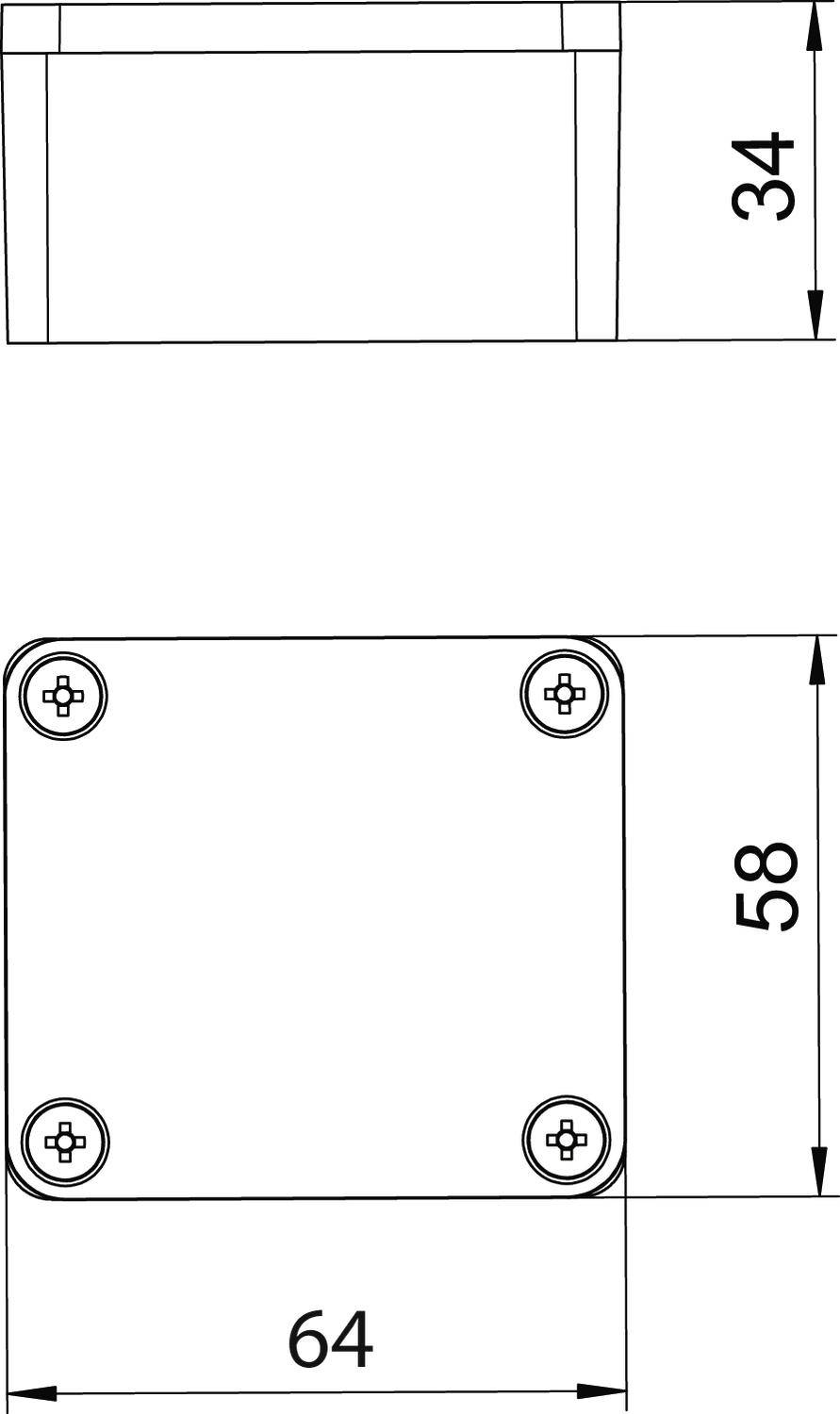

(W x H x D) 58 x 36 x 64 mm
- Manufacturer part #
2011304
- Depth
64 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1956666 OBO Bettermann Mx 060503 SGR Casing 58 x 36 x 64 Aluminium 1 pc(s)
Description
Robust aluminum housing for mechanical engineering and automation technology. With their outstanding mechanical and thermal properties is the mx-serie from OBO for extreme demands in different areas. Therefore also ideal for use in the industry, the harbor and marine engineering as well as in the agriculture. They protect the electrical installation against high degree of stress. Extreme cold or heat resistance are the products as well as vandalism and the effect of the impact on streets, railways or in tunnels. The aluminum housings are each with cover, stainless steel screws, seal and 2 or 4 grounding screws
