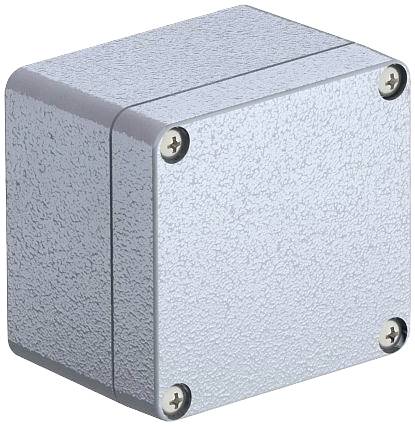

OBO Bettermann Mx 080705 SGR Casing 75 x 57 x 80 Aluminium 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Casing
Material
Aluminium
IP rating
IP66
Width
75 mm
Technical specifications
- RAL-number: 7035
- Growing possibility: yes
- Surface: other
- With mounting plate: no
- Suitable for lightning protection: no
- Packaging type
Piece
- Product type
Casing
- Material
Aluminium
IP66
- Factory colour
Grey
- Length
75 mm
- Width
75 mm
- Height (min.)
80 mm
- Height
57 mm

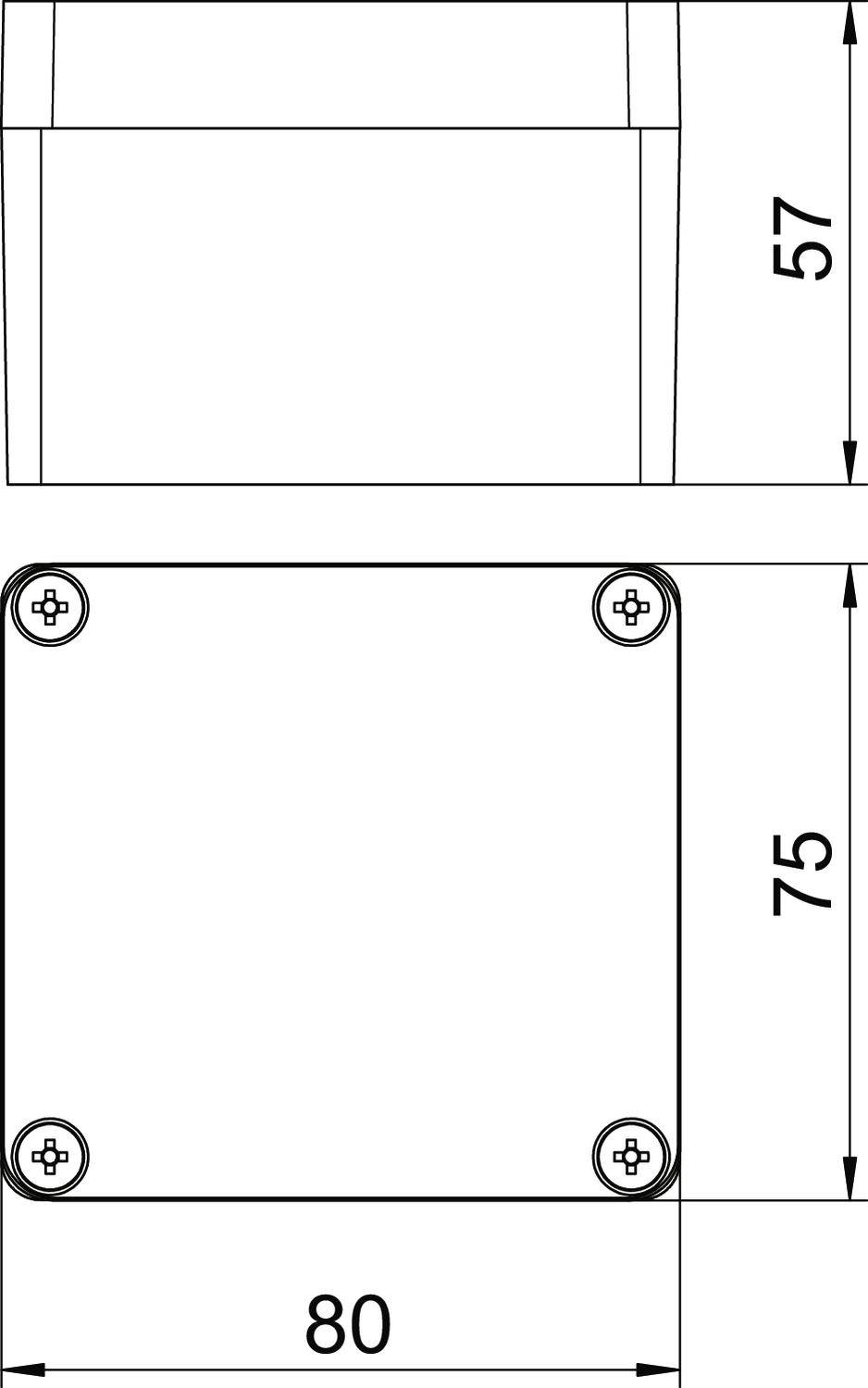

- Dimensions
75 x 57 x 80 mm
- Content
1 pc(s)
- Type
Mx 080705 SGR
- Dim
(L x W x H) 75 x 75 x 57 mm
- Manufacturer part #
2011308
- Depth
80 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1959364 OBO Bettermann Mx 080705 SGR Casing 75 x 57 x 80 Aluminium 1 pc(s)
Description
Robust aluminum housing for mechanical engineering and automation technology. With their outstanding mechanical and thermal properties is the mx-serie from OBO for extreme demands in different areas. Therefore also ideal for use in the industry, the harbor and marine engineering as well as in the agriculture. They protect the electrical installation against high degree of stress. Extreme cold or heat resistance are the products as well as vandalism and the effect of the impact on streets, railways or in tunnels. The aluminum housings are blasted and are each with cover, stainless steel screws, seal and 2 or 4 earthing screws supplied.
