Installation Instructions for a Metal Ventilation System with Square Frame, Ventilation Flap, Mounting Brackets, and Connecting Components.

Installation Instructions for a Metal Ventilation System with Square Frame, Ventilation Flap, Mounting Brackets, and Connecting Components.

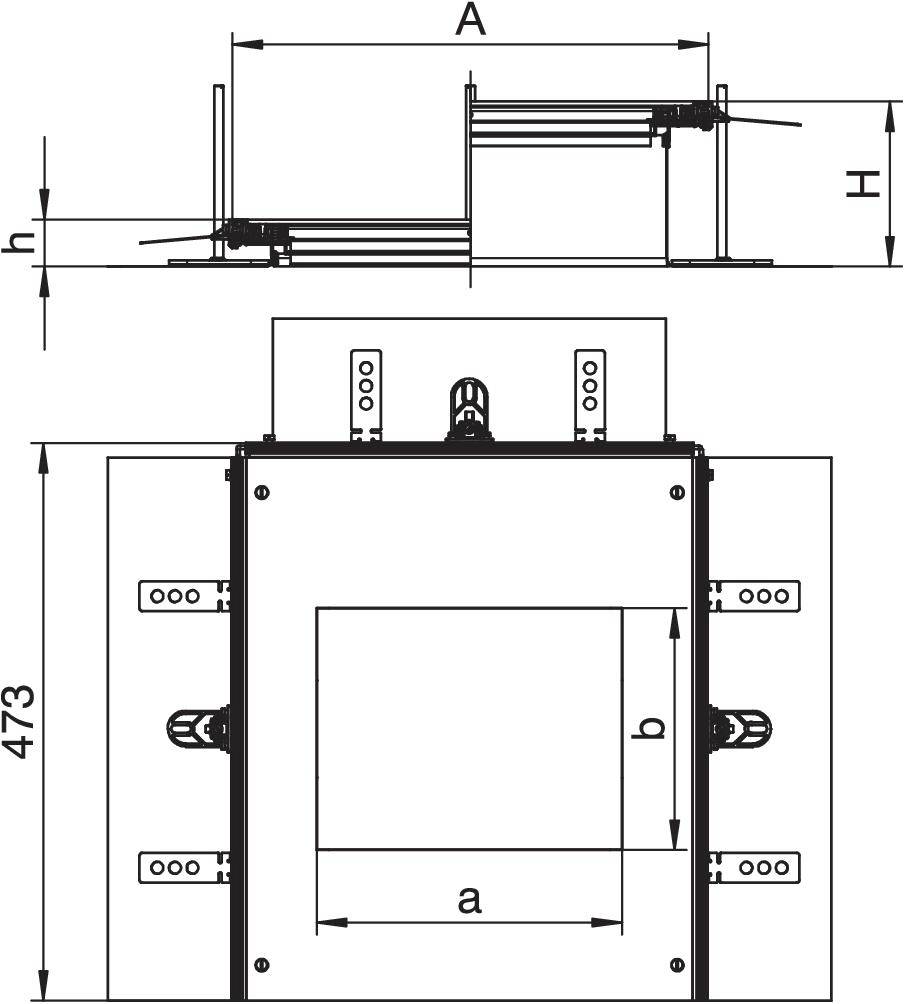

Technical drawing of an electrical component with dimensions: width 'a', height 'b', total width 473 mm. Top view and side view illustrated.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Width = 400 mm
Length = 460 mm
Min. Screed height = 40 mm
Levelling range = 40. .240 mm
Cover Mounting latch = No
Cover Installation opening = Yes
With partition = No
Bottom tray = No
Material Side wall/floor = Steel
Surface side wall/floor = other
Material of the cover = Steel
Material thickness cover = 4 mm
Decoupling option lower part of the body of the building = Yes

Product type: Expansion

Height: 240 mm

Length: 460 mm

Width: 400 mm

Dim: (L x W x H) 460 x 400 x 240 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 1960724 OBO Bettermann OKA-G A 40240 6 Expansion

Description

Assembly-finished channel mounting unit with a device mounted cover for mounting a built-in unit of the nominal size 6. Side walls made from flexible metal fabric.

This text is machine translated.
