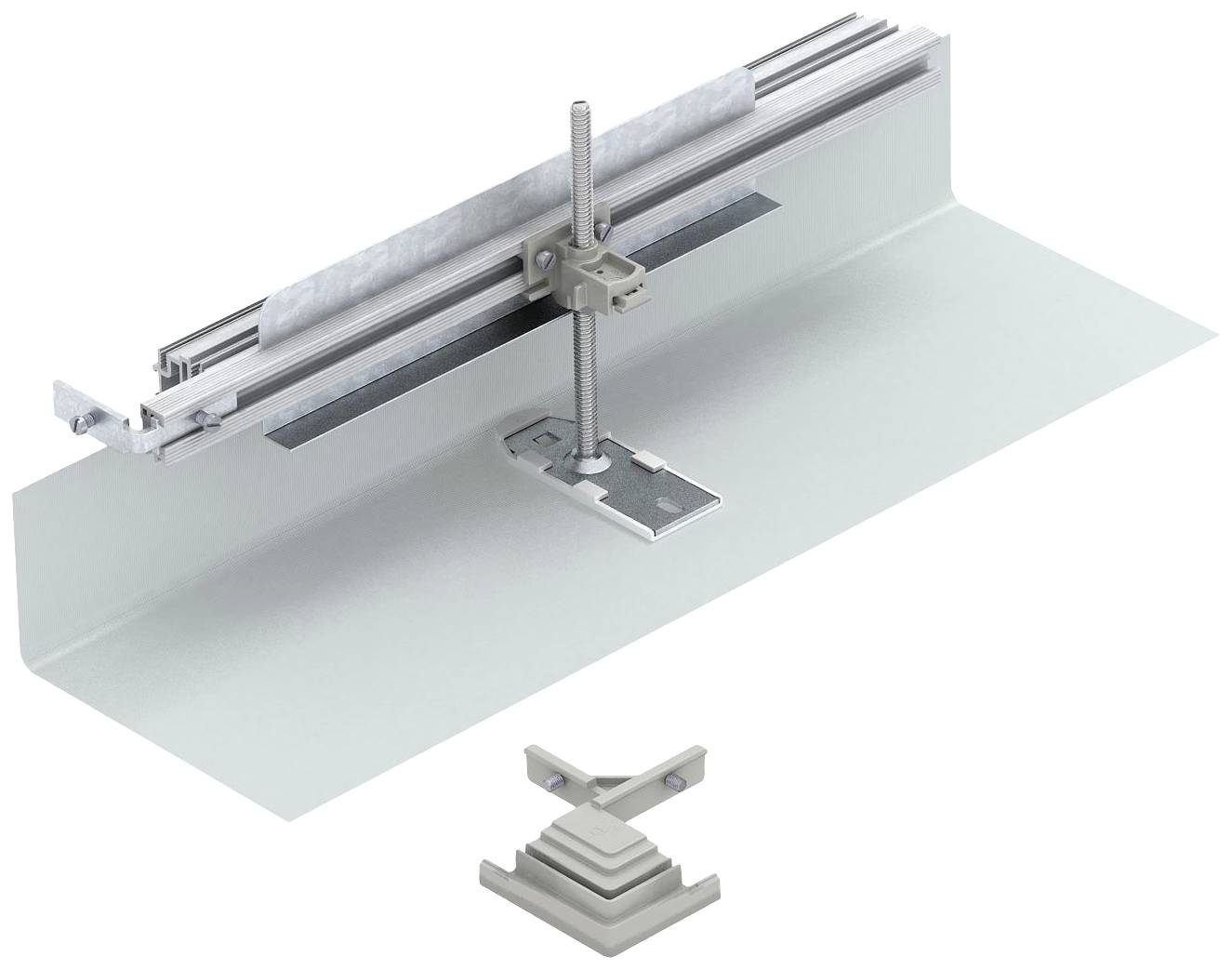

Metal mounting bracket with a threaded rod in the centre, secured to a flat metal rail, with plastic elements underneath; technical component.

Metal mounting bracket with a threaded rod in the centre, secured to a flat metal rail, with plastic elements underneath; technical component.

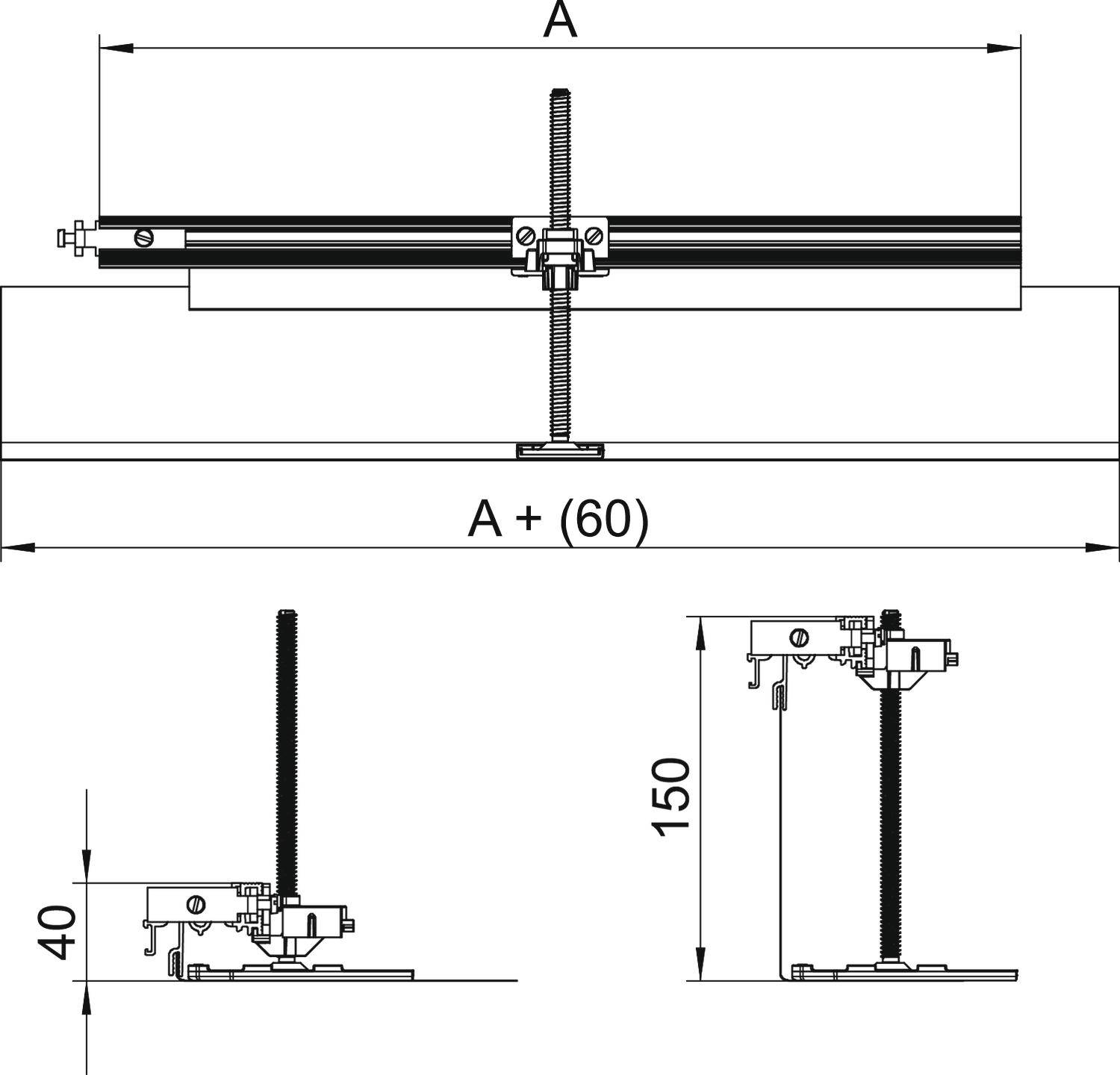

Dimensional drawing of a mechanical device with two axes 'A' and 'A + (60)'. Contains height specifications of 40 and 150 mm.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Width = 300 mm
Min. Screed height = 40 mm
Levelling Range = 0..110 mm
Cover Mounting latch = No
Cover Installation opening = No
With partition = No
Bottom tray = No
Material Side wall/floor = Steel
Surface side wall/floor = other
Decoupling option lower part of the body of the building = No

Product type: Splitter

Height: 40 mm

Width: 300 mm

Dim: (W x H) 300 mm x 40 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 1958244 OBO Bettermann OKA-G30040150FBL Splitter

Description

For the on-site production of kanalabzweiges as a 90° angle to the left. With all the necessary for mounting parts. Suitable for the channel systems OKA-G and OKA-W.

This text is machine translated.
