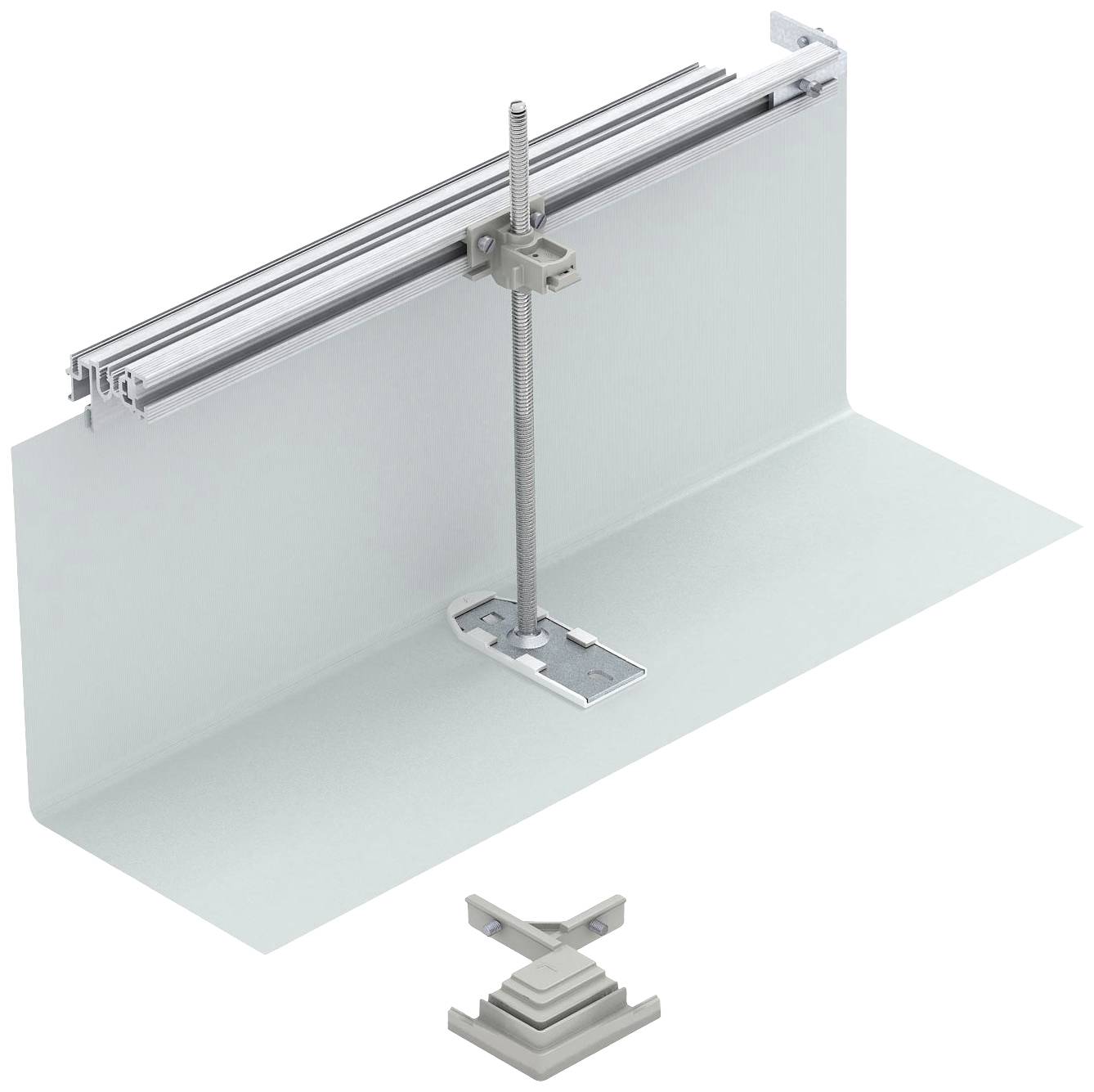

A mounting system with an adjustable screw and rail, against a white background, with a small base for stabilising materials.

A mounting system with an adjustable screw and rail, against a white background, with a small base for stabilising materials.

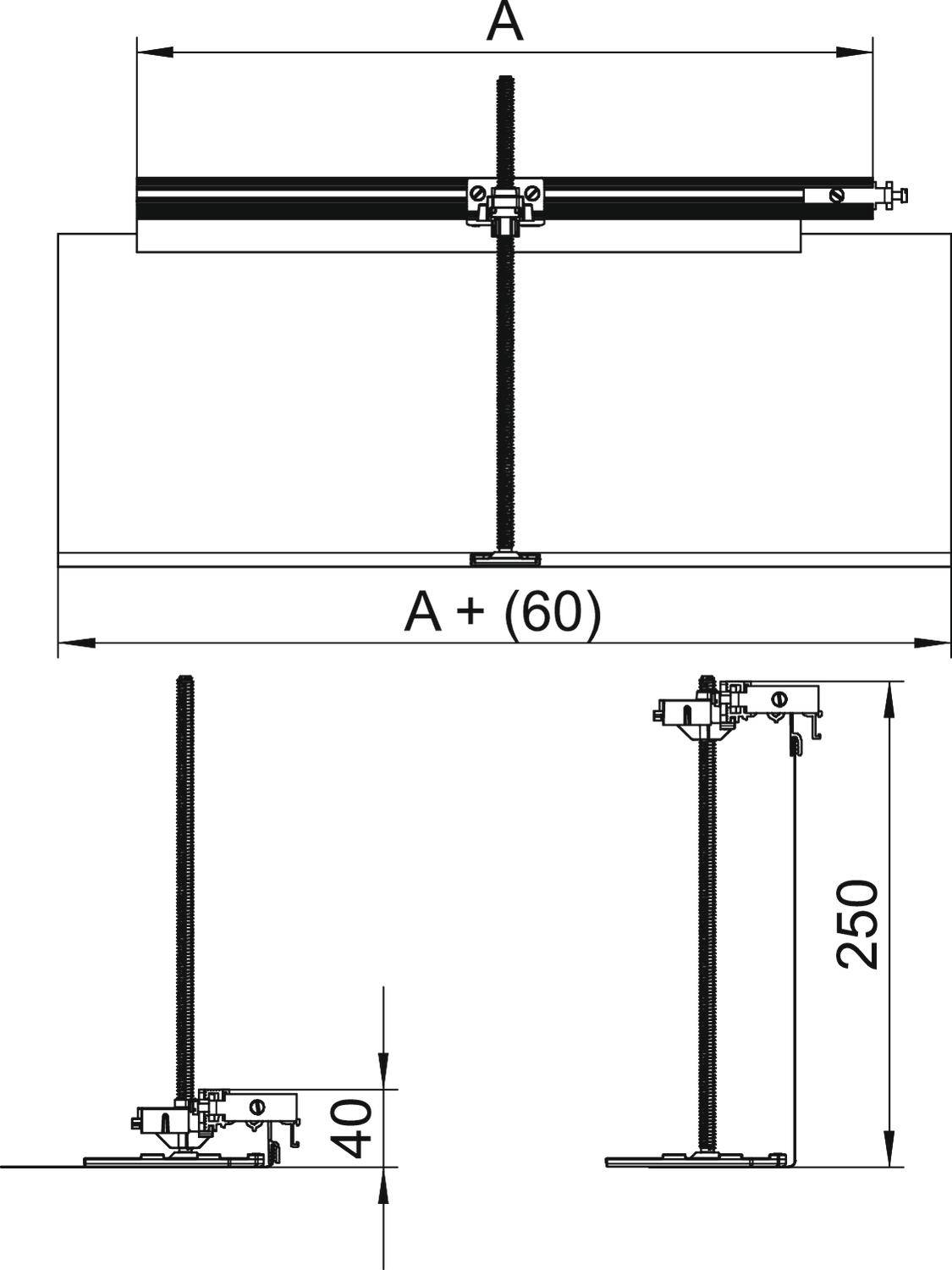

'Diagram of a vertical holder with dimensions: Total width A+60, height 250, ground clearance 40. Shows mounting details.'

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Width = 400 mm
Min. Screed height = 40 mm
Levelling Range = 0..200 mm
Cover Mounting latch = No
Installation opening = without
Cover Installation opening = No
With partition = No
Bottom tray = No
Material Side wall/floor = Steel
Surface side wall/floor = other
Decoupling option lower part of the body of the building = No

Product type: Splitter

Height: 40 mm

Width: 400 mm

Dim: (W x H) 400 mm x 40 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 1964742 OBO Bettermann OKA-G40040240FBR Splitter

Description

For the on-site production of kanalabzweiges as a 90° angle to the right. With all the necessary for mounting parts. Suitable for the channel systems OKA-G and OKA-W.

This text is machine translated.
