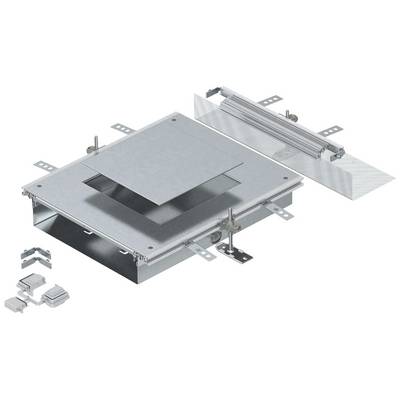

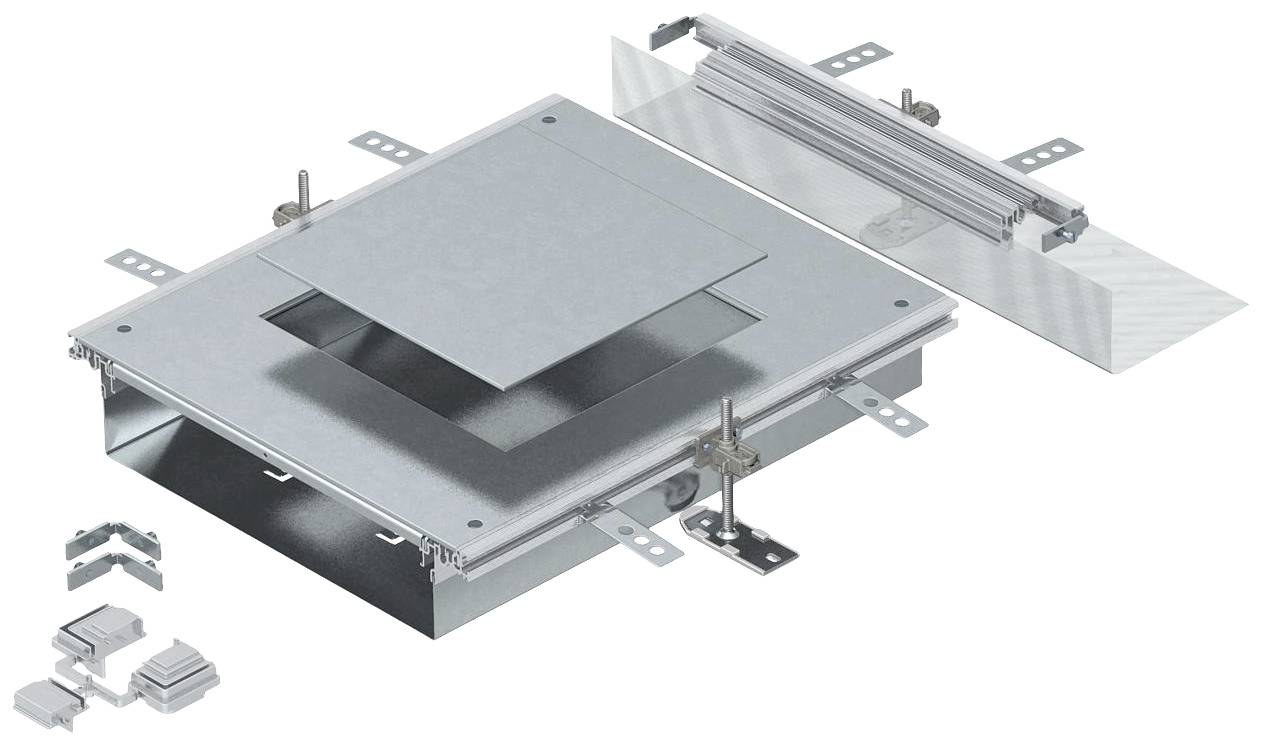

OBO Bettermann OKA-W A 4030 9 Expansion
EAN:
Part number:
Item no:
Technical specifications
- Width = 400 mm
- Length = 473 mm
- Min. Screed height = 40 mm
- Levelling range = 40..70 mm
- Cover Mounting latch = No
- Installation opening = square
- Cover Installation opening = Yes
- Number of the installation units = 1
- With partition = No
- Max. Number of trains = 3
- Bottom tray = Yes
- Material Side wall/floor = Steel
- Surface side wall/floor = other
- Material thickness cover = 4 mm
- Decoupling option lower part of the body of the building = No
- Product type
Expansion
- Height
40 mm
- Length
473 mm
- Width
400 mm

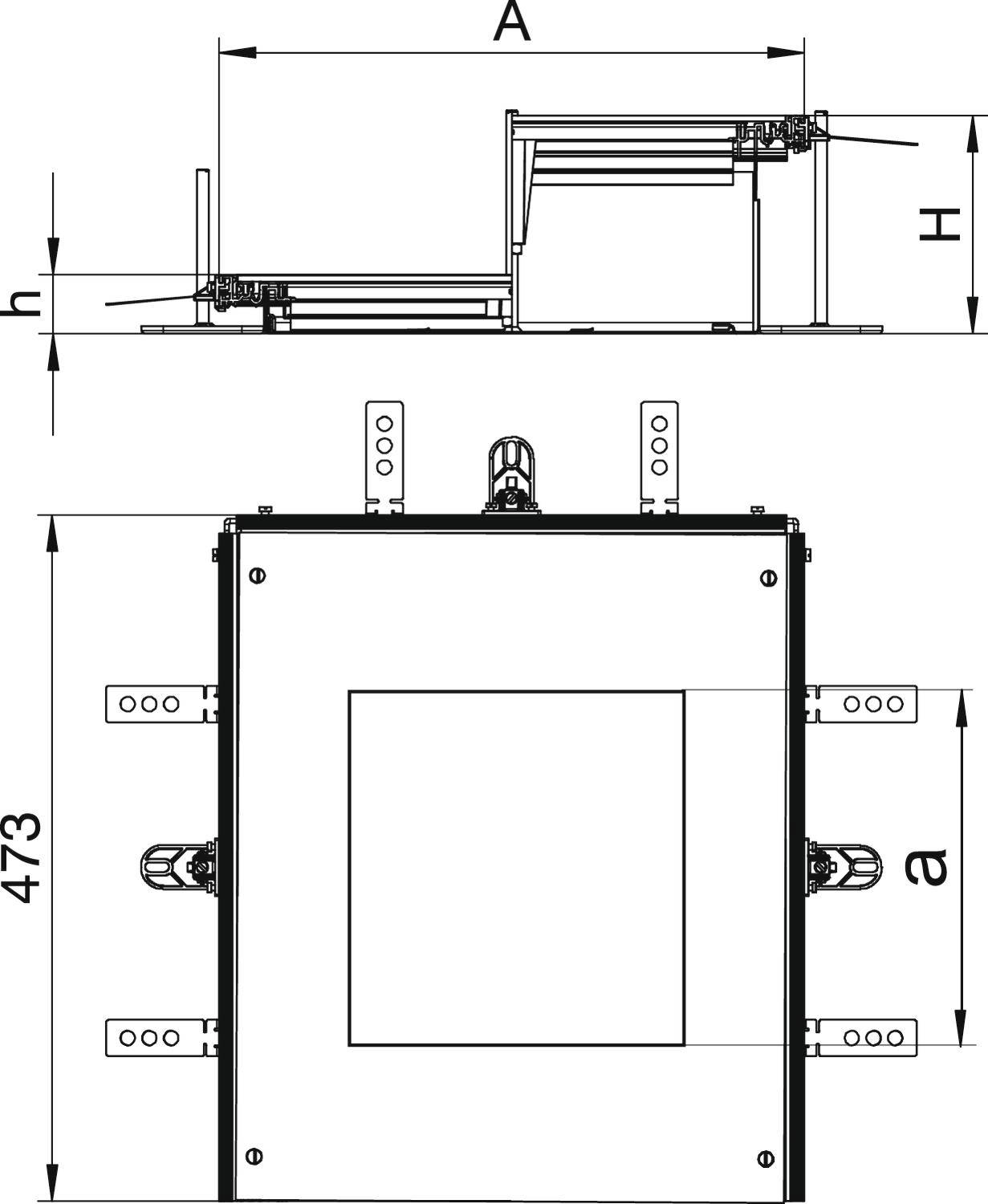

- Dim
(L x W x H) 473 x 400 x 40 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1962296 OBO Bettermann OKA-W A 4030 9 Expansion
Description
Assembly-finished channel mounting unit with a device mounted cover for mounting of an installation unit of the nominal size 9. Design with closed bottom panel.
