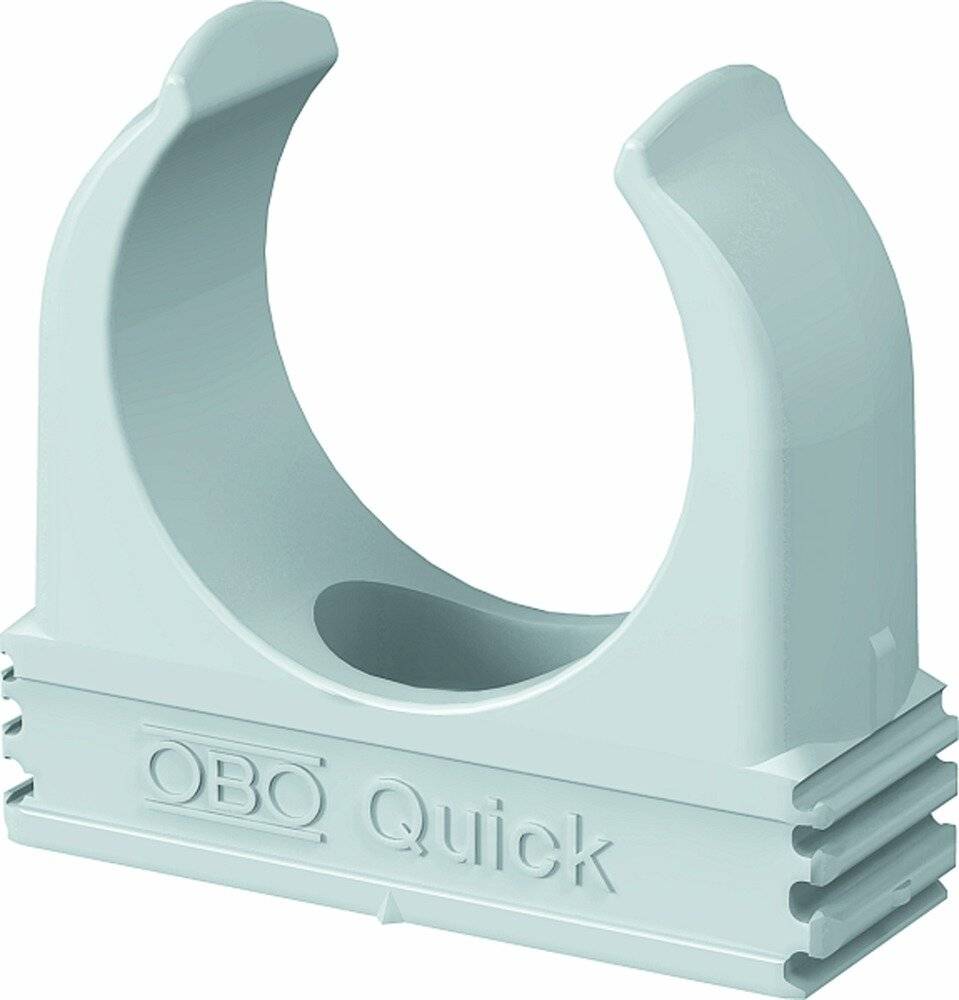

OBO Bettermann quick-clip 2955/M25 light GRAY
EAN:
Part number:
Item no:
Highlights & Details
OBO Bettermann Vertr OBO Bettermann vr quick clamp LGR 2955 M25
- 25 mm, closed: No, suitable for protective hoses: Yes, plastic, other, stackable: Yes, 1, Screw hole, with insert: no, light-gray, halogen-free: yes, UV-resistant: no
Technical specifications
- Closed: No , Material: Plastic , Material quality: Other , Modular: Yes , Max. Number of tubes: 1 , Mounting type: Screw hole , With insert: No , Colour: Grey , Halogen-free: Yes , UV-resistant: No.
- Product type
Pipe clamp
- Content
1 pc(s)
- Material
Plastic
- Clamping range
16 up to 32 mm
- Thread
M6
- Material properties
halogen-free
- (Ø)
25 mm
- Range (max.)
32 mm
- Clamping range (min.)
16 mm
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3736179 OBO Bettermann quick-clip 2955/M25 light GRAY
Description
Surface-mounting clamp for accommodating metric steel armored conduits, light and heavy insulation pipes as well as electrical installation pipes Quick-Pipe. Universal fixing possibilities at wall and ceiling in the interior and protected external area. With long hole for lateral alignment when mounting with wood screw or impact bolt. Tool-free pipe mounting Can also be joined together with OBO Multi-Quick or proQuick-Clamp. Size M16 - M32 can be screwed on to M6 thread. Mounting distance 50 - 60 cm, max. For extraction values F at 20° C room temperature see table.
This text is machine translated.
This text is machine translated.
Features
- Light gray
Scope of delivery
- Price refers to 1 pieces.
