OBO Bettermann RKFR2 4 SL2V2 25 Heavy-duty duct mount
EAN:
Part number:
Item no:
Technical specifications
- Nominal size = 214 mm
- Cassette height = 114 mm
- Flooring recess = 25 mm
- Floor Care = wet
- Design = round
- Suitable for = underground channel screed flush open
- Material = rust free steel
- The number of cable outlets = 1
- Design cable outlet = tube
- Material cable outlet = rust free steel
- Color Cable Outlet = nature
- Device support for recording device cups = Yes
- The number of in-built devices = 4
- Number of device cup = 2
- Product type
Heavy-duty duct mount
- (Ø)
214 mm
- Height
114 mm
- Dim

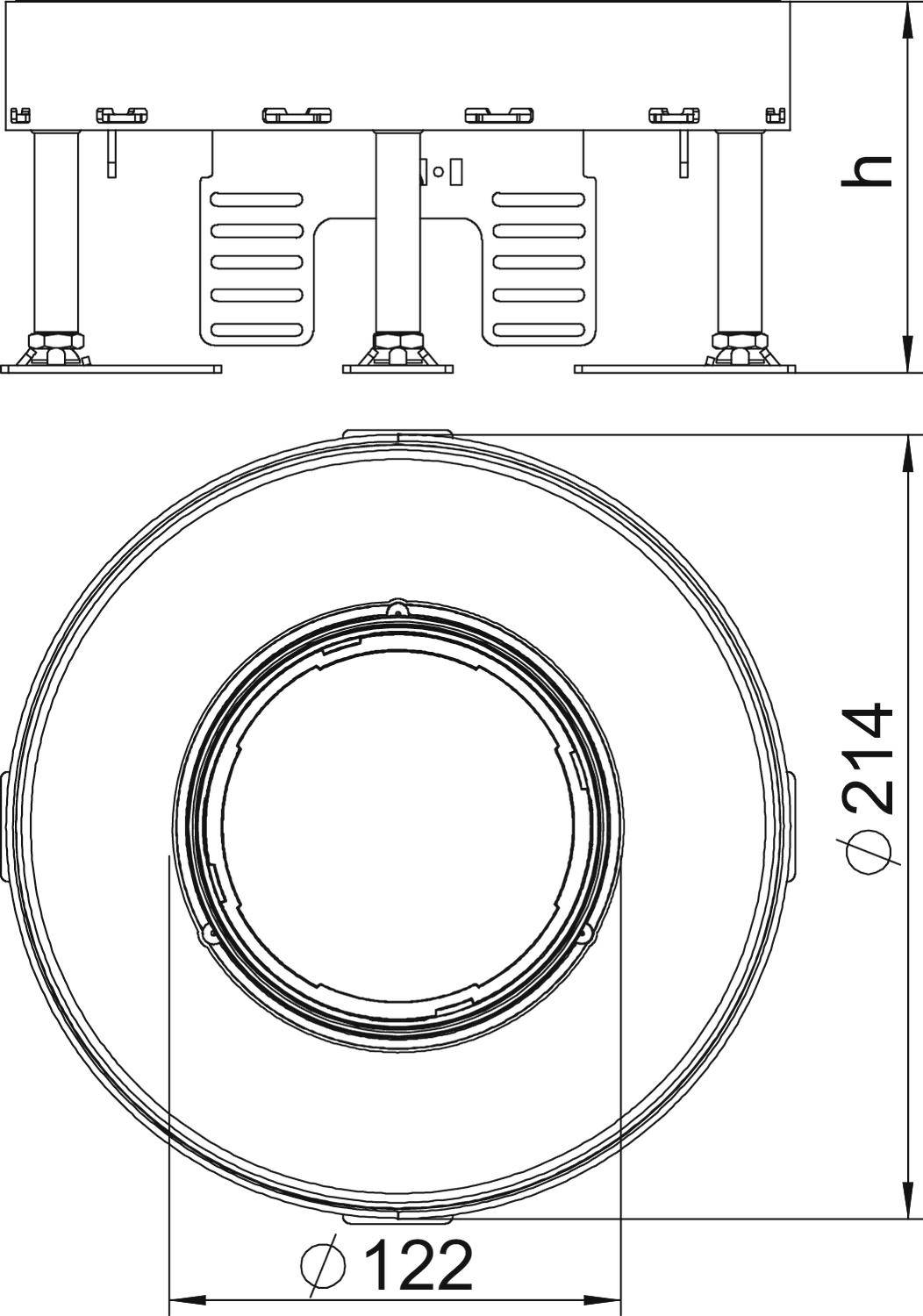

(Ø x H) 214 mm x 114 mm
- Suitable for
Underground channel screed flush open
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1963419 OBO Bettermann RKFR2 4 SL2V2 25 Heavy-duty duct mount
Description

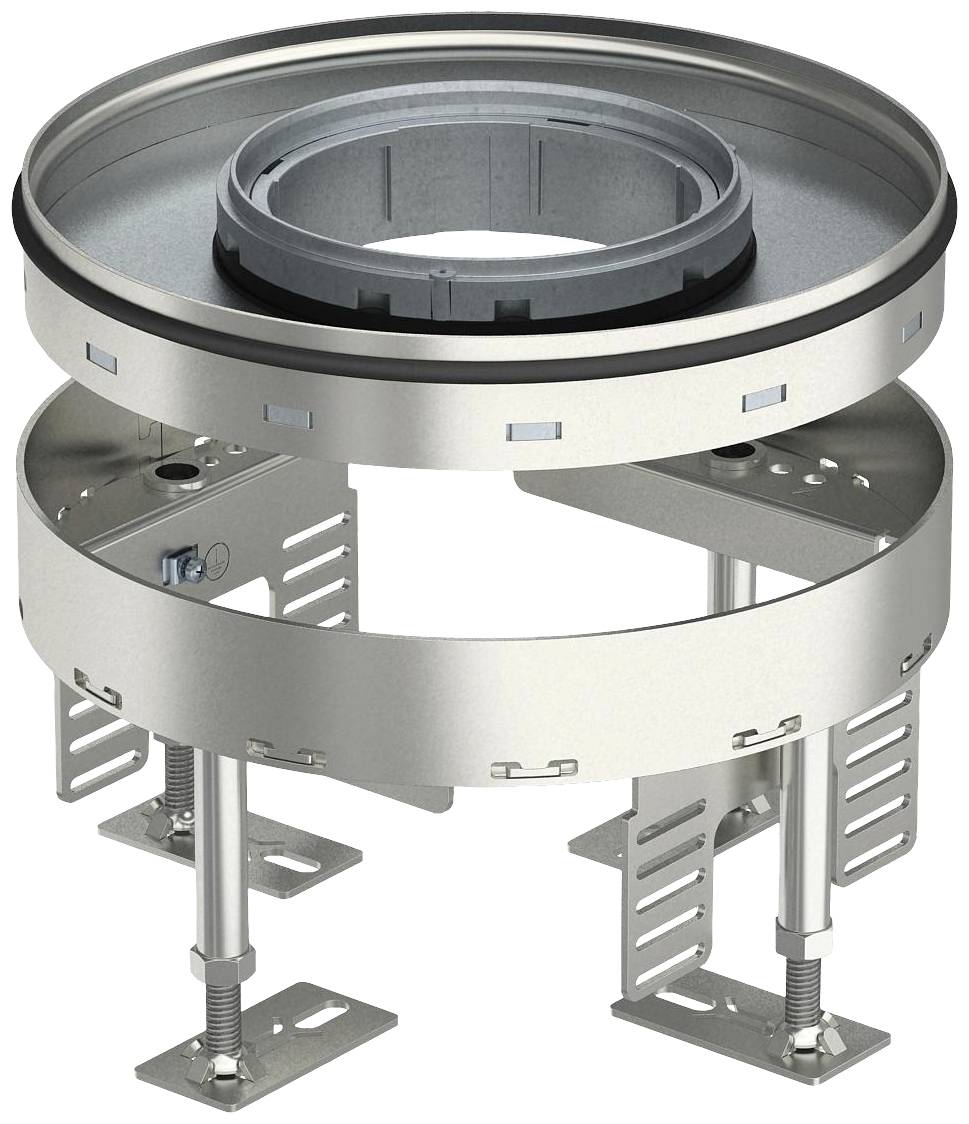

Round cassette heavy load for tube in nominal size R4 for the installation of installation devices in channel systems, double and hollow floors, load class 2 to 20 kN
