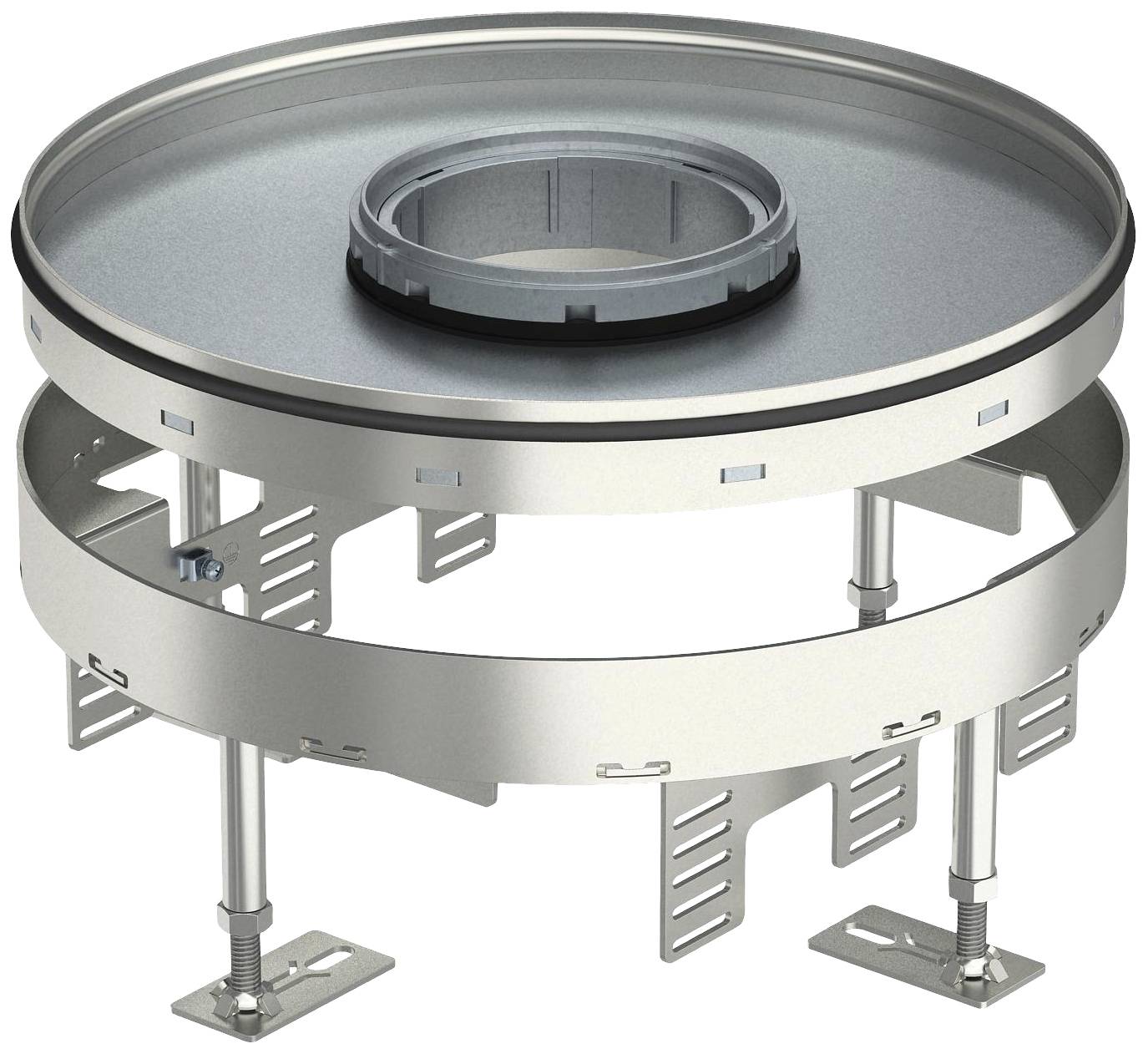

OBO Bettermann RKFR2 9 SL2V2 20 Heavy-duty duct mount
EAN:
Part number:
Item no:
Technical specifications
- Nominal size = 304 mm
- Cassette height = 105 mm
- Flooring recess = 20 mm
- Floor Care = wet
- Design = round
- Suitable for underfloor boxes structure =
- Material = rust free steel
- The number of cable outlets = 1
- Design cable outlet = tube
- Material cable outlet = rust free steel
- Color Cable Outlet = nature
- Device support for recording device cups = Yes
- The number of in-built devices = 9
- Number of device cup = 3
- Product type
Heavy-duty duct mount
- (Ø)
304 mm
- Height
105 mm
- Dim

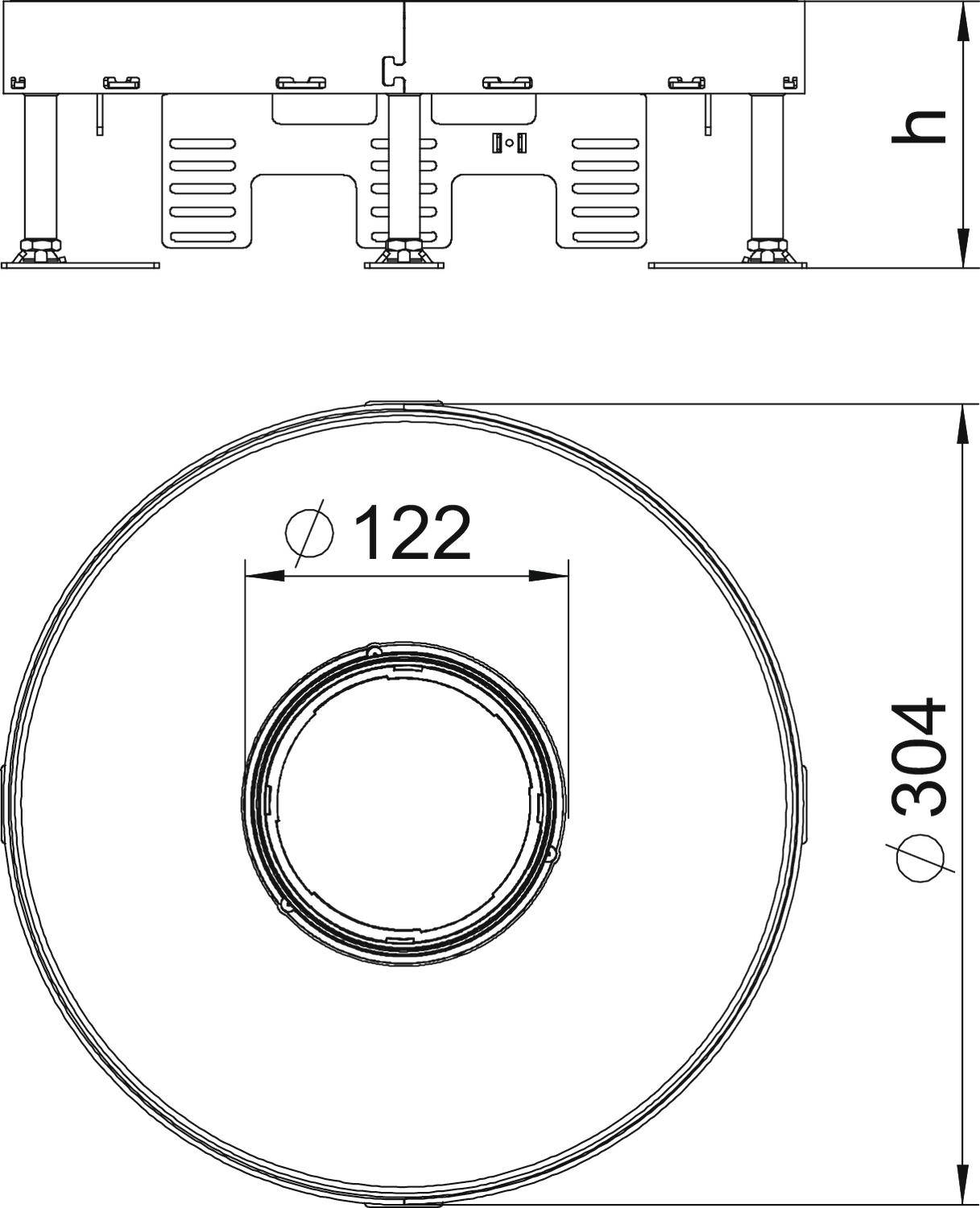

(Ø x H) 304 mm x 105 mm
- Suitable for
Underfloor boxes structure
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960701 OBO Bettermann RKFR2 9 SL2V2 20 Heavy-duty duct mount
Description
Round cassette heavy load for tube in nominal size R9 for the installation of installation devices in channel systems, double and hollow ground, in dry or wet well-kept floors. Load Class 2 to 20 kN
