OBO Bettermann RKN2 UZD3 9MS25 Cartridge
EAN:
Part number:
Item no:
Technical specifications

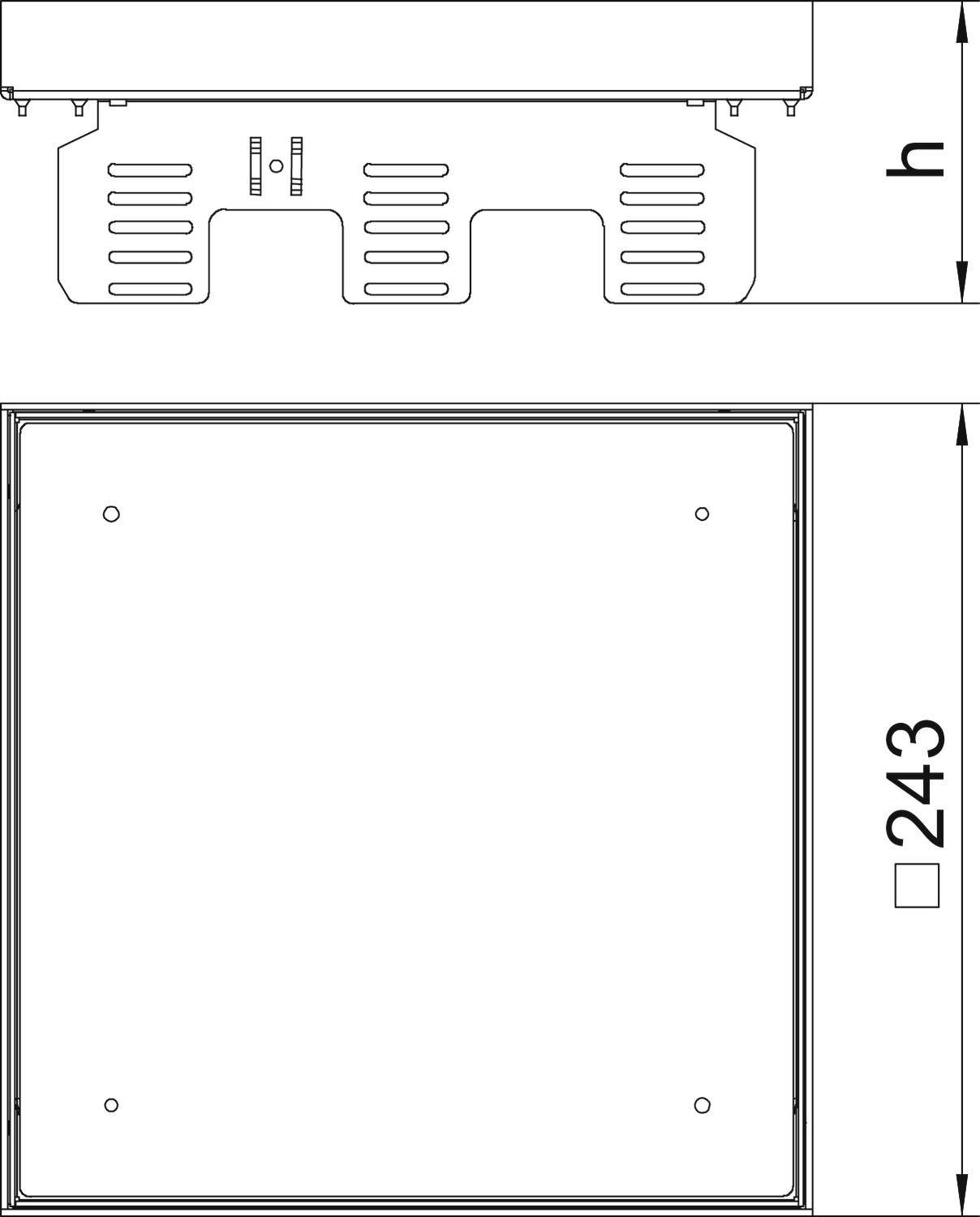

- Nominal size = 243 mm
- Cassette height = 95 mm
- Flooring recess = 25 mm
- Floor Care = wet
- Design = square
- Suitable for underfloor boxes structure =
- Material = brass
- The number of cable outlets = 0
- Color Cable Outlet = other
- Device support for recording device cups = Yes
- The number of in-built devices = 9
- Number of device cup = 3
- Product type
Cartridge
- Height
95 mm
- Length
243 mm
- Width
243 mm
- Dim
(L x W x H) 243 x 243 x 95 mm
- Suitable for
Underfloor boxes structure
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1960704 OBO Bettermann RKN2 UZD3 9MS25 Cartridge
Description

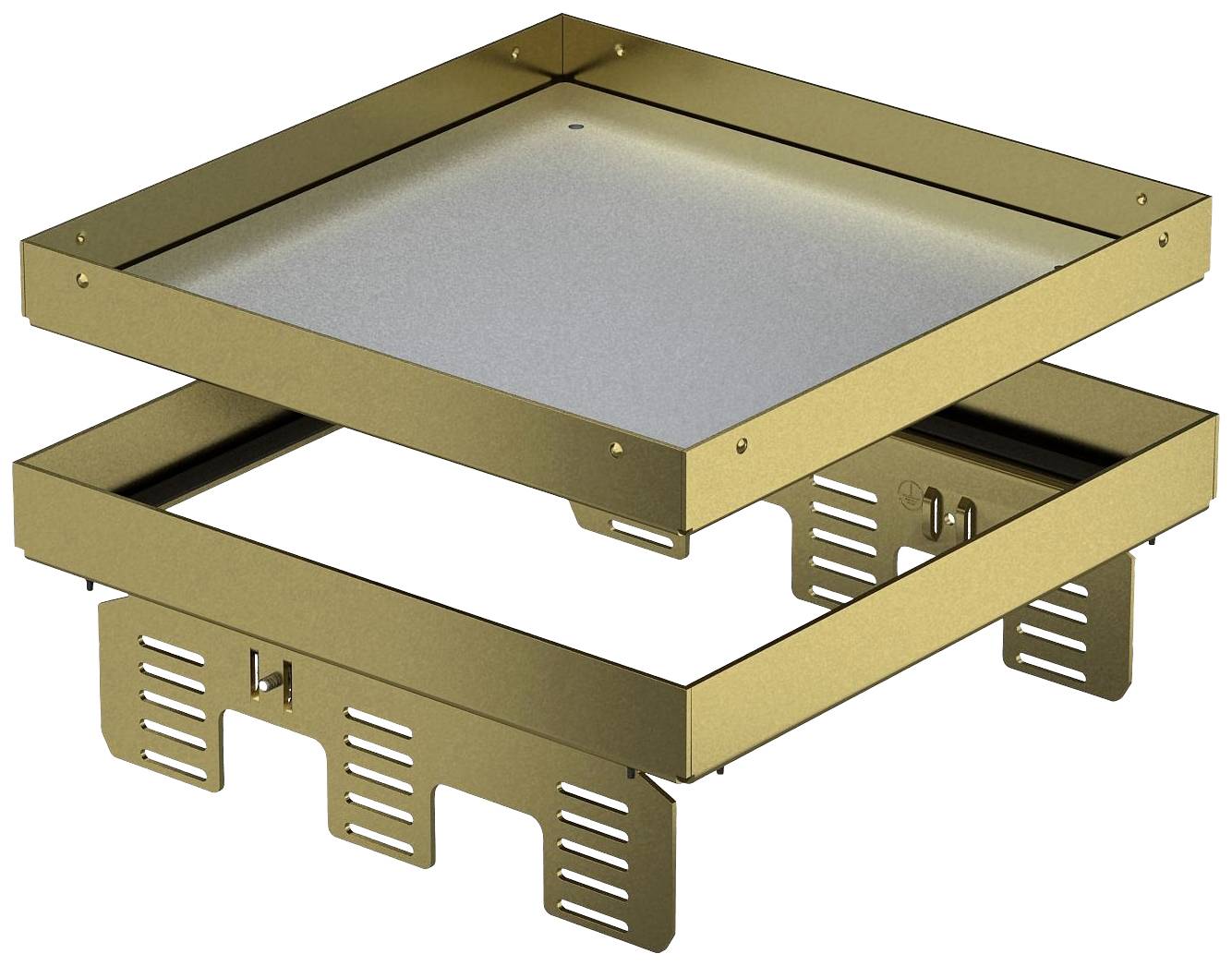

Adjustable cassette "blind" decoupled from the floor for the manufacture of a revision opening of nominal size 9 in dry or wet-maintained floors, for mounting in underground sockets UZD250-3 or UZD350-3, each in connection with an installation lid. The mounting is done by means of the leveling angle (order separately) in the aluminum frame profile of the underfloor boxes. Only suitable for smooth floor coverings
