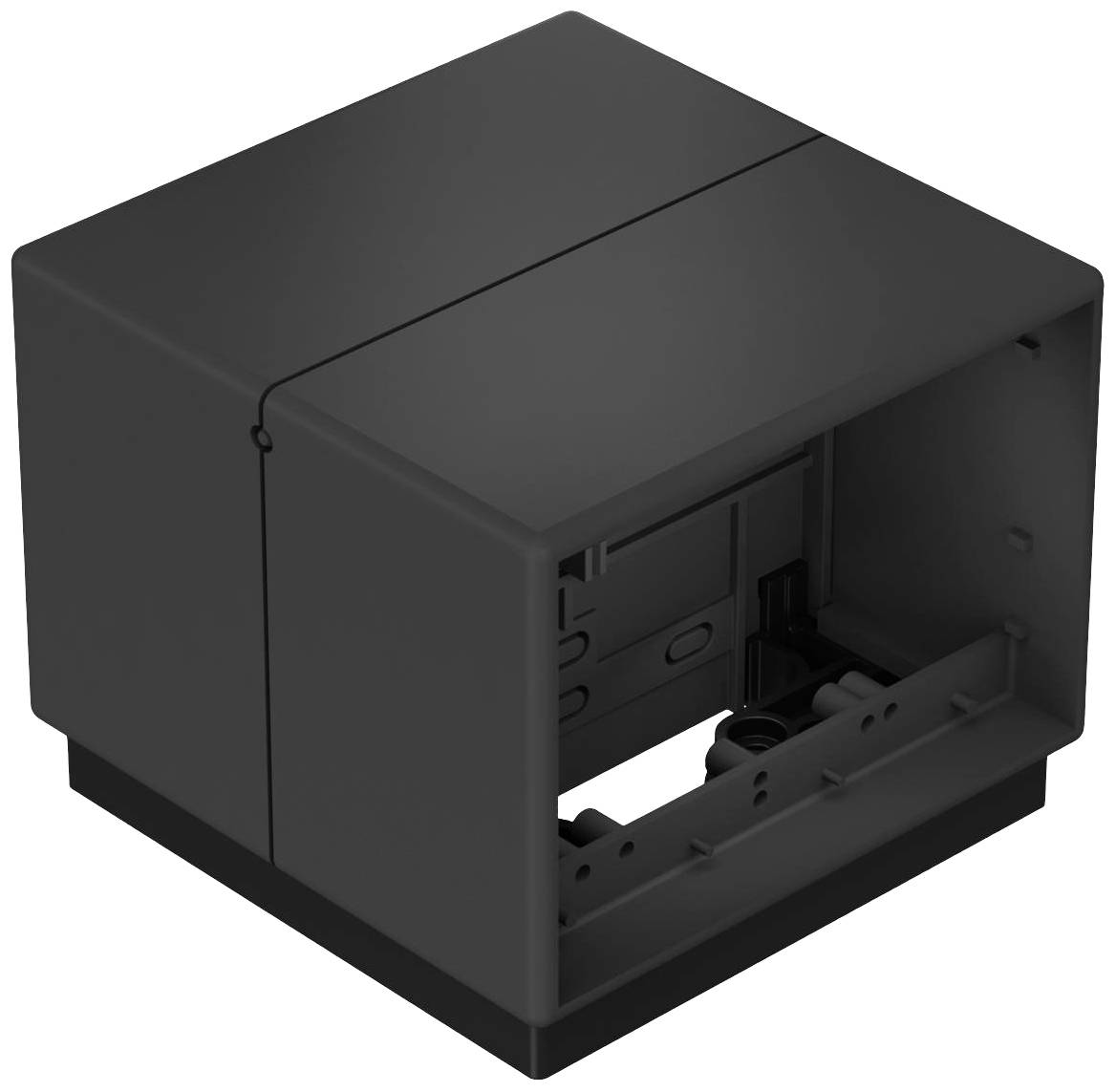

OBO Bettermann T4B 00C 9011 Floorbox
EAN:
Part number:
Item no:
Technical specifications
- The number of in-built devices = 4
- The number of in-built devices front = 2
- The number of in-built devices back = 2
- Design = horizontal
- Color = black
- RAL-number = 9011
- Suitable for standard switch material = Yes
- Suitable for wet care = Yes
- Material = polyamide (PA)
- Surface = other
- Length = 118 mm
- Width = 118 mm
- Height = 97 mm
- Product type
Floorbox
- Height
97 mm
- Length
118 mm
- Width
118 mm
- Dim

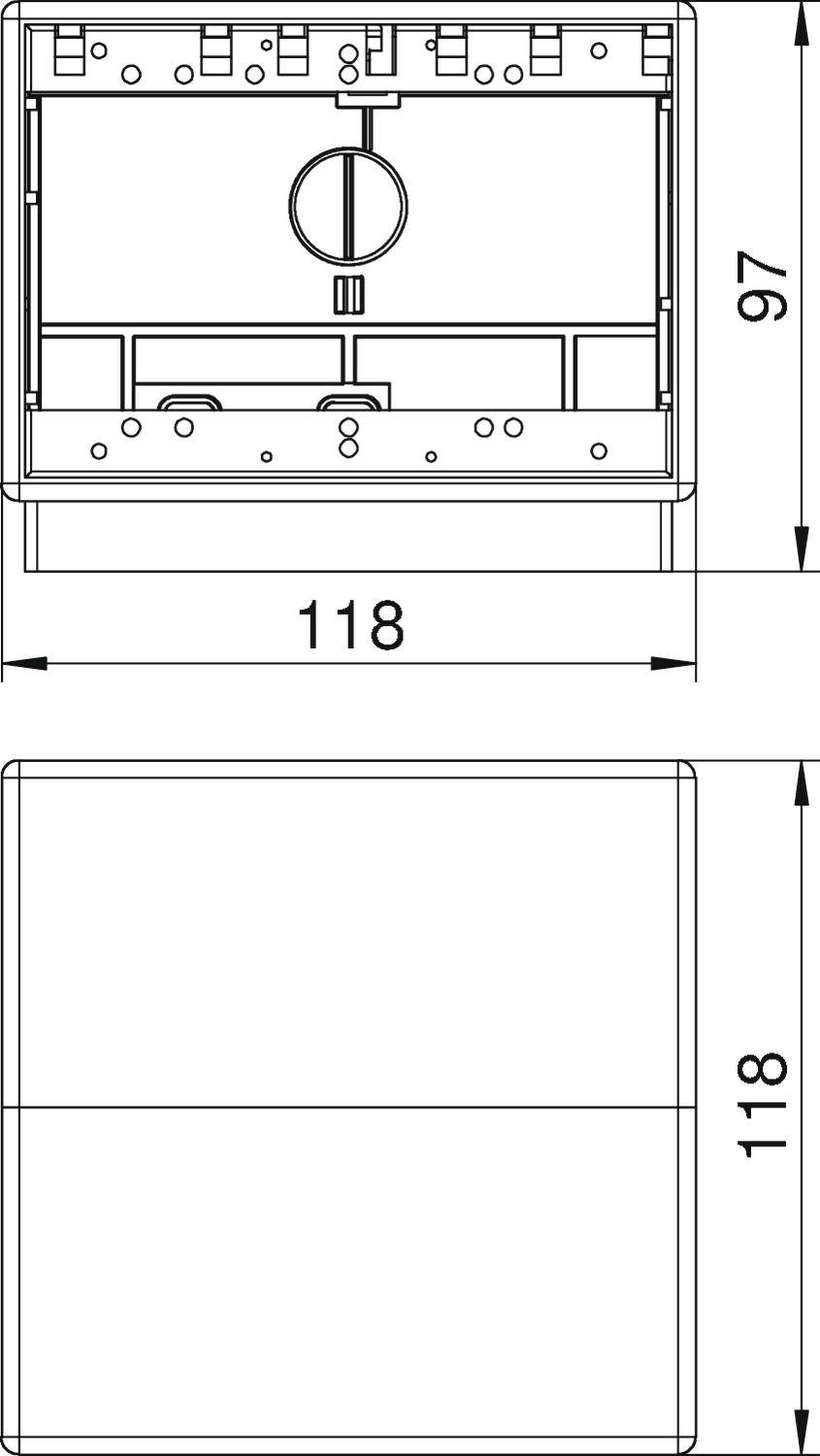

(L x W x H) 118 x 118 x 97 mm
- Factory colour
Black
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1961454 OBO Bettermann T4B 00C 9011 Floorbox
Description
The combined installation of 4 individual installation devices of the power, data and telecommunications technology (4 installation devices in a type or each 2 installation devices of two electricity species). The different types of power by a partition isolated from each other. When using multiple installation devices, the connection capacity can be increased accordingly. Screw mounting track for installation devices: 60 mm vertically. Seal and partition panel with 4 mounting screws M4 x 32 DIN 82.
