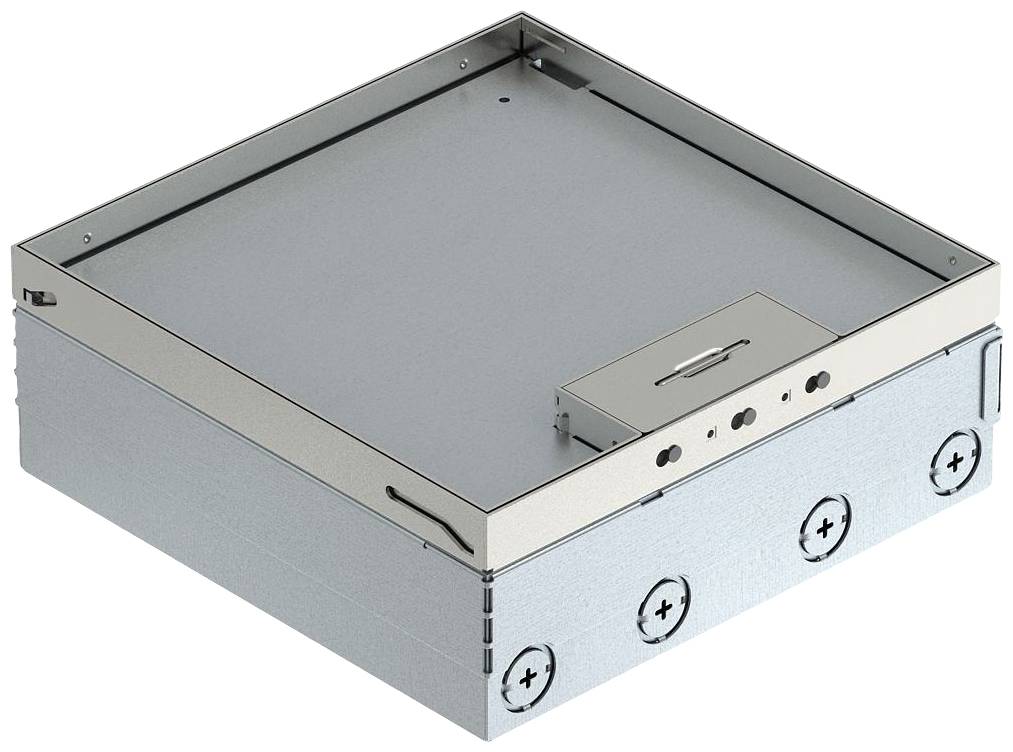

Metal junction box with multiple screw terminals and a small flap. It is intended for electrical installations.

Metal junction box with multiple screw terminals and a small flap. It is intended for electrical installations.

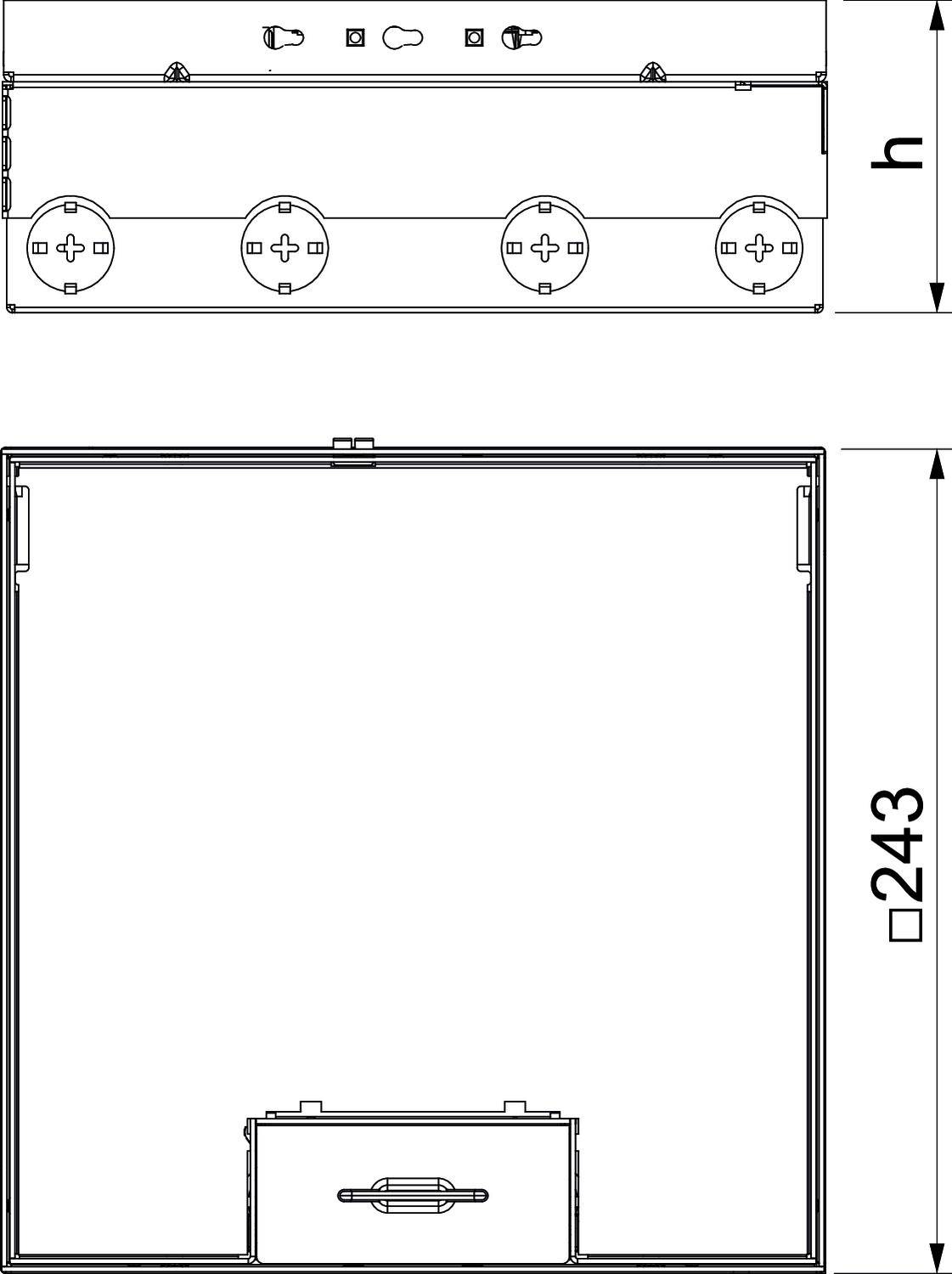

'Technical drawing of a rectangular device with four round connections on the top and a height of 243 mm.'

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Design cover = square
Suitable for wet care = No
Suitable for underfloor channel = No
Suitable for hollow-ground = Yes
Suitable for double-Ground = Yes
Number of device cup = 3
Material = rust free steel
With flooring recess = Yes
The depth of the flooring recess = 15 mm
Flooring protection frame = No
Min. Installation depth = 95 mm
Color = other
Length Outer dimension = 244 mm
Outside width dimension = 244 mm
Installation dimensions: width = 244 mm
Number of SCHUKO socket outlets = 0

Product type: Floorbox

Length: 244 mm

Width: 244 mm

Dim: (L x W) 244 mm x 244 mm

Recess depth: 95 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1966121 OBO Bettermann UDHOME9 2V MT V Floorbox

Description

Square installation unit for use in dry well-kept hollow floors and floor screed floors.

This text is machine translated.
