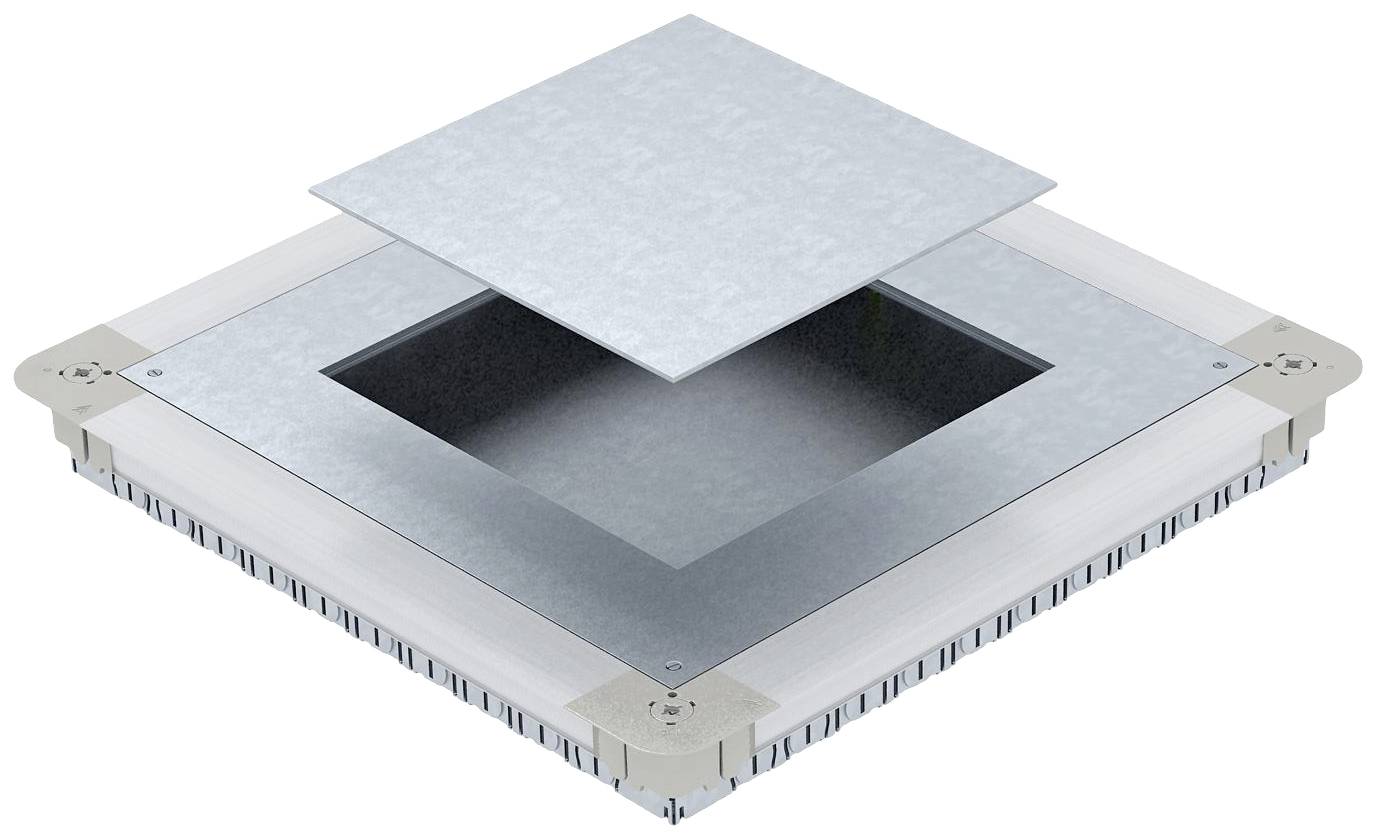

Interior view of a rectangular ventilation element with a removable metal cover and visible mesh insert underneath.

Interior view of a rectangular ventilation element with a removable metal cover and visible mesh insert underneath.

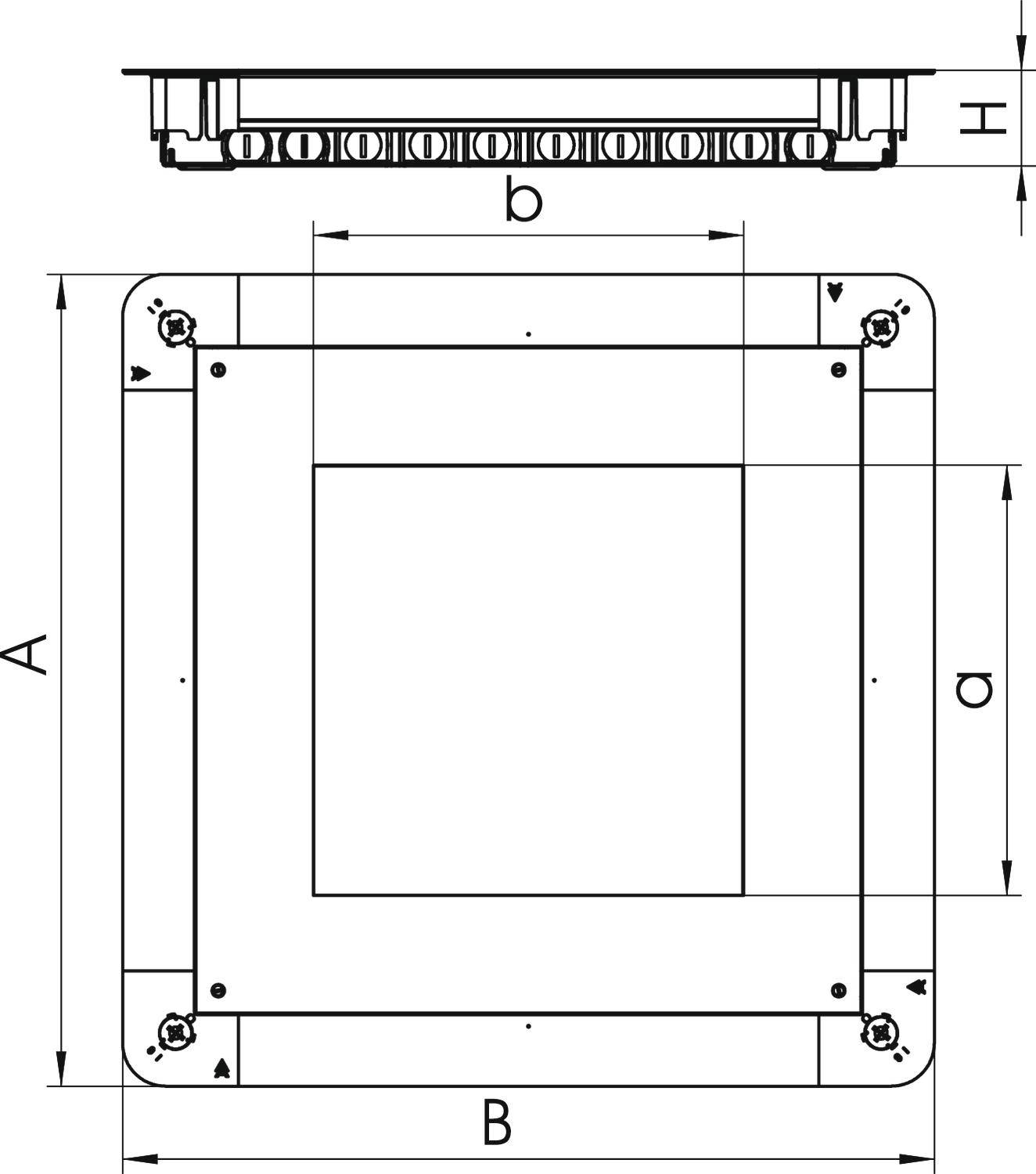

Technical drawing of a square component with dimensions: Width (b), Height (H), Overall Height (A), Inner Size (a), Overall Width (B). Screw holes at the corners.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Nominal size = 350 mm
Min. Screed height = 55 mm
Levelling range = 55..80 mm
Suitable for screed uberdeckten underground channel = No
Suitable for screed flush closed subsurface channel = No
Channel height = 0..0 mm
Channel width = 0..0 mm
Mounting hole for Aufflurtank = No
Mounting hole for installation unit = square
The number of in-built devices = 9
Material Side wall = Steel
Seal Installation Option = No
Decoupling option top part of the bottom part = No
Floor plate = No

Product type: Box

Height: 55 mm

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

Deutsch (Deutschland)

User & Safety Instructions 1962038 OBO Bettermann UGD55 350-3 9R Box

Description

Underfloor box with mounting lid and Cover Blind plate for the installation of a device insert into screed high starting from 55 mm. With pipe entry apertures for each side: 7 x M20, 3 x M25, 4 x M32. Usable tube size at system height 55 mm: M20
