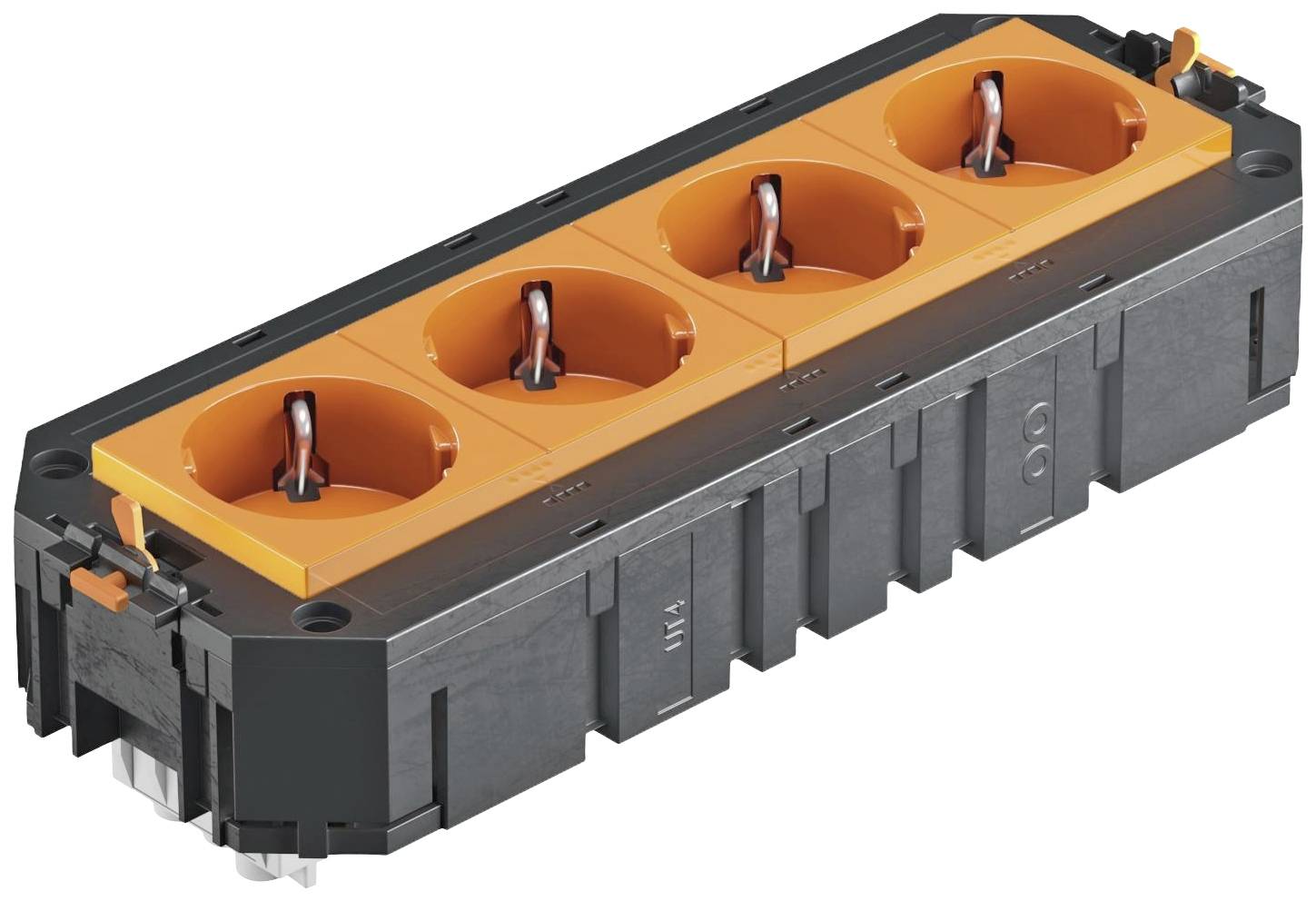

A rectangular, modular plug system with four orange connection sockets on a black base, designed for mounting or integration into larger systems.

A rectangular, modular plug system with four orange connection sockets on a black base, designed for mounting or integration into larger systems.

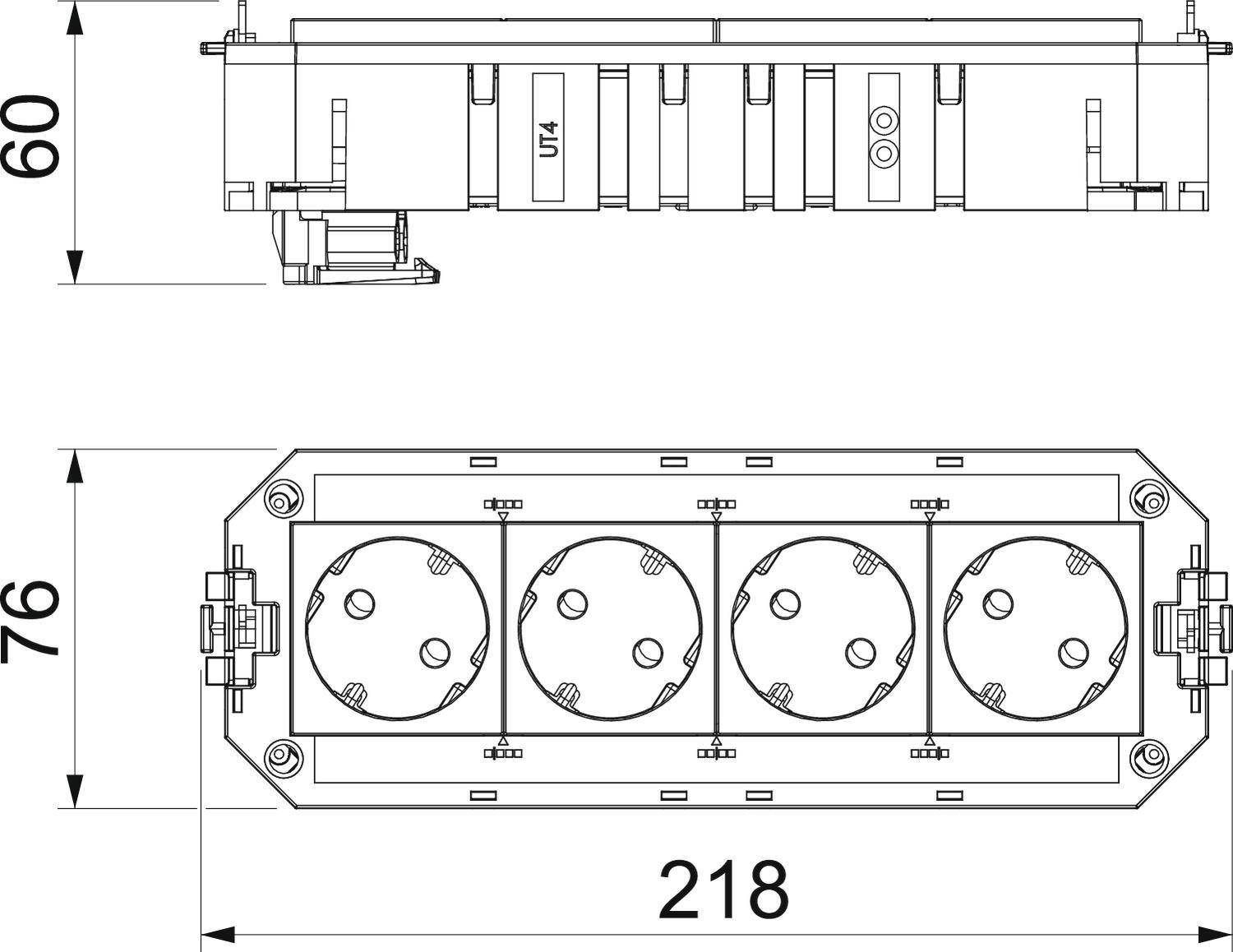

Technical drawing of a power strip with four round socket outlets, shown from the side and top view. Dimensions: 60x218x76 millimetres.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Socket Combination = 2 x 2-way
The number of connection lines = 1
Connector system system bound = Yes
Cross-section = 0 mm²
Length of the cable = 0 m
Length = 218 mm

Product type: Socket

Length: 218 mm

Cross section: 0 mm²

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1966061 OBO Bettermann UTC4 G OR4 Socket

Description

Universal carrier Connect Ready to connect universal carrier Connect UTC4 with Wieland connector system GST 18. Suitable for the connection cables VL and the device installation units of the nominal size R7, R9 and 9. Other variants of the ready universal carrier are available on request or via the self-configuration. The Ready to connect universal carrier UTC4 has four pre-installed 33° earthing contact socket-outlets with 16 A.

This text is machine translated.
