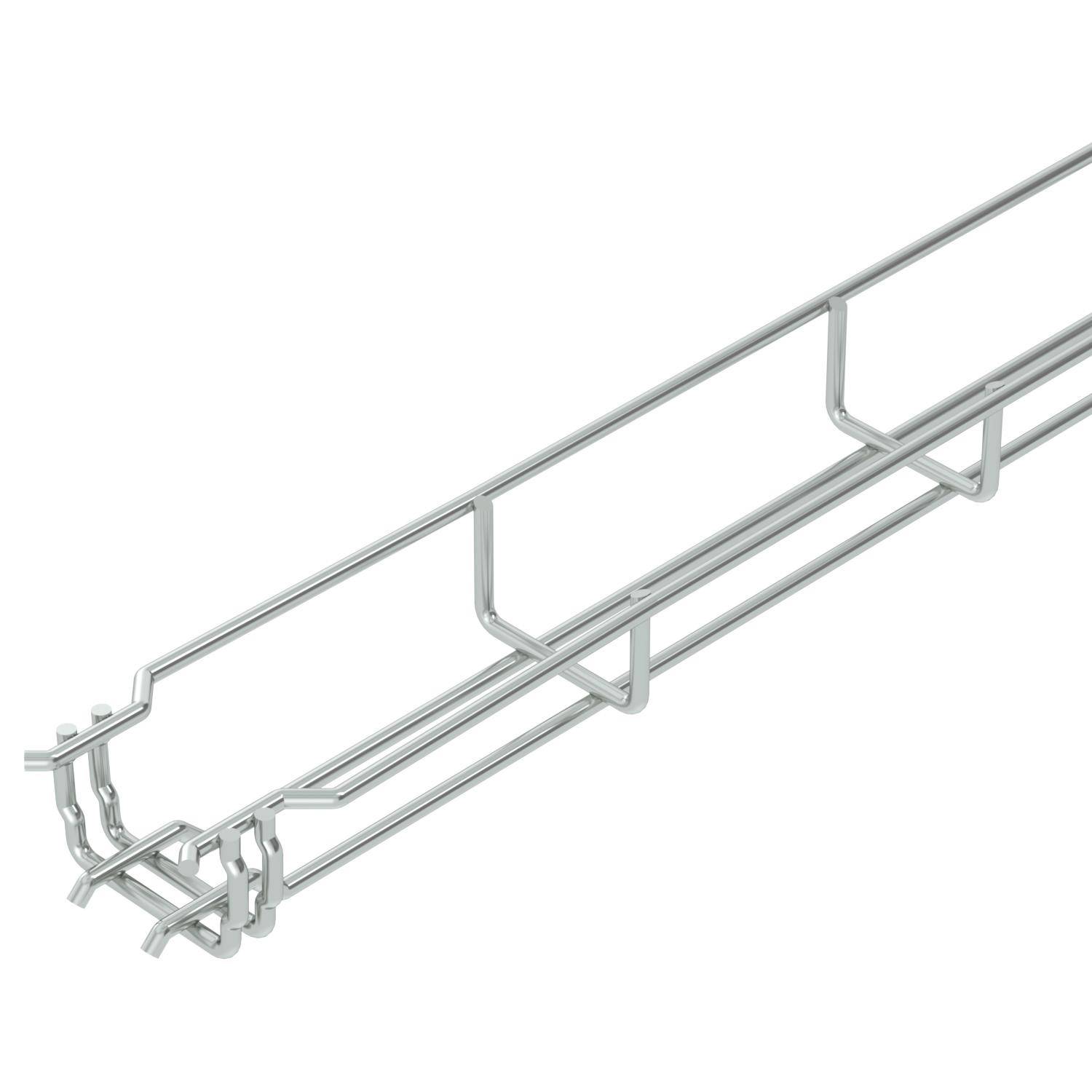

OBO Bettermann Wire chute (L x W x H) 3000 x 50.00 x 35.00 mm 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Profile shape: U-shape
- Height: 35 mm
- Width 50 mm
- Wire diameter 3.9 mm.
- Length: 3000 mm
- Usable cross-section: 1750 mm²
- Built: Built-in connector
- Screwless connectors: Yes
- Integrated partition: Without
- Wide-range version: No.
- Suitable for functional preservation: No.
- Material: Steel
- Material quality: Other
- Surface protection: Galvanised/electrolytically
- Colour: Other
- Load test type according to IEC 61537: Type II.
- Weighs 0.45 kg/m.
- Product type
Wire chute
- Type
Integrated connector
- Content
1 pc(s)
- Dim
(L x W x H) 3000 x 50.00 x 35.00 mm
- Length
3000 mm
- Width
50.00 mm
- Height
35.00 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3312601 OBO Bettermann Wire chute (L x W x H) 3000 x 50.00 x 35.00 mm 1 pc(s)
Description
Grisers fitted with integral connectors at the side height of 35 mm.
