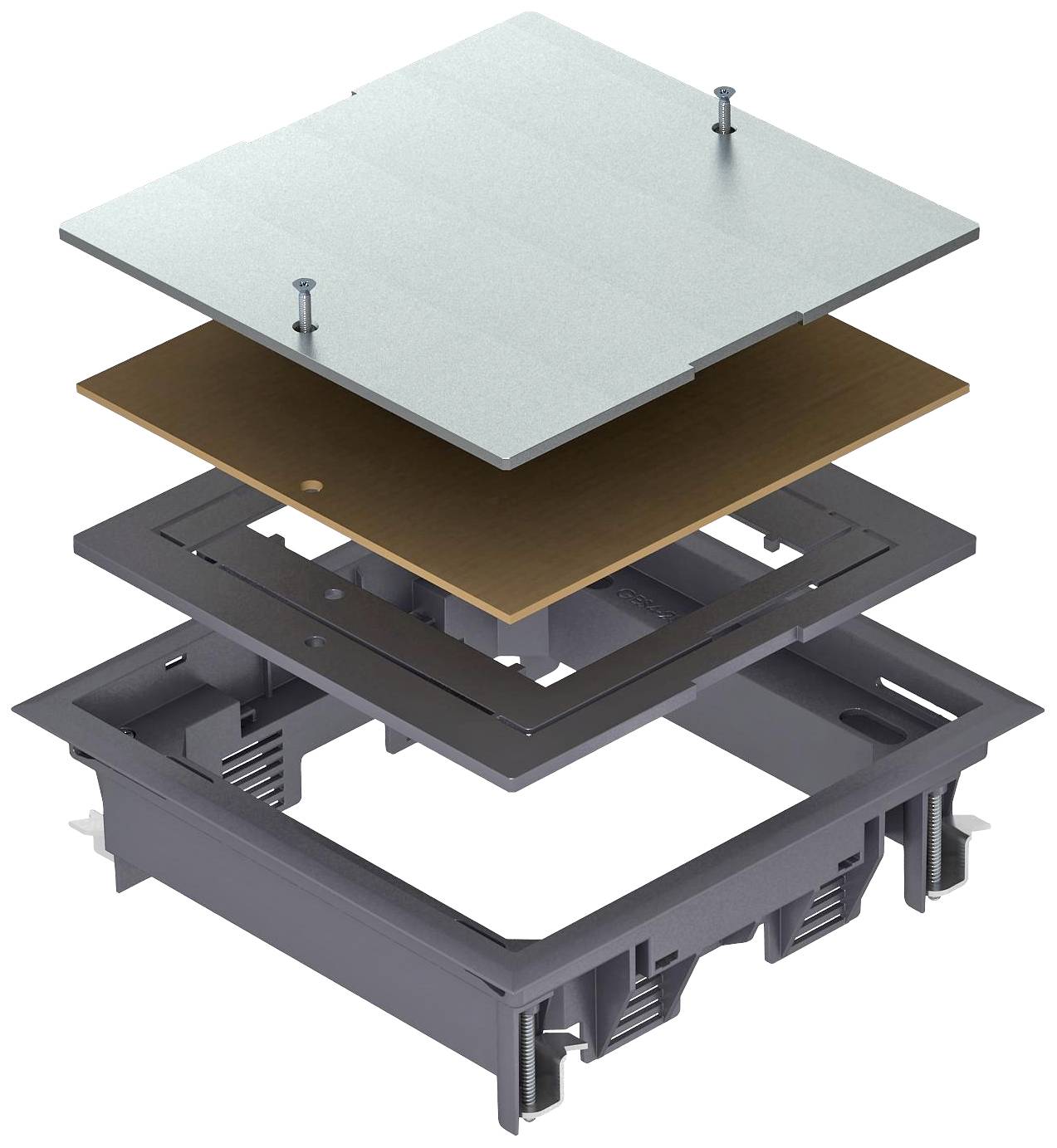

Exploded diagram of a mounting socket housing, showing layers of metal and plastic components assembled on top of each other.

Exploded diagram of a mounting socket housing, showing layers of metal and plastic components assembled on top of each other.

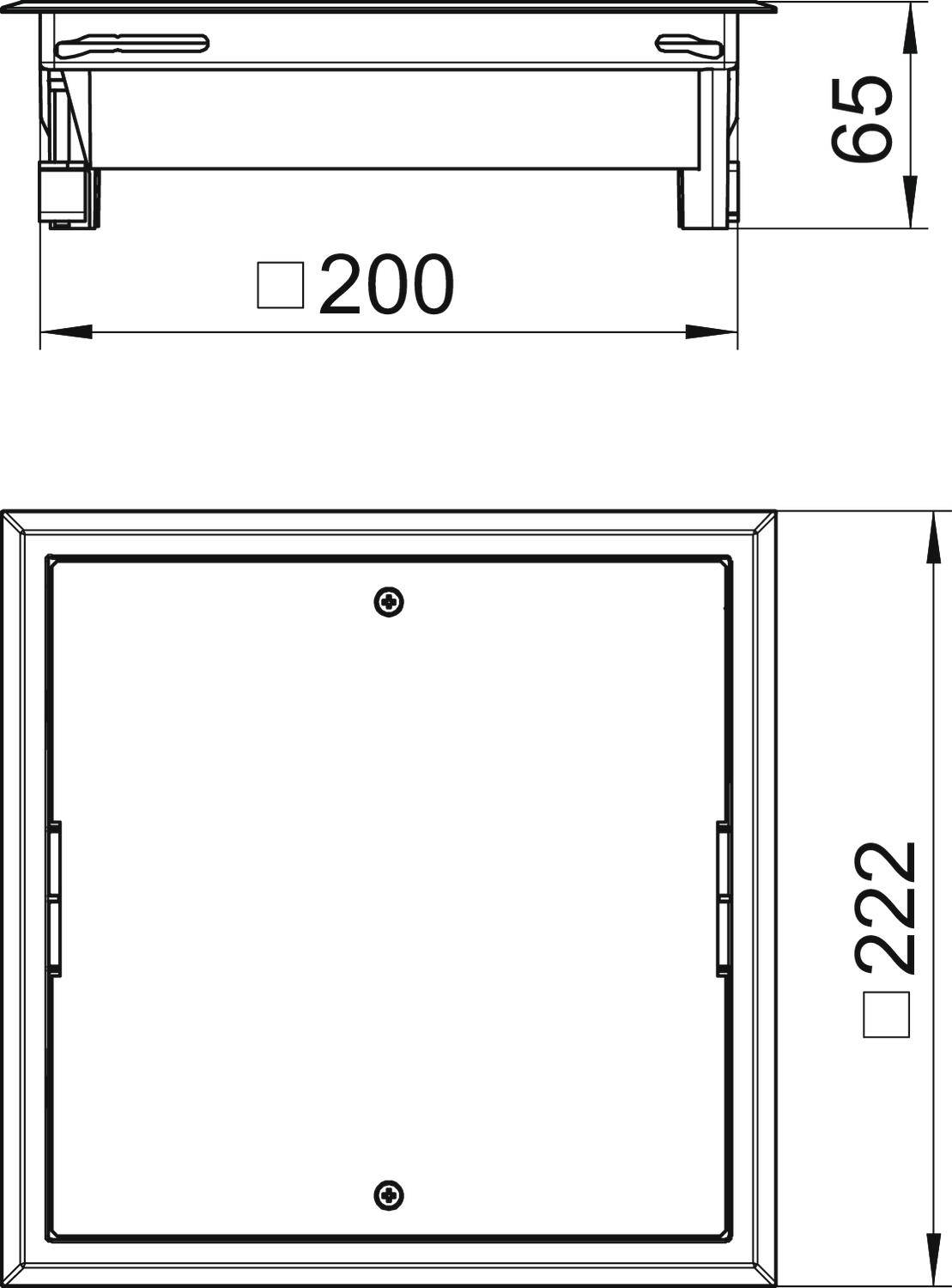

View and dimensions of a rectangular ventilation cover, 200 mm width, 65 mm height, and 222 mm height, from a technical drawing.

1/2

OBO Bettermann

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Design = square
Suitable for underfloor channel = Yes
Suitable for hollow-ground = Yes
Suitable for double-Ground = Yes
The depth of the flooring recess = 5 mm
Frame design = carpet protection frame
Length Installation dimension = 200 mm
Installation dimensions: width = 200 mm
Length Outer dimension = 222 mm
Outside width dimension = 222 mm
Material = polyamide (PA)
Color = gray
RAL-number =7011

Product type: Junction box inset

Length: 222 mm

Width: 222 mm

Dim: (L x W) 222 mm x 222 mm

Factory colour: Grey

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1956660 OBO Bettermann ZES4-2 U10T 7011 Junction box inset

Description

The Zugdoseneinsatz filler a square aperture of the nominal size 4 in a underground system. With flooring recess.
