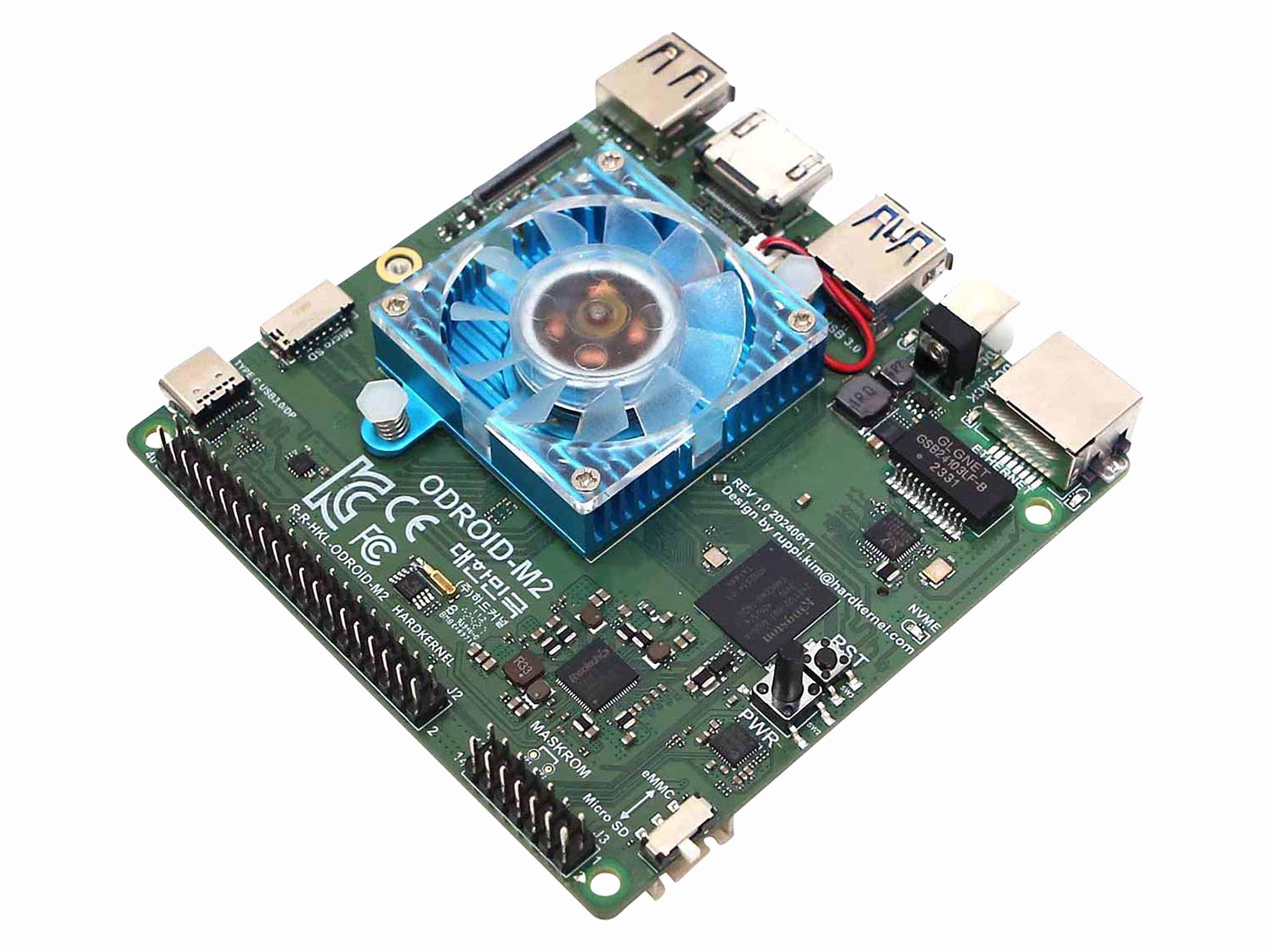

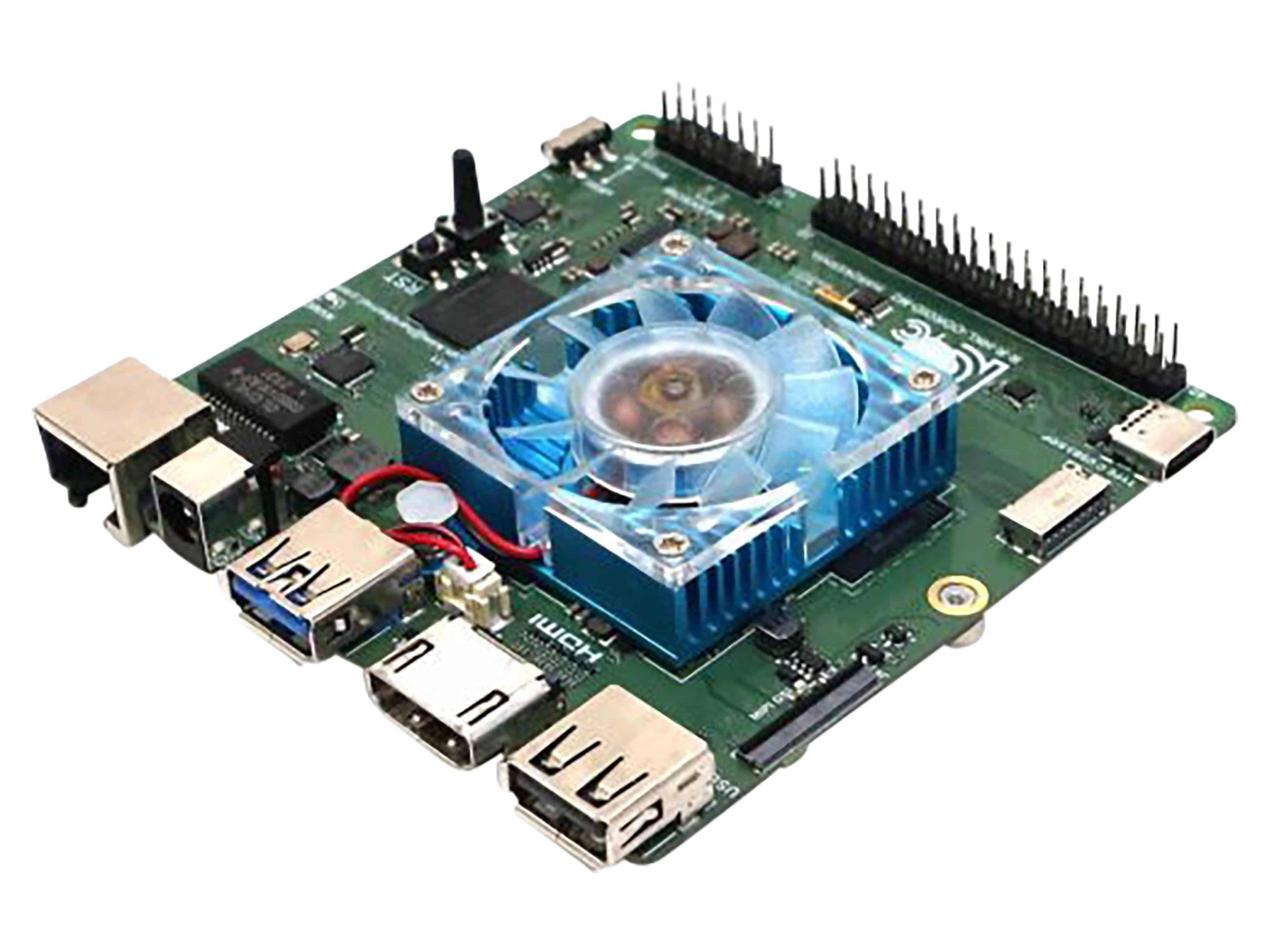

ODROID ODROID-M2/16GB ODROID M2 16 GB 4 x 2.3 GHz
EAN:
Part number:
Item no:
Total (€ 315.13 / piece)
€ 315.13
plus VAT.
14-day return policy included
Highlights & Details
Odrid M2, 4x 2.3 GHz, 16 GB RAM
- ARM Cortex-A76 and Cortex-A55 Octa-Core architecture
- Compact form factor
- Integrated 64 GB eMMC memory for fast data processing
- 16 GB LPDDR5 RAM for demanding applications
- Multiple input and output ports for expandability
Technical specifications
- Product type
SBC
- Type
ODROID M2
- SoC
Rockchip RK3588
- Processor
ARM Cortex-A76
- Processor cores (No.)
4 x
16 GB
- Clock speed
2.3 GHz
- Memory type
eMMC
- Memory capacity
64 GB
- Internal ports
M.2
- External ports
LAN (10/100/1000)
- Length
90 mm
- Width
90 mm
- Height
21 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3389503 ODROID ODROID-M2/16GB ODROID M2 16 GB 4 x 2.3 GHz
Description
The OROID-M2 is a cost effective single board computer with an ARM Cortex-A76 quad core and an ARM Cortex-A55 quad core. It is equipped with numerous inputs and outputs and is suitable for versatile applications.
The OROID-M2 impresses through its high efficiency. With its ARM Cortex-A76 and Cortex-A55 processors, it offers an optimal combination of computing power and low power consumption. The integrated 64 GB eMMC memory enables fast data transfer rates and together with 8 GB LPDDR5 RAM the device is suitable for memory-intensive applications. The slim design and numerous connection possibilities make the OROID-M2 a flexible solution for different application scenarios.
This text is machine translated.
The OROID-M2 impresses through its high efficiency. With its ARM Cortex-A76 and Cortex-A55 processors, it offers an optimal combination of computing power and low power consumption. The integrated 64 GB eMMC memory enables fast data transfer rates and together with 8 GB LPDDR5 RAM the device is suitable for memory-intensive applications. The slim design and numerous connection possibilities make the OROID-M2 a flexible solution for different application scenarios.
This text is machine translated.
Features
- Processor: Rockchip RK3588S2
- Quad Core Cortex-A76 (2.3 GHz +/- 0.1 GHz)
- Quad Core Cortex-A55 (1.8 GHz)
- ARMv8-A architecture with neon and crypto extensions
- Mali-G610 GPU MP4 (1 GHz)
- Storage Architecture:
- 64 KB L1 command cache, 64 KB L1 data cache, 512 KB L2 cache shared by Cortex-A76 processor
- 32 KB L1 command cache, 32 KB L1 data cache, 128 KB L2 cache shared by Cortex-A55 processor
- L3 data cache: 3 MB shared by 8 processors
- NPU: 6 TOPS@INT8, INTEGRATED AI ACCELERATOR RKNN NPU
- LPDDR5 8 with 64-bit bus width
- Memory:
- 1 x 64 GB eMMC (soldered on to the board)
- 1 x MicroSD slot (UHS-I SDR104)
- Boot priority can be selected between eMMC and microSD via sliding switch
- 1 x NVMe SSD (PCIe 2.1 x 1 lane)
- Network: 1 x GbE port (RJ45, supports 10/100/1000 Mbps)
- Green LED: Flashing on traffic at 100 Mbps connection
- Yellow LED: Flashing for data traffic on 1000 Mbps connection
- Video output:
- 1 x HDMI 2.0 (up to 4K@60Hz with HDR, EDID)
- 1 x MIPI DSI interface (30-pin connector, different from the 31-pin connector of the OROID-M1)
- 1 x DP (via USB Type-C port)
- External I/O:
- 1 x USB 2.0 host port
- 1 x USB 3.0 host port
- 1 x USB 3.0 Type-C (data communication and DP old mode, no power source/sink)
- 1 x debug serial console (UART)
- 1 x 40 pin GPIO and 1 x 14 pin GPIO
- Real-time clock (RTC):
- On-board power-saving PCF8536 RTC chip
- CR2032 RTC backup battery holder, holds time and date up to 10 years without main power supply
- Key features:
- On/Off switch
- Reset key
- System LED indicators:
- Red (Power) - Permanent light with a connected DC power supply
- Blue (ALIVE) - Blinking like a heartbeat when the kernel is running. Continuous light in submarine status.
- Power supply:
- 1 x DC-socket: Outer diameter 5.5 mm, inner diameter 2.1 mm
- DC-input voltage range 7.5 V ~ 15.5 V (12 V/2 A power supply recommended)
- IDLE: Approx. 1 W without peripherals
- CPU stress: Approx. 7.5 W (performance governor) without peripherals
- Switched off: Approximately 0 W.
- Dimension: 90 x 90 x 21 mm.
