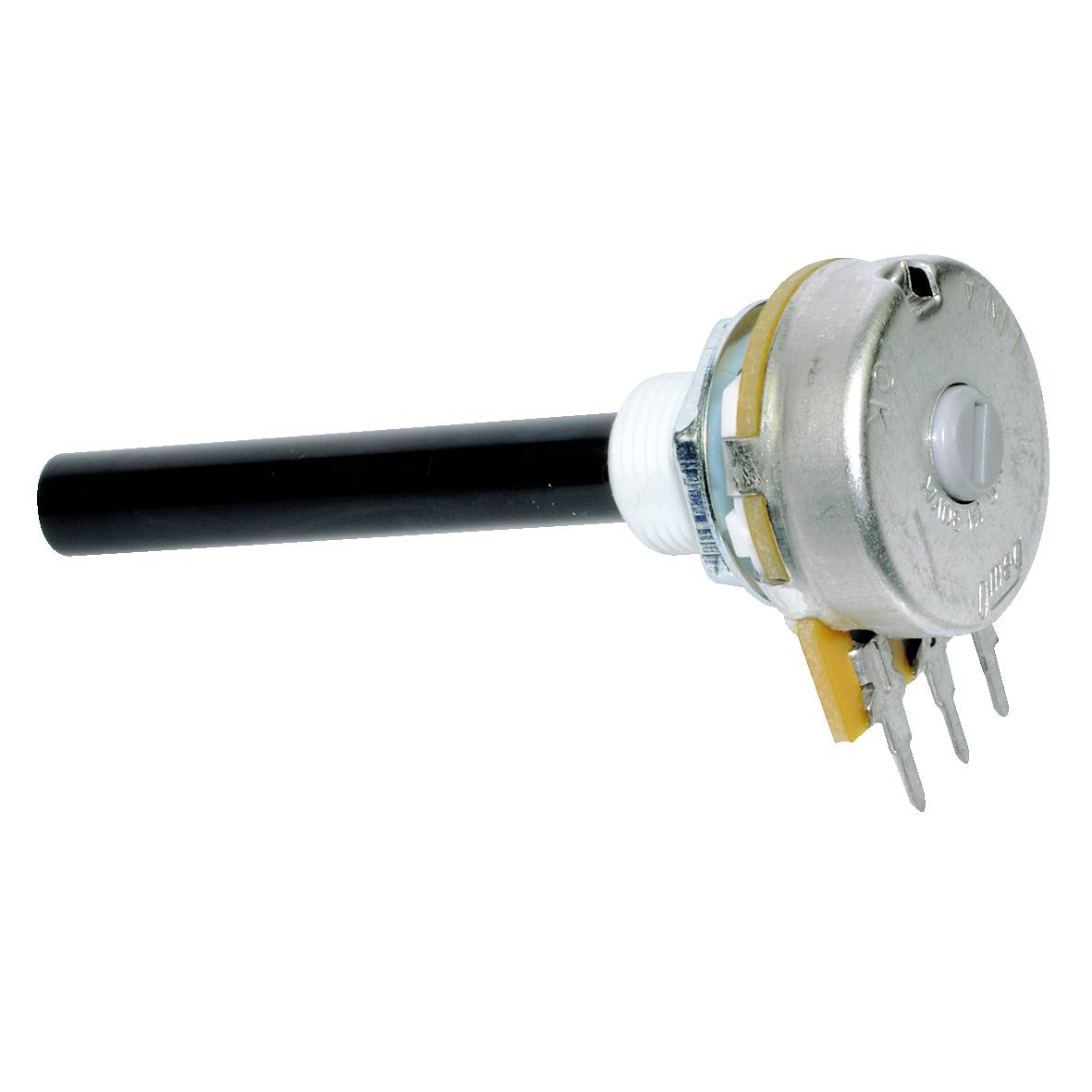

OMEG PC20BU100RAF1CP7 Plastic film pot 0.4 W 100 Ω 1 pc(s)
Part number:
Item no:
Product type
Plastic film pot
Resistance
100 Ω
Resistance characteristic
linear
Power rating
0.4 W
Axle type
Plastic
Datasheet (PDF)
Highlights & Details
OMEG potentiometer 21/6 mono linear 100R
- 100 Ω
- linear
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series PC20BU
- Design: Horizontal
- Diameter, base 20.4 mm
- Length, shaft 50 mm
- Diameter, Shaft 6 mm
- Axis: Plastic
- Resistance tolerance: ±20 %
- Resistance curve: Linear
- Rated output: 0.4 W
- Max voltage 500 V
- Insulation voltage 1,000 V
- Lifetime: 20,000 cycles
- Mechanical rotation angle 300 °
- Electrical angle of rotation 267 °
- Stop strength 80 Ncm
- Torque 1.5 Ncm
- Product type
Plastic film pot
- Resistance
100 Ω
- Resistance characteristic
linear
- Power rating
0.4 W
- Cut-off voltage
500 V
- Mechanical angle
300°
- Electrical angle
267°
- Torque (max.)
1.5 Ncm
- Impact tolerance
80 Ncm
- Axle length
50 mm
- Axle type
Plastic
- Axle Ø
6 mm
- CS
5 mm
- (Ø)
20.4 mm
- Tolerance ±
20 %
- Insulation resistance
4,000 MΩ
- Content
1 pc(s)
- Type
PC20BU100RAF1CP7
- Dim
(Ø) 20.4 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3463086 OMEG PC20BU100RAF1CP7 Plastic film pot 0.4 W 100 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3463086 OMEG PC20BU100RAF1CP7 Plastic film pot 0.4 W 100 Ω 1 pc(s)
Description
OMEG carbon film potentiometer
This text is machine translated.
This text is machine translated.
Features
- Carbon film potentiometer
- Plastic axle
- Housing diameter 20.4 mm
Scope of delivery
- PC20BU100RAF1CP7.
