Omnitronic 80711092 Recess-mount PA volume control and selector Black
EAN:
Part number:
Item no:
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
Only 7 Piece(s) available
Highlights & Details
Omnitronic ELA-LS-Controller/Prog-Dialer 45 W/s.
- Built-in volume control and program selector with 24 V internal receiver relay
Technical specifications
- Frequency range 50-18,000 Hz
- Nominal load capacity 45 W.
- Internal reception relay 24 V DC
- Product type
PA volume control and selector
45 W
- Factory colour
Black
- Mounting type
Recess-mount
- Dim
(W x H x D) 80 x 154 x 67 mm
- No. of programmes
6
- Weight
300 g
- Width
80 mm
- Height
154 mm
- Depth
67 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313167 Omnitronic 80711092 Recess-mount PA volume control and selector Black
Description

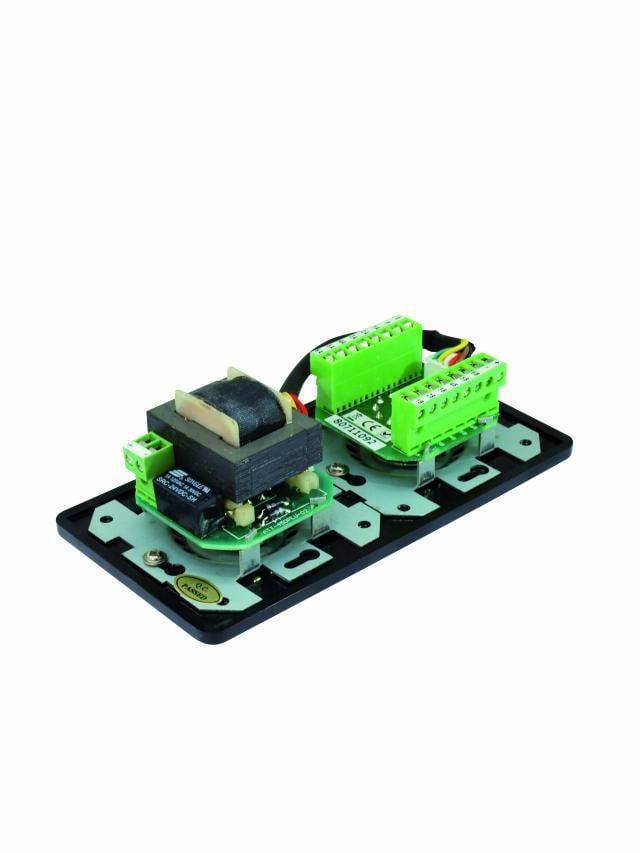

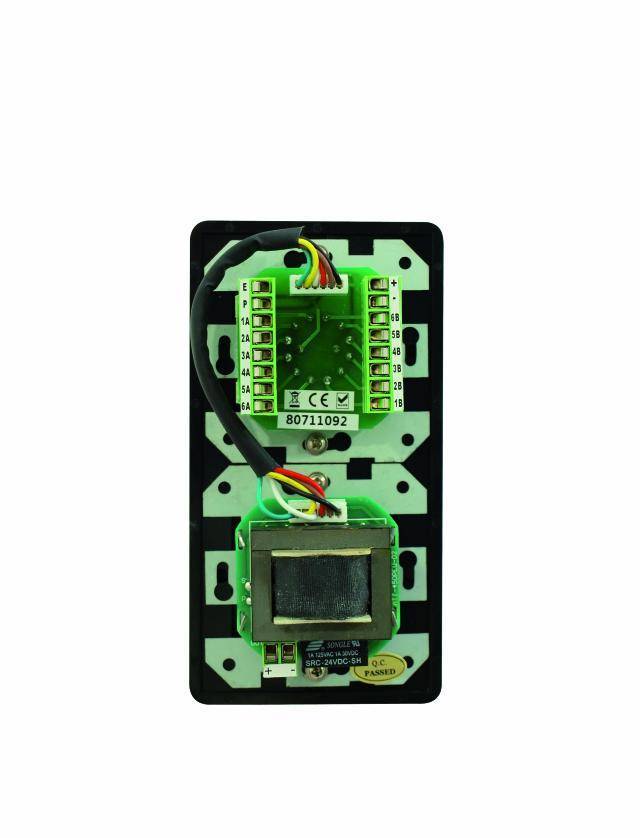

Built-in volume control and program selector with 24 V internal receiver relay · Combination of ELA program selector for 6 signal sources and ELA volume control · Suitable for 100 V audio technology or other signals · Front plate and buttons made of black plastic · Built-in 24 V internal receiver relay · Attenuation in 11 steps · Flush mounting in any commercially available 60er double switch socket · Surface mounting with separately available ELA AP housing · Installing depth 45 mm · Screw-plug connection
This text is machine translated.
This text is machine translated.
