Buy Omnitronic A-3603 PA amplifier RMS power per channel (at 4 Ohm): 800 W

1/5

Unavailable

Sales and shipping:

Highlights & Details

Power supply: 230V AC, 50Hz output power (RMS): 4 ohms: 1 x 2000 W, 2 x 800 W 8 ohms: 1 x 1000 W, 2 x 400 W Noise: 100 dB THD: 0.003% attenuation factor: 500 voltage amplification: 41.2 dB slew rate: 10 V/input impedance: 20 kOhm (symmetrical), 10 kOhm (asymmetrical) connection input 3 x XLR connection output: 3 x speaker, 3 x XLR-loop circuit: Class D Controls: Power Switch, gain controls, Mode Switch 2/3 channels, cut-off frequency LED-display: Protect, clip, 0 dB, 10 dB, 20 dB signal (per channel) Construction: steel chassis with aluminum front plate dimensions: 483 x 410 x 100 mm Weight: 9.10 kg with 2U rack-mount Total connection value: 685 W 1/8 Power Frequency range 20 - 20000 Hz Height: 8.9 cm depth: 41 cm width: 48.3 cm power/channel (8 ohm): 800 W power/channel (4 ohm): 2000 W

User & Safety Instructions 1876884 Omnitronic A-3603 PA amplifier RMS power per channel (at 4 Ohm): 800 W

A -3603 Class-D power amplifier. 2.1

This text is machine translated.

Variable crossover frequency for satellites and subwoofer (50-250 Hz)
2.1 Operation or 3-channel operation
3 level control
Per channel LED VU meter and LEDs for activated protective circuit (Protect) and overload (clip)

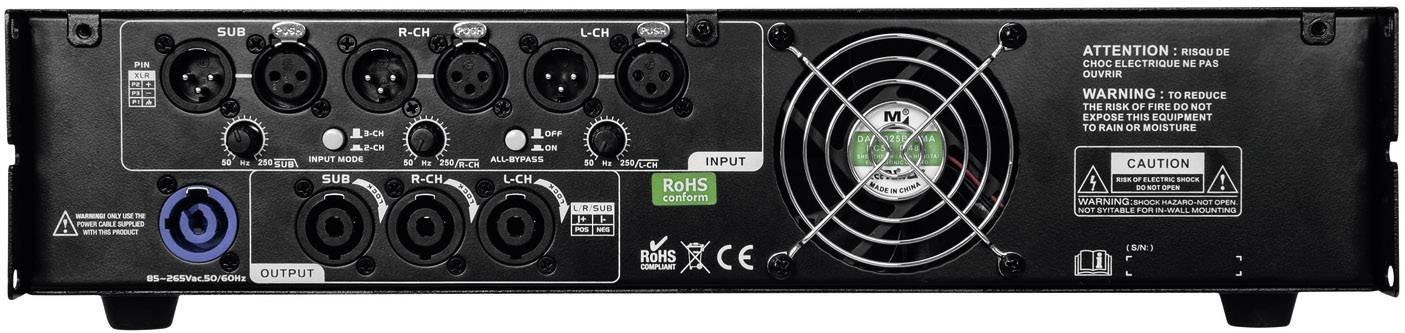

Electronically balanced inputs via XLR panel jack with XLR Durchschleifausgangen
Loudspeaker outputs via lockable speaker jacks
Robust steel housing with aluminum front plate
Rack installation with 2 height units.
