Omnitronic Active PA speaker 38 cm 15 inch 300 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic XIRA-215A Active 2-way loudspeaker FIR-DSP
- RMS power:300 W
- Max. power:400 W
- 15 inch
- 121 dB
Technical specifications
- Power supply 230 V AC 50 Hz
- Load capacity: Nominal: 300W RMS LF, nominal: 50W RMS HF
- DSP: Digital signal processor FIR Filter
- DSP-PRESETS: MUSIC; DJ; MONITOR; SUB
- Mounting system: Double flange: Ø 35mm (0°/5°)
- Circuit: Class D Biamp
- Protective circuit: Limiter
- Status LED: Power, signal, clip

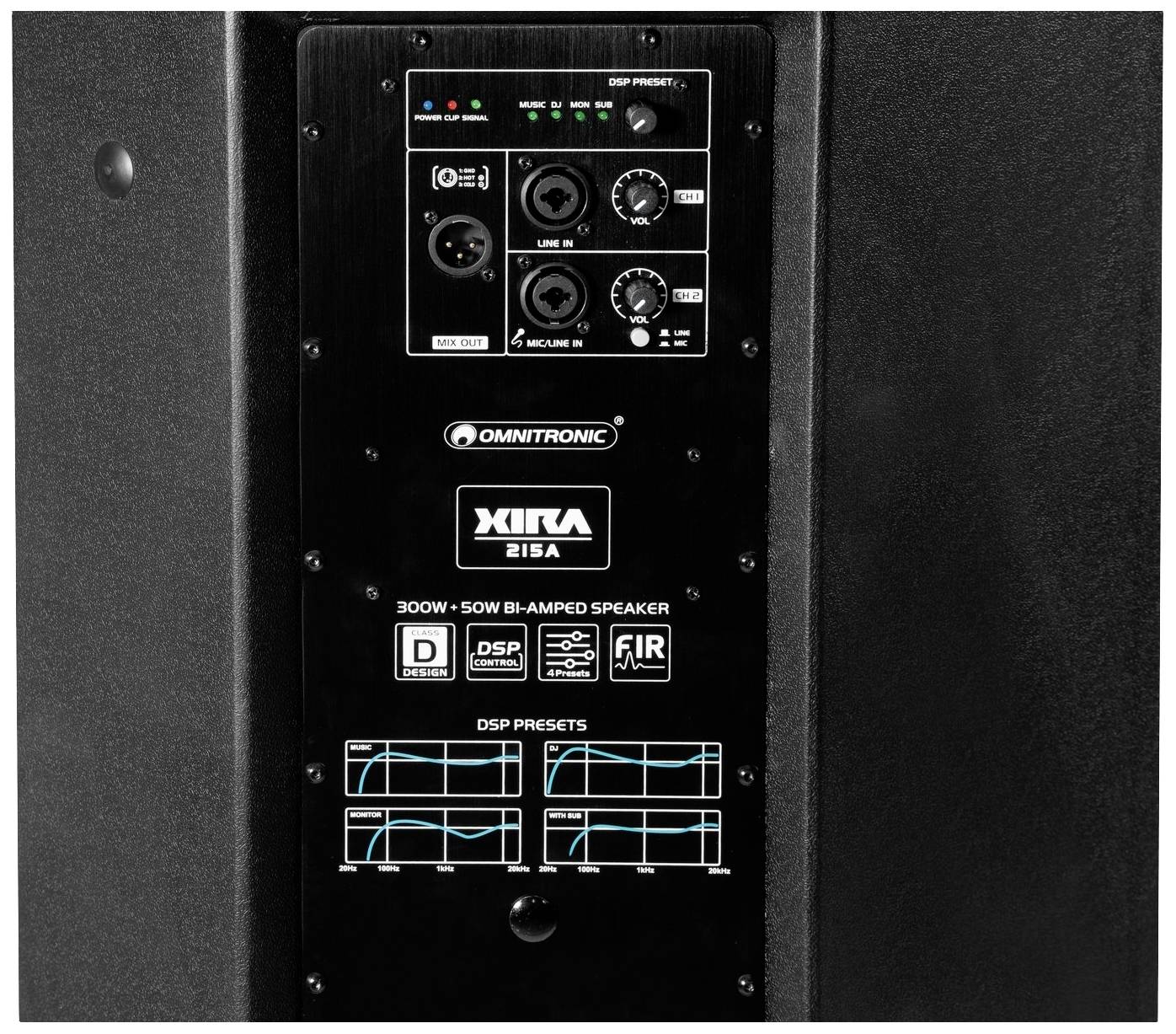

- Channels Input: 1 x mono with mic-line switch via combo socket (XLR/JACK), channel control via control dial, 1 x mono via combi-socket (XLR/JACK), channel control via control dial
- Speakers: 1 x woofer (15") approx. 38 cm, moving coil compression driver tweeter (1.35") approx. 3.5 cm
- Product type
Active PA speaker
- RMS power
300 W
- Max. power
400 W
- Speaker size (cm)
38 cm
- Speaker size (inch)
15 inch
- Max. sound pressure
121 dB
- Interfaces
XLR in
XLR out
Line in
- Dim
(W x H x D) 430 x 700 x 410 mm
- Frequency range
40 - 20000 Hz
- Weight
21.35 kg
- Content
1 pc(s)
- Width
430 mm
- Height
700 mm
- Depth
410 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2898837 Omnitronic Active PA speaker 38 cm 15 inch 300 W 1 pc(s)
Description
Powerful active box for DJ and live applications.
The active 2-way loudspeaker XIRA from Omnitronic impresses with its high, distortion-free output. With 300 watt RMS power for the woofer and 50 watt RMS for the tweeter brings the diaphragm to life. At the same time the sound remains distortion-free.
The DSP-controlled Biamp amplifier in Class-D design offers four practical presets, which ensure crystal-clear, uniformly good sound in every application: "MUSIC" provides for a simple bass and treble increase, "DJ" gives the sound more presence and bass, "MONITOR" is the right choice for use as floor monitor and "SUB" always fits, if an additional subwoofer is used.
The design of the low-vibration and robust housing not only looks appealing, but also enables the flexible use of the XIRA: So the active box can be mounted on a stand or set up as a floor monitor. The speaker has a double flange with 0° and 5° tilt for mounting the stand.
This text is machine translated.
The active 2-way loudspeaker XIRA from Omnitronic impresses with its high, distortion-free output. With 300 watt RMS power for the woofer and 50 watt RMS for the tweeter brings the diaphragm to life. At the same time the sound remains distortion-free.
The DSP-controlled Biamp amplifier in Class-D design offers four practical presets, which ensure crystal-clear, uniformly good sound in every application: "MUSIC" provides for a simple bass and treble increase, "DJ" gives the sound more presence and bass, "MONITOR" is the right choice for use as floor monitor and "SUB" always fits, if an additional subwoofer is used.
The design of the low-vibration and robust housing not only looks appealing, but also enables the flexible use of the XIRA: So the active box can be mounted on a stand or set up as a floor monitor. The speaker has a double flange with 0° and 5° tilt for mounting the stand.
This text is machine translated.
Features
- Active box with 15" woofer, 1.35" driver, LF: 300 W RMS, HF: 50 W RMS
- Active 15/2 full range system for mobile live and DJ applications
- DSP-controlled Biamp amplifier (Class D)
- Practical presets for fast and application-specific sound tuning: MUSIC, DJ, MONITOR, SUB
- 2-way bass reflex housing with 38 cm woofer and 3.5 cm titanium tweeter
- Line input XLR/jack, separately adjustable
- Microphone/line input XLR/jack, separately adjustable
- Mixed-output (XLR), for connecting further active boxes
- Limiter function for overload protection
- Stable plastic housing with protective grille and carrying handles
- Double flange with 0° and 5° inclination angle enables flexible alignment
- Use as a floor monitor, standing, on a stand or on a wall bracket
Scope of delivery
- Speaker
- User manual.
