Omnitronic Airbros MK2
EAN:
Part number:
Item no:
Technical specifications
- Power supply 5 V DC 1000 mA
- Protection class: IP20
- Protection class SK III.
- Frequency range: 20 - 20 000 Hz
- Range: Up to 30 m outdoors; Up to 15 m indoors
- Frequency band: 5.8 GHz
- Parallel operation: Max. 4 transmitter
- Latency: Less than 6 ms
- Status LED: Charge status indicator, channel source, mute
- Colour, black
- Weight 0.10 kg
- Transmitter:
- Current connection: Power feed via USB C (W) Installation version Power connection cable for USB A mains connection included
- Battery type 1 x Lithium-Ion 3.7 V/400 mAh/1.48 Wh
- Battery: Operating time up to 4h, charging time 1h via USB
- Connections: Input: Line via 1 x 6.3 mm jack (unbal.)
- Max. Level: Input: +640 mV, unbal.
- Material: Hard plastic
- Dimensions: Length: 14.8 cm; width: 3.3 cm; height: 2.7 cm
- Weight 0.0375 kg
- Receiver
- Current connection: Power feed via USB C (W) Installation version Power connection cable for USB A mains connection included
- Battery type 1 x Lithium-Ion 3.7 V/400 mAh/1.48 Wh
- Battery: Operating time up to 4h, charging time 1h via USB
- Connections: Output: Line via 1 x 6.3 mm jack (unbalanced)
- Max. Level: Output: +770 mV, unbal.
- Material: Hard plastic
- Dimensions: Length: 14.8 cm; width: 3.3 cm; height: 2.7 cm
- Weight 0.0375 kg
- Camera bag:
- Material: plastic
- Weight 0.031 kg
- Factory colour
Black
- Dim
(L x W x H) 14.8 x 3.3 x 2.7 cm
- Weight
0.10 kg
- Length
14.8 cm
- Width
3.3 cm
- Height
2.7 cm
- No. of inputs
1 x
- No. of frequencies (adjustable)
4
- Channels
4
30 m
- Interfaces
6.3 mm jack in
- Transmission frequency
5.8 GHz
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729705 Omnitronic Airbros MK2
Description

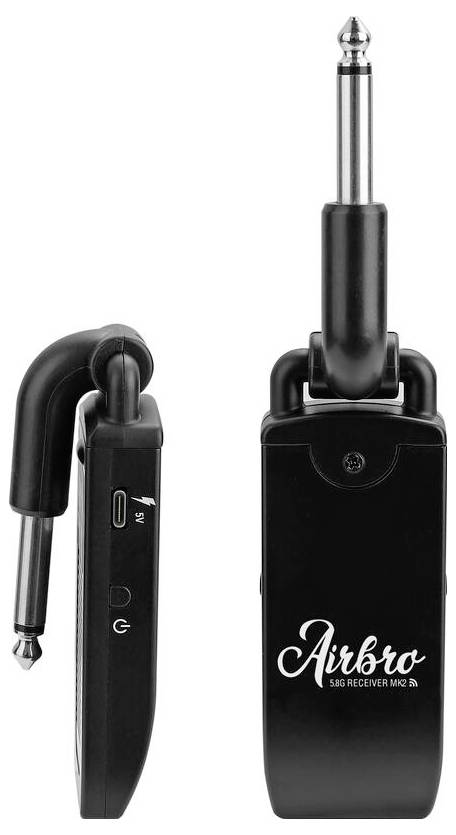

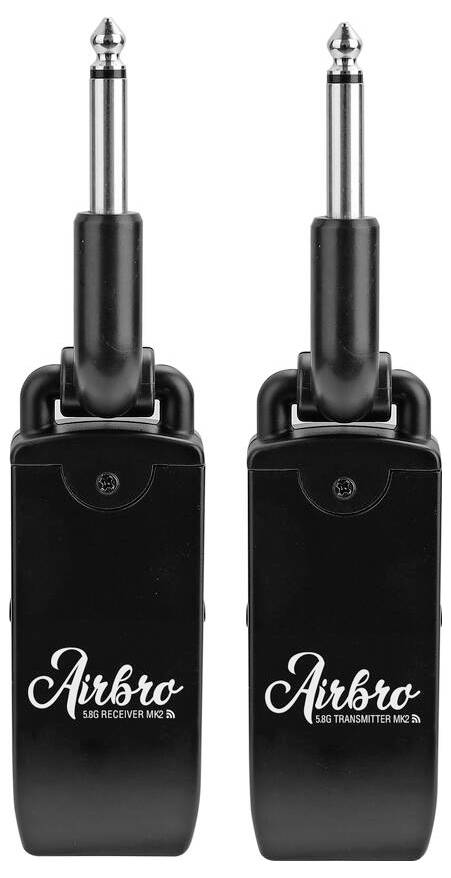

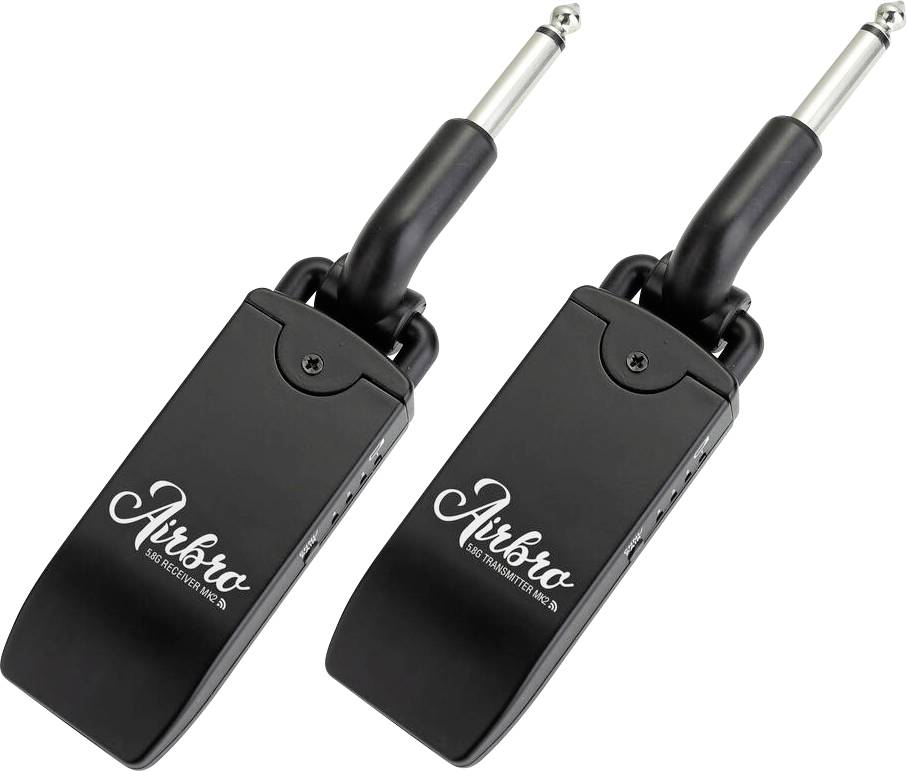

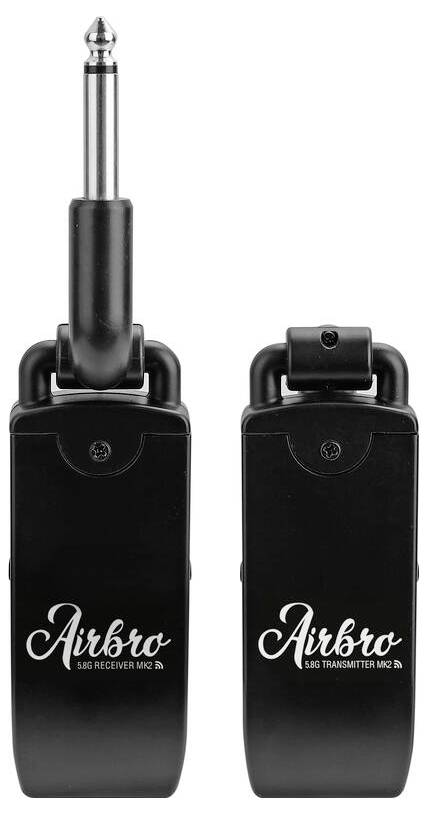

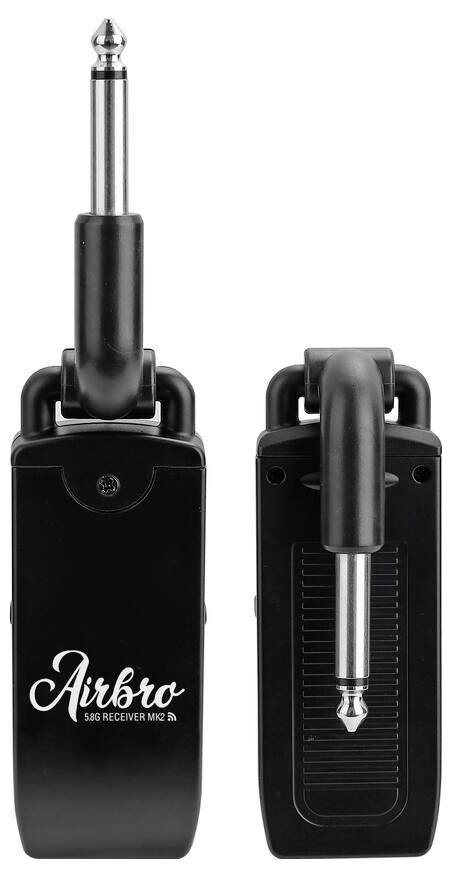

Plug-n-play wireless system with transmitter and receiver. Replaces the cable between the instrument and guitar amplifier. Allows a lot of freedom of movement with the live performance. Ready to use in comfort and quickly thanks to one-button operation. Operates in the interference-free 5.8 GHz band. 24 bit/48 kHz for the ultimate sound quality. 4 switchable transmission Channels Several receivers can be coupled to a single transmitter. Angle adjustable by 195°, thus suitable for all types of guitar Range of up to 30m outdoors. Range of up to 15m inside buildings. 5.8 GHz world-wide registration and call free. Up to 4 transmitters can be operated in parallel without interferences. Extremely low latency. The article is delivered in a practical carrying case. Transmitter. Wireless, flexible and versatile. Operation time up to 4h. Built-in automatic charging. Receiver. Wireless, flexible and versatile. Operation time up to 4h. Built-in automatic charging.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x transmitter
- 1 x receiver
- 1x USB cable
- 1 x pouch
- 1x user manual
- 1 x declaration of conformity.
