Omnitronic AZX-208 Passive PA speaker 20 cm 8 inch 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic AZX-208 2-way top 100W
- 8 inch
- 111 dB
Technical specifications
- Product type
Passive PA speaker
- Speaker size (cm)
20 cm
- Speaker size (inch)
8 inch
- Max. sound pressure
111 dB
- Frequency range
65 - 18000 Hz
- Dim
(W x H x D) 26 x 43.8 x 25.5 cm
- Weight
8.7 kg
- Content
1 pc(s)
- Width
26 cm
- Height
43.8 cm
- Depth
25.5 cm
- Factory colour
Black
- Wireless charging
No
- Max. power
200 W
- RMS power
100 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131332 Omnitronic AZX-208 Passive PA speaker 20 cm 8 inch 1 pc(s)
Description
Passive box with 8" woofer, 1" driver and 100 W RMS
2-way bass reflex system with 20 cm woofer and 2.5 cm titanium tweeter
This text is machine translated.
2-way bass reflex system with 20 cm woofer and 2.5 cm titanium tweeter
This text is machine translated.
Features
- Possible application: Standing; flying; monitoring; on stand
- Double flange
- With flight points
- Metal grid in black with acoustic foam
- Robust handle
- Frequency range 65 18000 Hz
- Impedance 8 Ohm

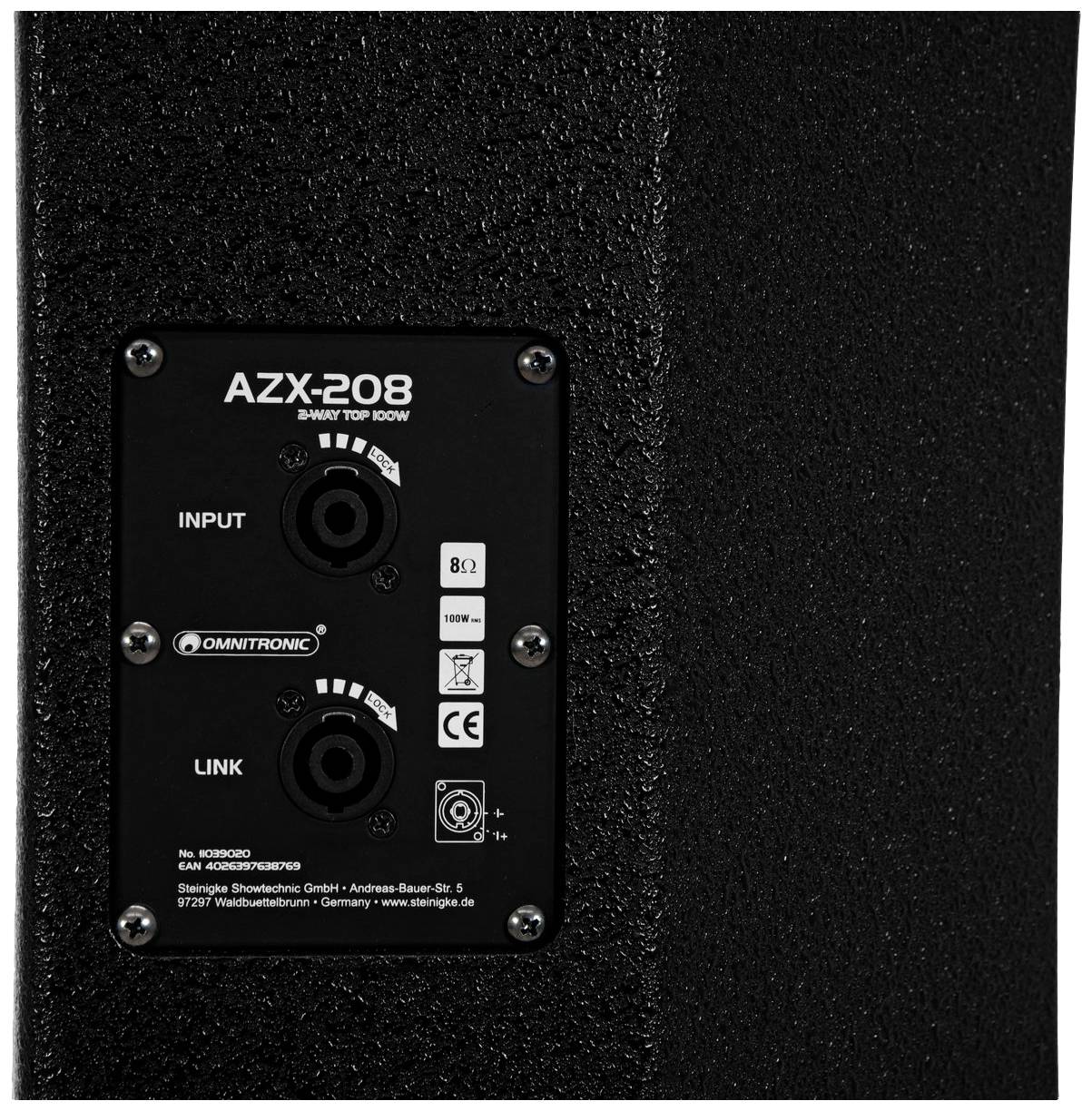

- Connections: Speaker via 2 x speaker mounted sockets (W)
- Load carrying capacity: 200W
- Nominal 100W RMS
- Sensitivity 91 dB (1W/1m)
- Max. Sound pressure level 111 dB
- Recording system: Ø 35mm (0°/5°)
- 1 x 8" woofer
- Speaker type: Compact box
- Material: MDF (medium density fiber board), 15 mm
- Carrying handle:1 pieces
- Flying points 7 x M10 thread
- 1.5" moving coil woofer
- 1 x 1" compression driver tweeter
Scope of delivery
- Compact box
- User manual
