Omnitronic AZX-210 Passive PA speaker 25.4 cm 10 inch 200 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic AZX-210 2-way top 200W
- RMS capacity:200 W
- Max. load (W):400 W
- 10 inch
- 116 dB
Technical specifications
- Product type
Passive PA speaker
- RMS capacity
200 W
- Max. load
400 W
- Speaker size (cm)
25.4 cm
- Speaker size (inch)
10 inch
- Impedance
8 Ω
- Max. sound pressure
116 dB
- Frequency range
60 - 18000 Hz
- Dim
(W x H x D) 36 x 58.5 x 37 cm
- Weight
12.4 kg
- Content
1 pc(s)
- Width
36 cm
- Height
58.5 cm
- Depth
37 cm
- Factory colour
Black
- Max. power
400 W
- RMS power
200 W
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131333 Omnitronic AZX-210 Passive PA speaker 25.4 cm 10 inch 200 W 1 pc(s)
Description

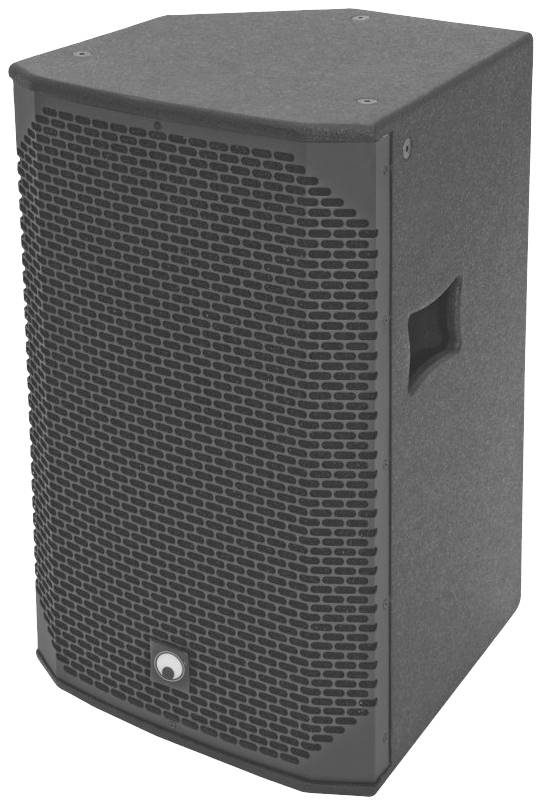

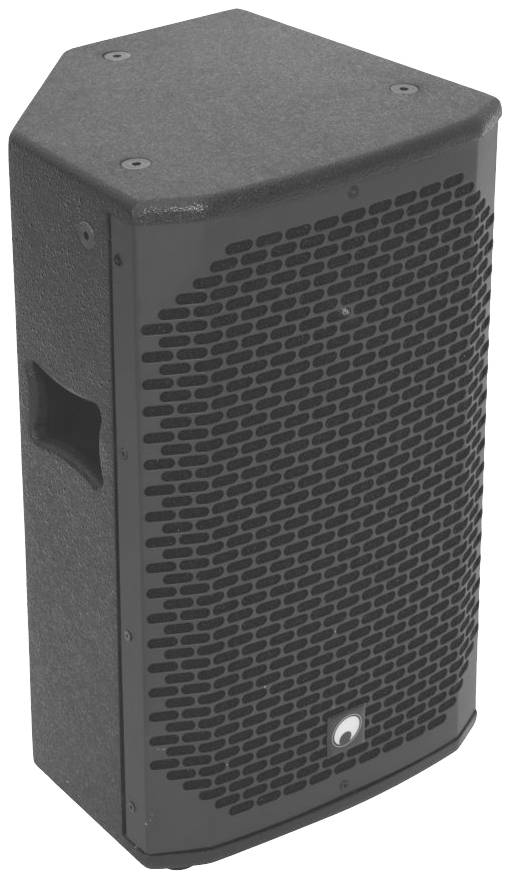

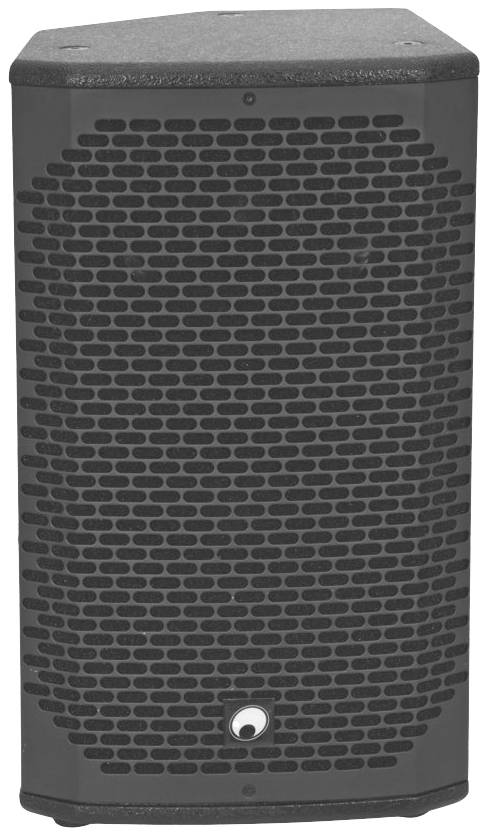

Passive box with 10" woofer, 1" driver and 200 W RMS
2-way bass reflex system with 25 cm woofer and 2.5 cm titanium tweeter
This text is machine translated.
2-way bass reflex system with 25 cm woofer and 2.5 cm titanium tweeter
This text is machine translated.
Features
- Double flange
- With flight points
- Metal grid in black with acoustic foam
- Robust handle
- Possible application: Standing; flying; monitoring; on stand
- Frequency range 60 18000 Hz
- Impedance 8 Ohm

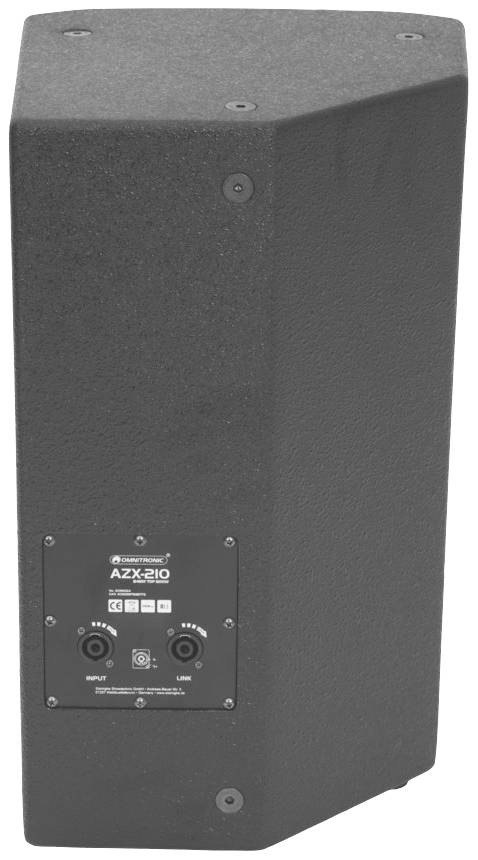

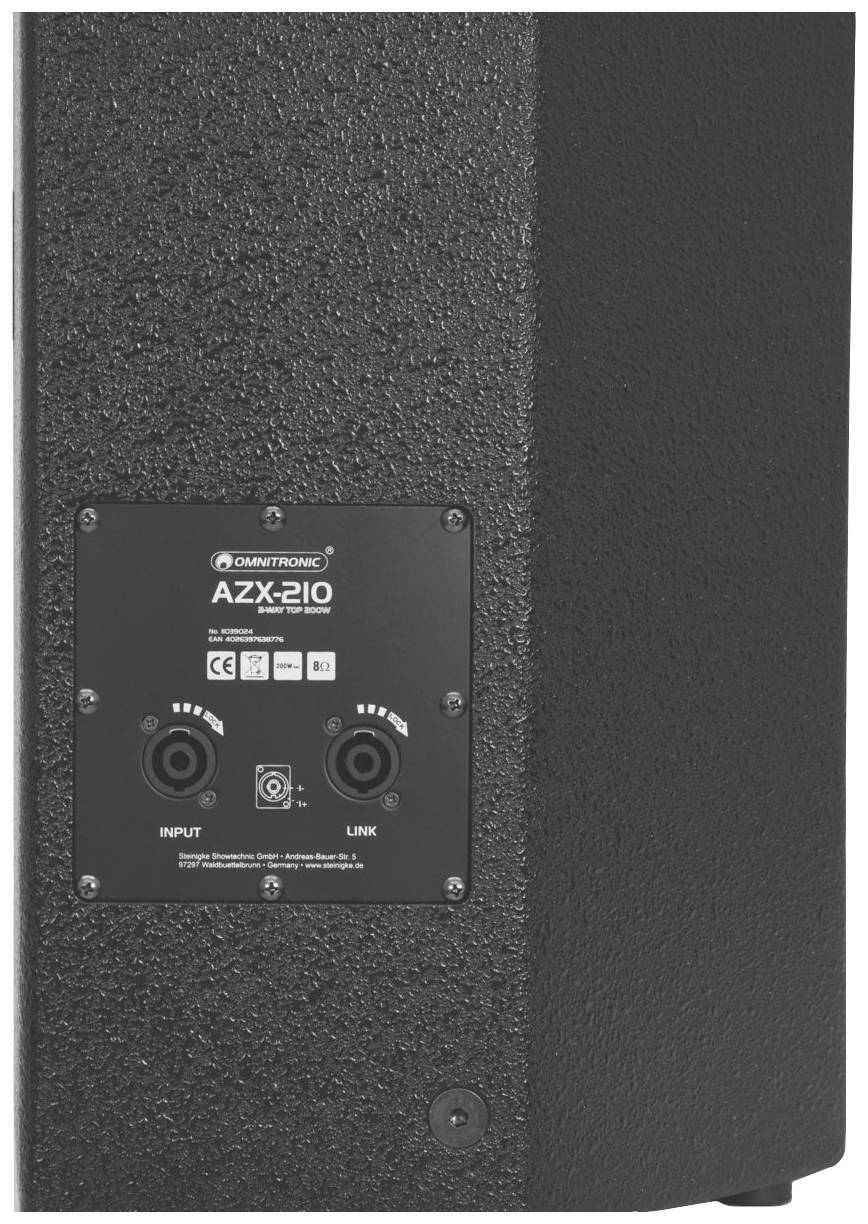

- Connections: Speaker via 2 x speaker mounted sockets (W)
- Load carrying capacity: 400W
- Nominal: 200W RMS
- Sensitivity 93 dB (1W/1m)
- Max. Sound pressure level 116 dB
- Recording system: Ø 35mm (0°/5°)
- 1 x 10" woofer
- Speaker type: Compact box
- Material: MDF (medium density fiber board), 15 mm
- 2" moving coil woofer
- Carrying handle:1 pieces
- Flying points 7 x M10 thread
- 1 x 1" compression driver tweeter
Scope of delivery
- Compact box
- User manual
