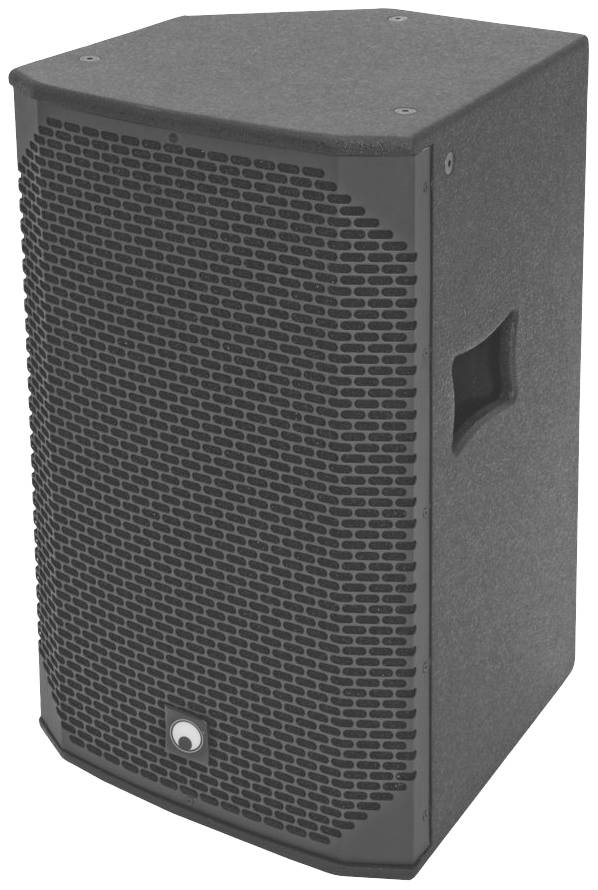

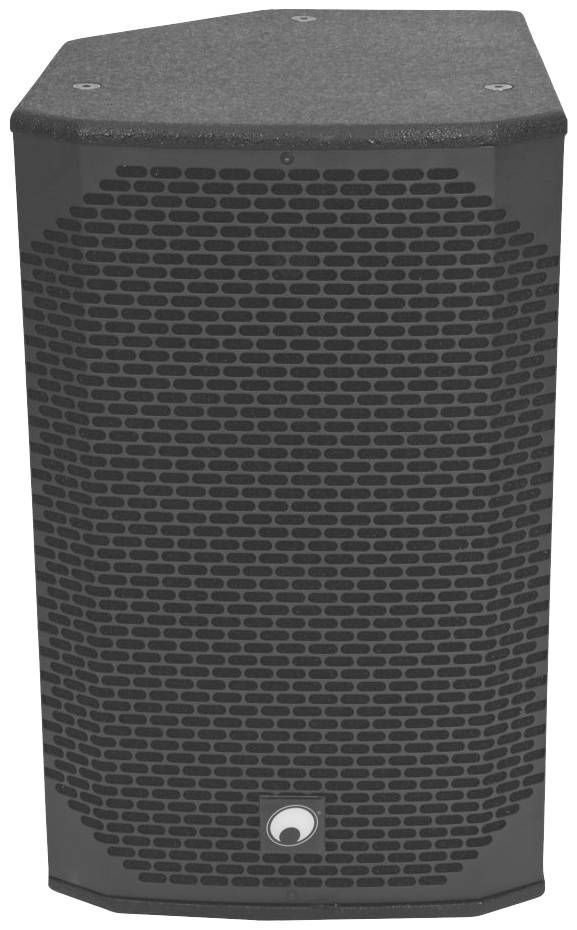

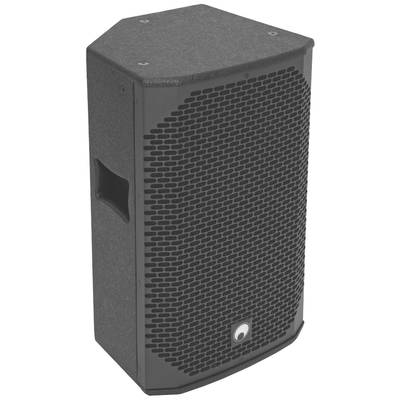

Omnitronic AZX-212 Passive PA speaker 30 cm 12 inch 200 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic AZX-212 2-way top 200W
- RMS capacity:200 W
- Max. load (W):400 W
- 12 inch
- 94 dB
Technical specifications
- Product type
Passive PA speaker
- RMS capacity
200 W
- Max. load
400 W
- Speaker size (cm)
30 cm
- Speaker size (inch)
12 inch
- Features
Can be used as a stage monitor
- Interfaces
Speakon socket
- Impedance
8 Ω
- Max. sound pressure
94 dB
- Frequency range
55 - 18000 Hz
- Dim
(W x H x D) 35.2 x 62.2 x 37 cm
- Weight
18 kg
- Content
1 pc(s)
- Width
35.2 cm
- Height
62.2 cm
- Depth
37 cm
- Factory colour
Black
- Wireless charging
No
- Max. power
400 W
- RMS power
200 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131334 Omnitronic AZX-212 Passive PA speaker 30 cm 12 inch 200 W 1 pc(s)
Description
Passive box with 12" woofer, 1.35" driver and 200 W RMS
2-way bass reflex system with 30 cm woofer and 3.5 cm titanium tweeter
This text is machine translated.
2-way bass reflex system with 30 cm woofer and 3.5 cm titanium tweeter
This text is machine translated.
Features
- Double flange
- With flight points
- Metal grid in black with acoustic foam

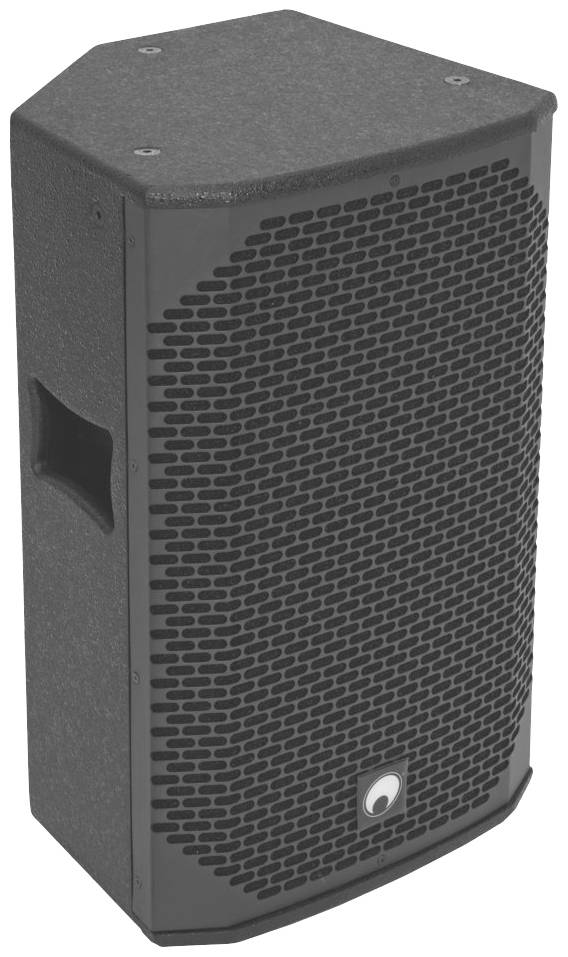

- Robust handle
- Possible application: Standing; flying; monitoring; on stand
- Frequency range 55 18000 Hz
- Impedance 8 Ohm

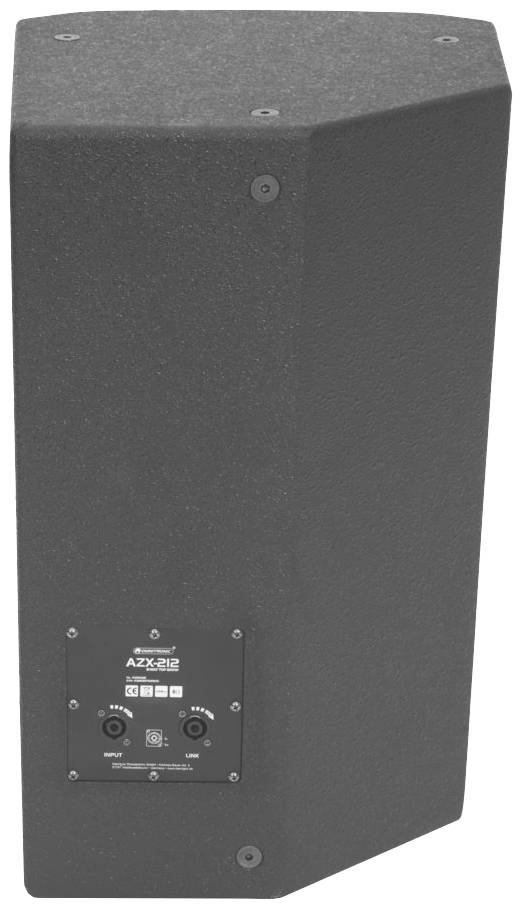

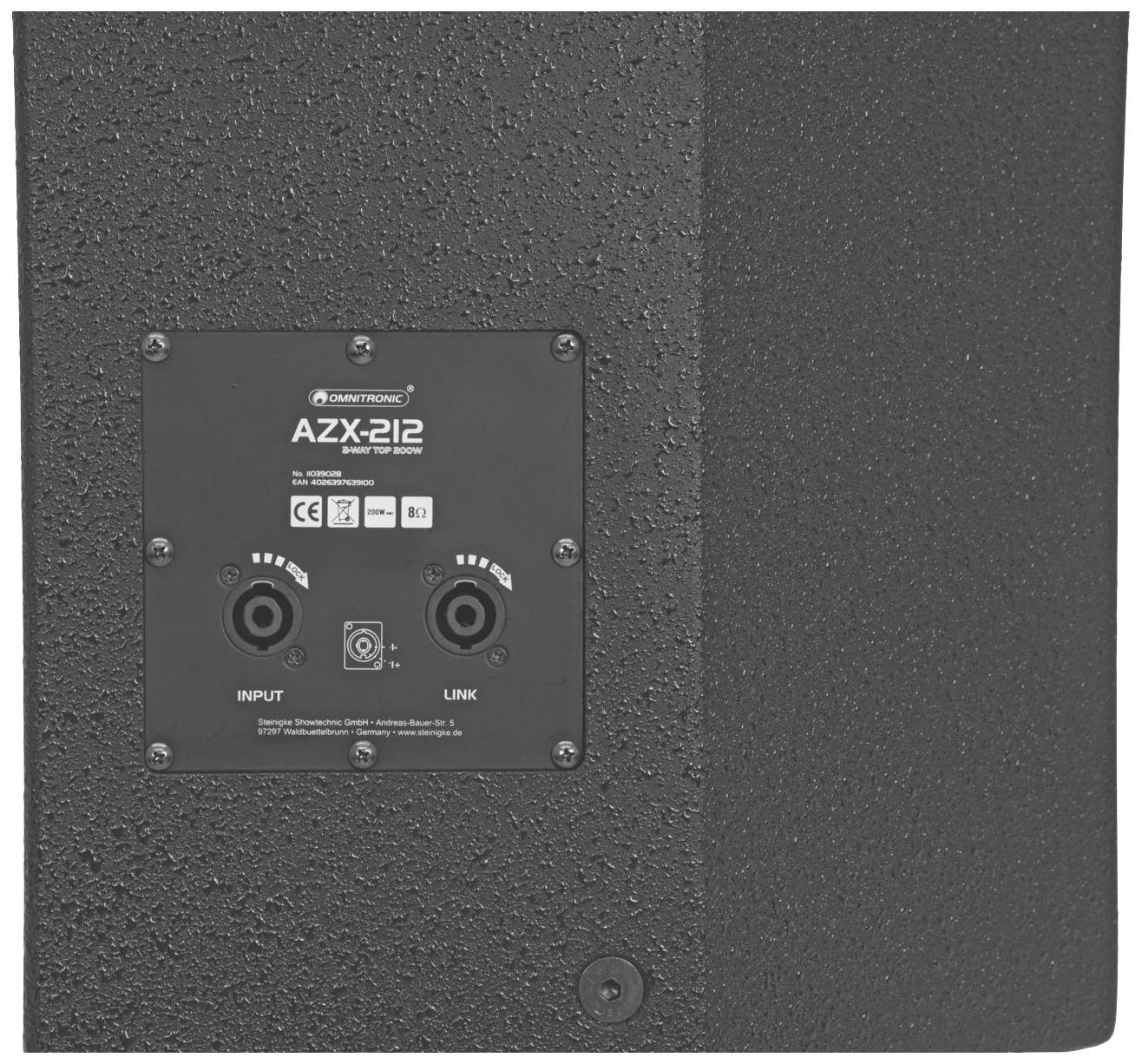

- Connections: Speaker via 2 x speaker mounted sockets (W)
- Load carrying capacity: 400W
- Nominal: 200W RMS
- Sensitivity 94 dB (1W/1m)
- Recording system: Ø 35mm (0°/5°)
- 1 x 12" woofer with ferrite magnet
- Speaker type: Compact box
- Material: MDF (medium density fiber board), 15 mm
- 2" moving coil woofer
- Carrying handle:1 pieces
- Flying points 7 x M10 thread
- 1.35" moving coil compression driver - high tone
Scope of delivery
- Top section
- User manual
