Omnitronic AZX-215 Passive PA speaker 38 cm 15 inch 300 W 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic AZX-215 2-way top 300W
- RMS capacity:300 W
- Max. load (W):600 W
- 15 inch
Technical specifications
- Product type
Passive PA speaker
- RMS capacity
300 W
- Max. load
600 W
- Speaker size (cm)
38 cm
- Speaker size (inch)
15 inch
- Features
Can be used as a stage monitor
- Impedance
8 Ω
- Frequency range
50 - 20000 Hz
- Dim
(W x H x D) 43 x 73 x 43 cm
- Weight
23.4 kg
- Content
1 pc(s)
- Width
43 cm
- Height
73 cm
- Depth
43 cm
- Factory colour
Black
- Wireless charging
No
- Max. power
600 W
- RMS power
300 W
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3131335 Omnitronic AZX-215 Passive PA speaker 38 cm 15 inch 300 W 1 pc(s)
Description
Passive box with 15" woofer, 1.75" titanium driver and 300 W RMS
2-way bass reflex system with 38 cm woofer and 4.5 cm titanium tweeter
This text is machine translated.
2-way bass reflex system with 38 cm woofer and 4.5 cm titanium tweeter
This text is machine translated.
Features
- With flight points
- Metal grid in black with acoustic foam
- 2 robust carry handles
- Possible application: Standing; flying; monitoring; on stand
- Double flange
- Frequency range 50 20000 Hz
- Impedance 8 Ohm

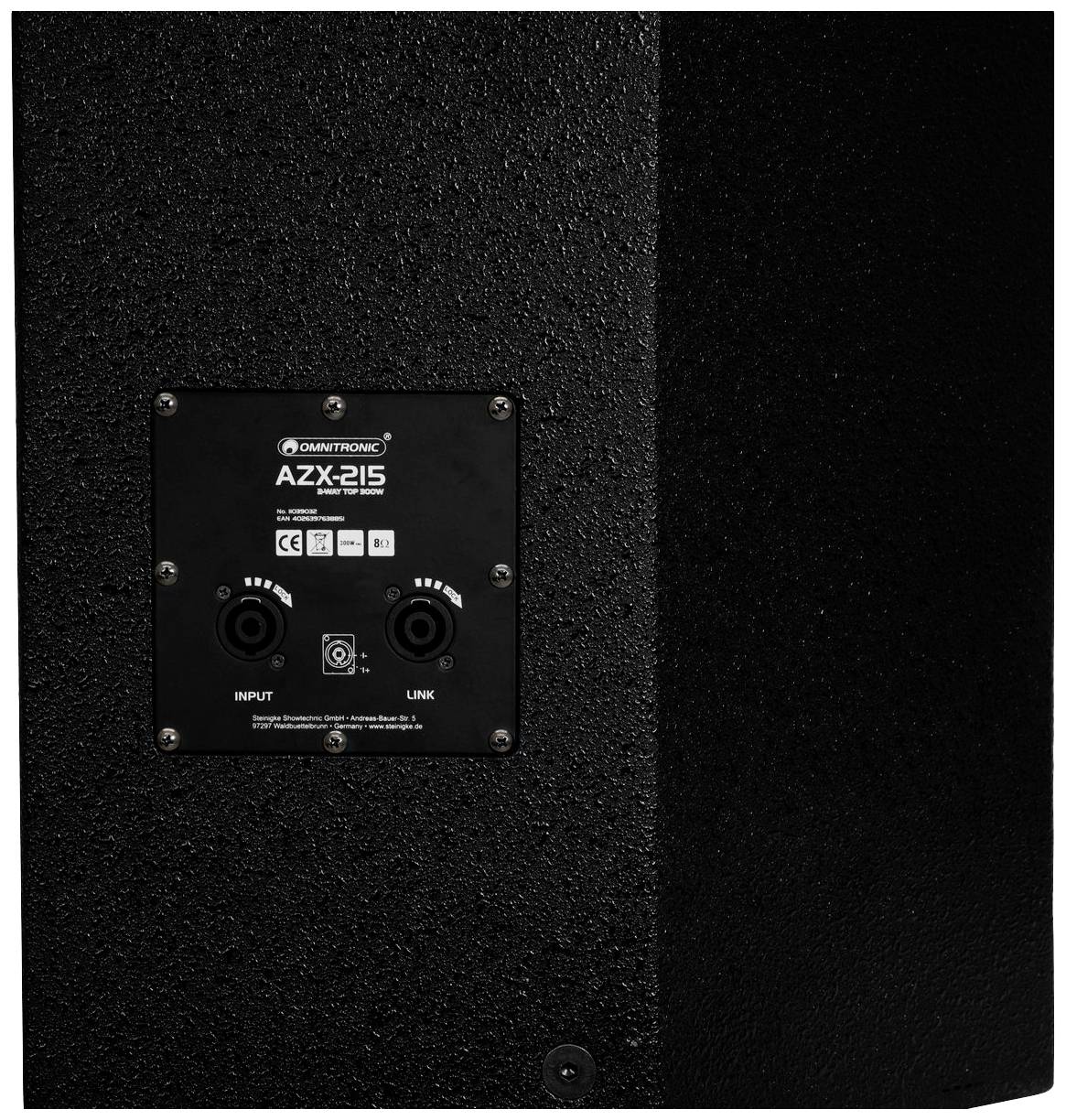

- Connections: Speaker via 2 x speaker mounted sockets (W)
- Load carrying capacity: 600W
- Nominal 300W RMS
- Sensitivity 94 dB (1W/1m)
- Recording system: Ø 35mm (0°/5°)
- 1 x 15" woofer
- Speaker type: Compact box
- Material: MDF (medium density fiber board), 15 mm
- Carrying handle:2 pieces
- Flying points 7 x M10 thread
- 3" low-frequency voice coil: 3" low-frequency voice coil
- 1 x 1.75" compression driver tweeter
Scope of delivery
- User manual
- Top section
