Omnitronic CS-6 Flush mount speaker 5 W 100 V Black 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 30.24 / piece)
€ 30.24
plus VAT.
14-day return policy included
Highlights & Details

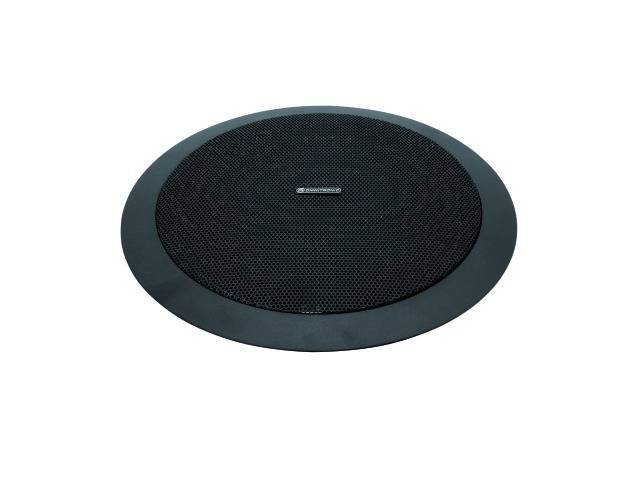

Omnitronic CS-6 ceiling speaker black
- Ceiling-mounted loudspeaker
Technical specifications
- Input voltage: 100 V
- Components: 16.5 cm loudspeakers (6.5)

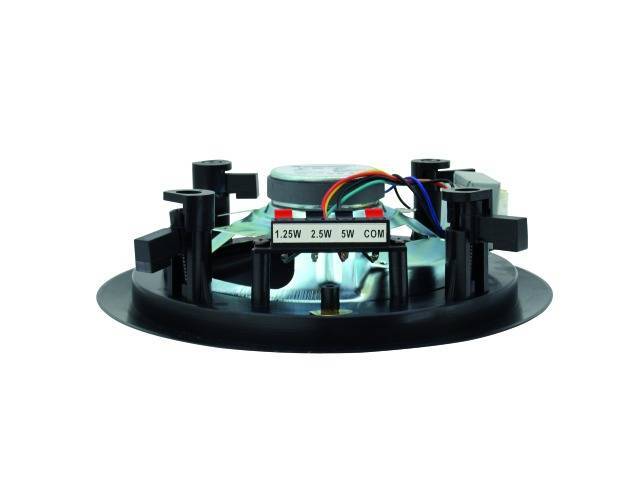

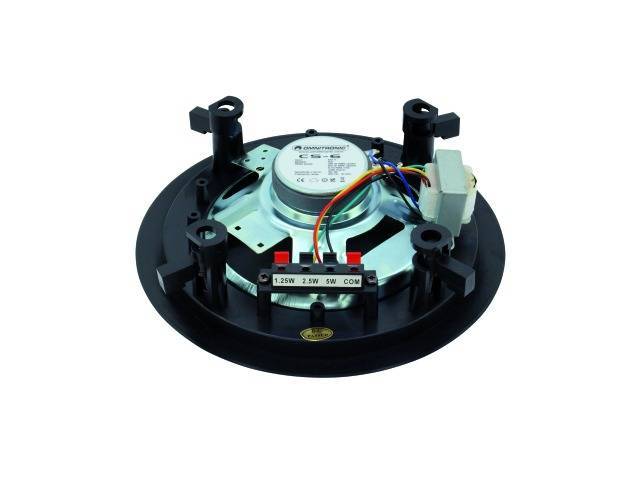

- Rated power: 1.25W RMS (green)
- 2.5 W RMS (yellow)
- 5 W RMS (red)
- COM (black)
- Sensitivity (1W, 1m): 90 dB
- Frequency range: 100 Hz - 10 kHz
- Dimensions (D x H): 230 x 70 mm
- Installation cut-out: 195 mm dia.
- Weight 760 g
- Product type
Flush mount speaker
- Max. load
5 W
- Power levels
1.25 W
2.5 W
5 W
- Max. sound pressure
90 dB
IP6K9K
- Operating voltage
100 V
- Type
Round
- Factory colour
Black
- Material
Plastic
Metal
- Recess diameter
19.5 cm
- Depth
70 mm
- (Ø)
23 cm
- Weight
800 g
- Dim
(Ø x D) 23 cm x 70 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313389 Omnitronic CS-6 Flush mount speaker 5 W 100 V Black 1 pc(s)
Description

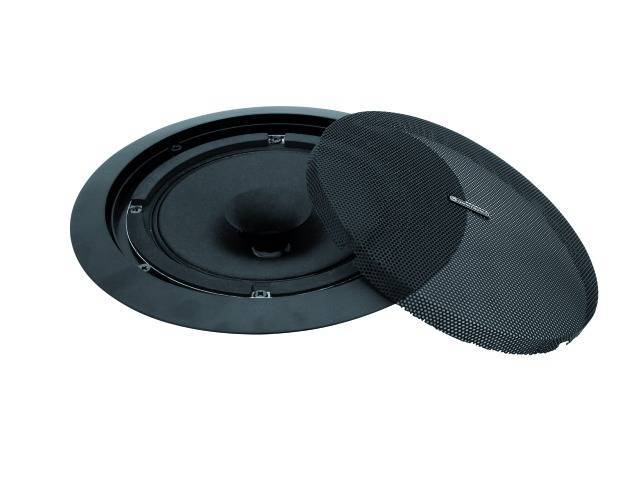

Ceiling-mounted loudspeaker · 16.5 cm wide-band speaker (6.5") · 100-V transformer with 3 power taps · ABS-plastic casing with metal grille · For speech and background music in indoor areas
