Omnitronic CS-8 Flush mount speaker 10 W 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 31.92 / piece)
€ 31.92
plus VAT.
14-day return policy included
Highlights & Details

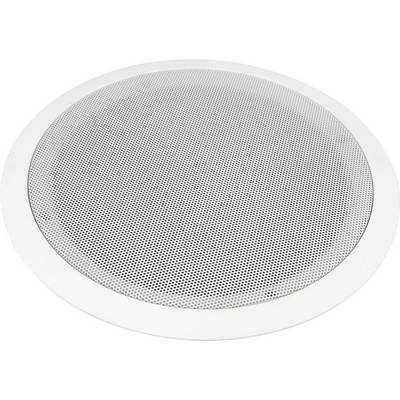

Omnitronic CS-8 Ceiling Loudspeaker white
- Ceiling mounted loudspeaker white
- This text is machine translated.
Technical specifications
- Input voltage: 100 V
- Components: 20 cm loudspeaker (8)
- Power rating 2.5W RMS (green)
- 5 W RMS (yellow)
- 10 W RMS (red)
- COM (black)
- Sensitivity (1 W, 1 m): 92 dB
- Frequency range 50 Hz - 18 kHz
- Dimensions (D x D) 275 x 85 mm
- Mounting cut-out 235 mm ø
- Weight 1.2 kg
- Product type
Flush mount speaker
- Max. load
10 W
- Max. sound pressure
92 dB
IP6K9K
- Operating voltage
100 V
- Type
Round
- Factory colour
White
- Material
Plastic
Metal
- Recess diameter
32.5 cm
- Depth
85 mm
- (Ø)
27.5 cm
- Weight
1.2 kg
- Dim
(Ø x D) 27.5 cm x 85 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313304 Omnitronic CS-8 Flush mount speaker 10 W 100 V White 1 pc(s)
Description
Features
- Ceiling mounted loudspeaker white
- 20 cm broadband loudspeaker (8")
- 100 V transformer with 3 power taps
- ABS-plastic casing with metallic protective grillee
- For speech and background music indoors.
