Omnitronic CSE-8 Flush mount full range speaker 10 W White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- RMS. Power 10 W
- Sensitivity 93 dB
- Impedance: ELA technology 100 V
- Power tapping: 5 W; 10 W RMS can be selected via screw clamp
- 1" x 8" wideband speakers
- Speaker type: Built-in speaker
- Material: ABS acrylonitrile-butadiene-styrene copolymers
- Colour: White, scratch and impact-resistant
- Installation dimensions Ø 21.5 cm
- Assembly: Easy to install
- Installation depth: 90 mm
- Product type
Flush mount full range speaker
- Type
Round
- RMS capacity
10 W
- Max. load
10 W
- Power levels
5 W; 10 W RMS W
- Max. sound pressure
106 dB
- Features
Recessed speaker
- Frequency range
100 - 15000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Acrylonitrile butadiene styrene
- Weight
0.95 kg
- (Ø)
230 mm
- Length
90 mm
- Dim
(Ø x L) 230 mm x 90 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729778 Omnitronic CSE-8 Flush mount full range speaker 10 W White 1 pc(s)
Description

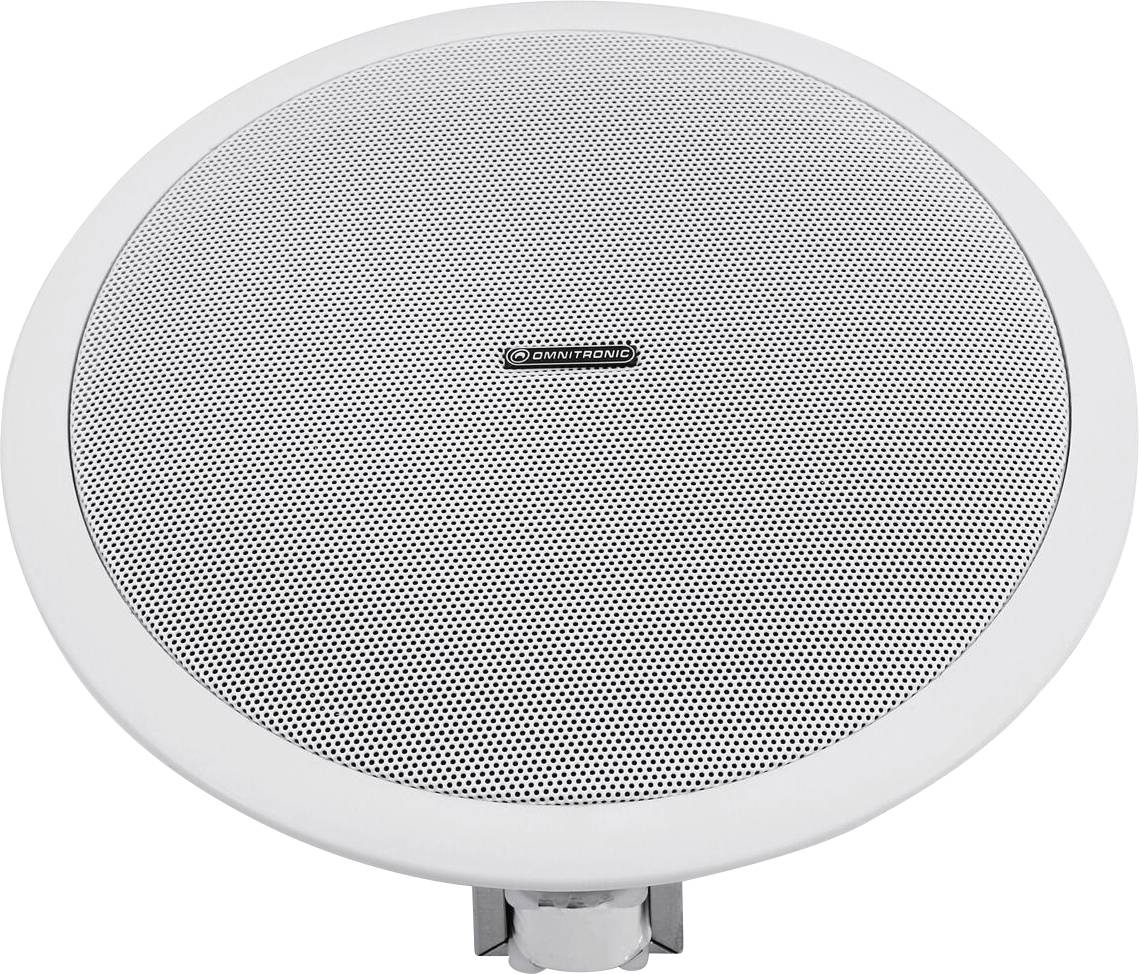

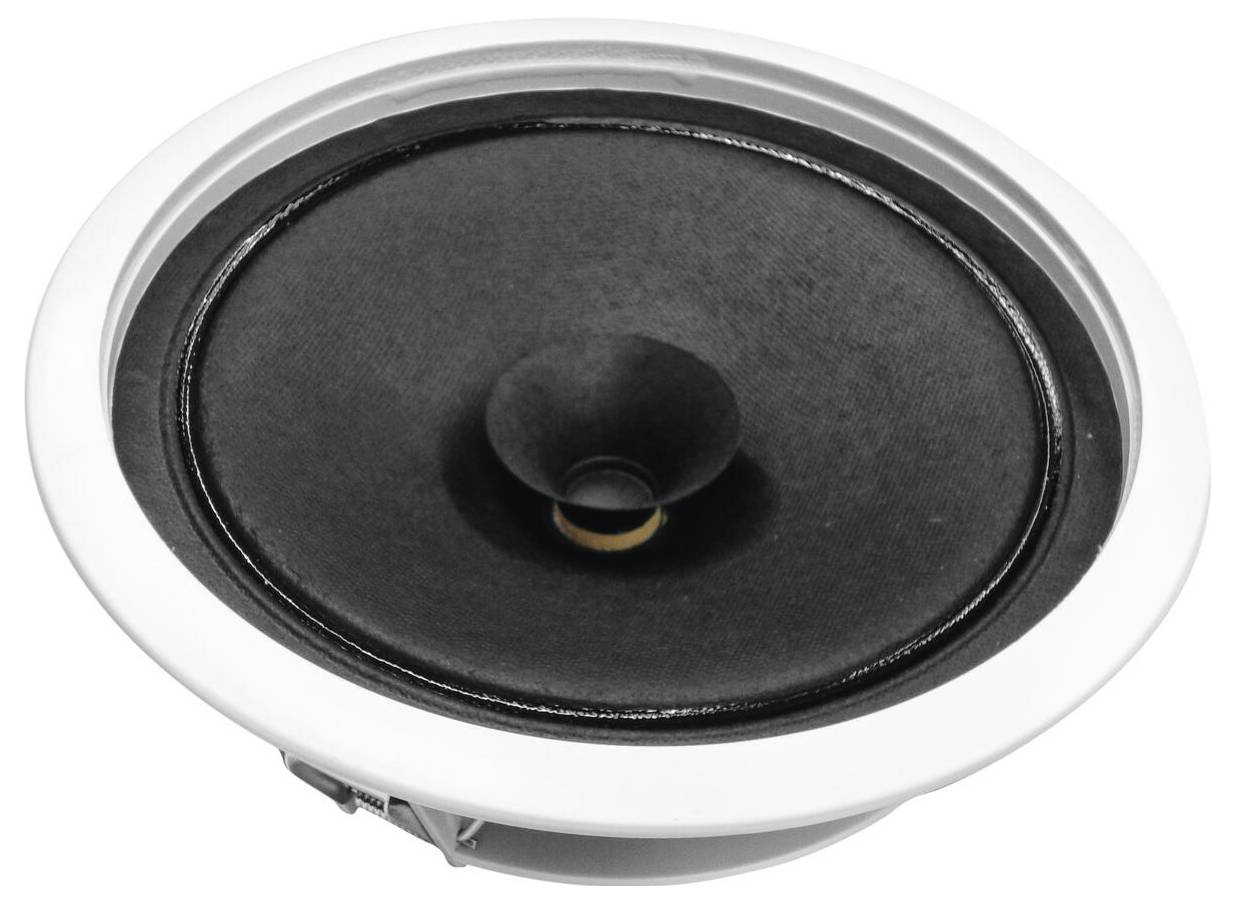

8"-broadband in-built loudspeaker, ELA technology 100V, 10 W RMS, Ø 21.5 cm. 20 cm double cone speaker (8"). Easy to install, similar to common panel-mounted lights. For voice and background music indoors. Easy to Set Up Metallic grille in white. Scratch and impact-proof. Applications include: Installation; restaurants, bars and hotels; sports centers/gyms.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x speaker
- 1 x Operating manual
