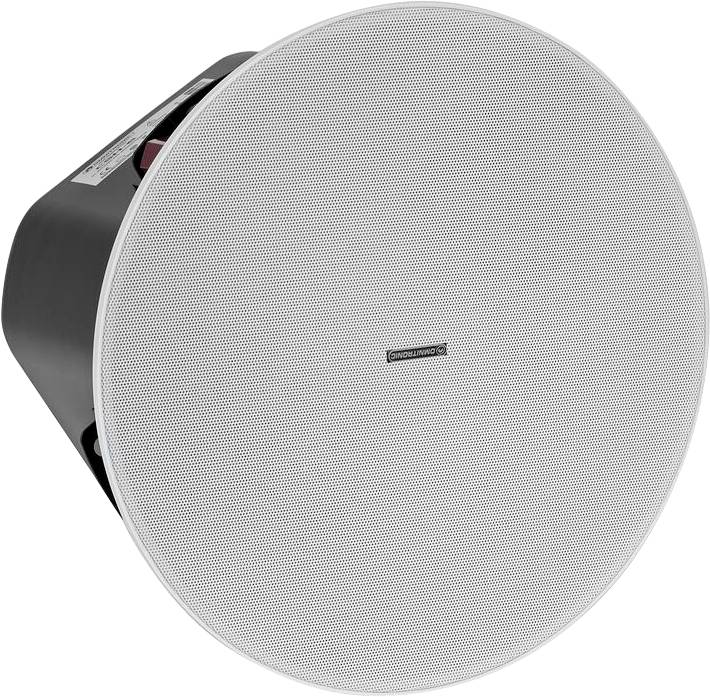

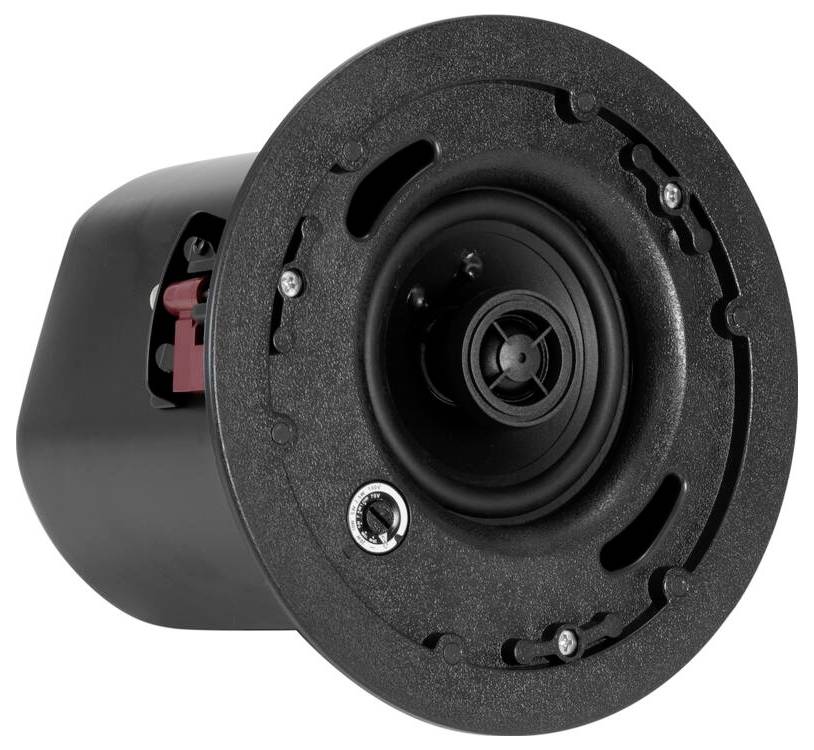

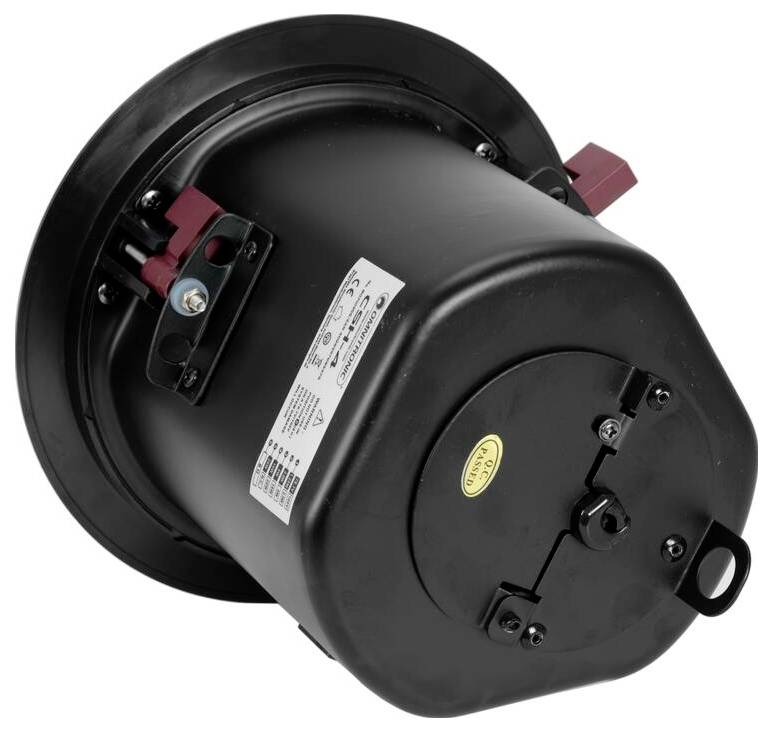

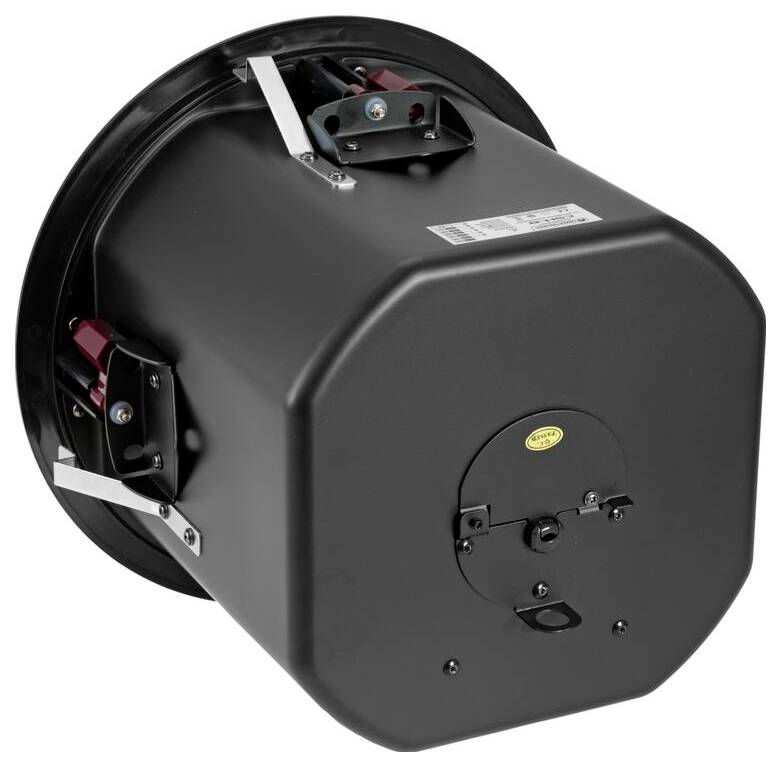

Omnitronic CSH-4 2-way coaxial flush mount speaker kit 20 W 8 Ω White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- POWER RATING 20 W RMS (100V PA)
- Sensitivity 87 dB
- Impedance: ELA technology 100 V; 8 Ohm
- Power tap: 2.5 W; 5 W; 10 W; 20 W RMS can be selected via selector switch
- 1 x 4" woofer; 1" moving coil woofer; 1 x 0.75" tweeter
- Speaker type: Built-in speaker
- Colour: White
- Installation dimensions Ø 18 cm
- Assembly: Easy to install
- Product type
2-way coaxial flush mount speaker kit
- Type
Round
- RMS capacity
20 W
- Max. load
20 W
- Power levels
2.5 W; 5 W; 10 W; 20 W RMS W
- Impedance
8 Ω
- Max. sound pressure
87 dB
- Features
Recessed speaker
- Frequency range
90 - 20000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Plastic
- Weight
2.10 kg
- (Ø)
204 mm
- Length
18 cm
- Dim
(Ø x L) 204 mm x 18 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729779 Omnitronic CSH-4 2-way coaxial flush mount speaker kit 20 W 8 Ω White 1 pc(s)
Description
2-way coaxial loudspeaker, LF: 4" HF: 0.75", ELA technique 100V, 40 W RMS, Ø 18 cm. 2-way system with coaxial loudspeaker and crossover. Robust plastic housing with metal grille. Easy to Set Up Applications include: Installation; restaurants, bars and hotels; sports centers/gyms.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x device
- 1x user manual
- 1 x screw terminal.
