Omnitronic CSH-8 2-way coaxial flush mount speaker kit 60 W 8 Ω White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- POWER RATING 60 W RMS (100V PA)
- Sensitivity 92 dB
- Impedance: ELA technology 100 V; 8 Ohm
- Power tap: 7.5 W; 15 W; 30 W; 60 W RMS can be selected via selector switch
- 1 x 8" woofer; 1.35" moving coil woofer; 1 x 1" tweeter
- Speaker type: Built-in speaker
- Colour: White
- Installation dimensions Ø 29.2 cm
- Assembly: Easy to install
- Connections: Screw terminals
- Bass reflex design
- Product type
2-way coaxial flush mount speaker kit
- Type
Round
- RMS capacity
60 W
- Max. load
60 W
- Impedance
8 Ω
- Features
Recessed speaker
- Frequency range
55 - 20 000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Plastic
- Weight
5.20 kg
- (Ø)
320 mm
- Dim
(Ø) 320 mm
- Wireless charging
No
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729781 Omnitronic CSH-8 2-way coaxial flush mount speaker kit 60 W 8 Ω White 1 pc(s)
Description

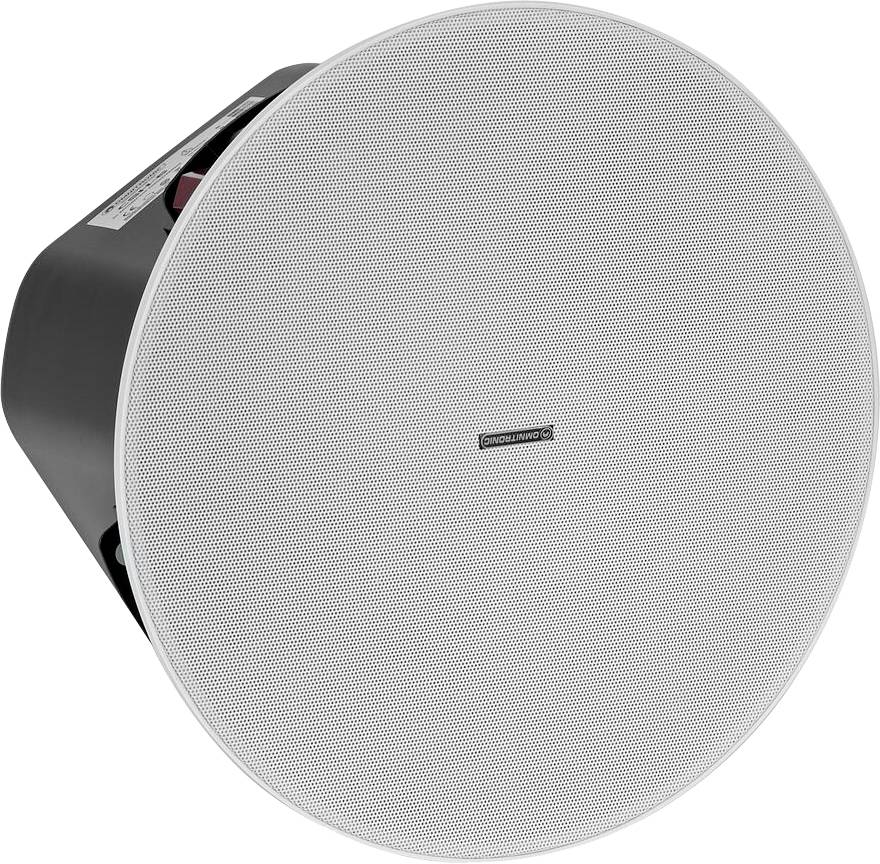

2-way coaxial loudspeaker, LF: 8" HF: 1", ELA technique 100V, 80 W RMS, Ø 29.2 cm. 2-way system with coaxial loudspeaker and crossover. Robust plastic housing with metal grille. Easy to Set Up Metallic grille in white. Applications include: Installation; restaurants, bars and hotels; sports centers/gyms.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x device
- 1x user manual
- 1 x screw terminal.
