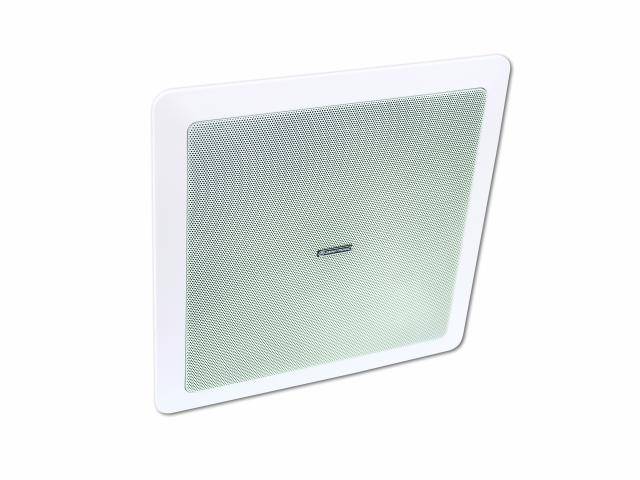

Omnitronic CSQ-6 Flush mount speaker 40 W 100 V White 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
14-day return policy included
Highlights & Details
Omnitronic CSQ-6 ceiling speakers
- Ceiling-mounted loudspeaker square
Technical specifications
- Input voltage: 100 V
- Components: 15 cm woofer (6), 1.5 cm (0.5") tweeter
- Rated power: 10 W RMS (green)
- 20 W RMS (yellow)
- 40W RMS (red)
- COM (blue)
- Sensitivity (1W, 1m): 87 dB, ±3 dB
- Frequency range 50 Hz - 18 kHz
- Dimensions (H x W x D): 255 x 255 x 95 mm
- Installation cut-out: 220 x 220 mm
- Weight: 2.2 kg
- Product type
Flush mount speaker
- RMS capacity
10 W
- Max. load
40 W
- Max. sound pressure
87 dB
- Features
2-way
IP6K9K
- Operating voltage
100 V
- Type
Square
- Factory colour
White
- Material
Plastic
Metal
- Recess width
22 cm
- Recess length
22 cm
- Width
25.5 cm
- Length
25.5 cm
- Depth
10 cm
- Weight
2.6 kg
- Dim
(L x W) 25.5 cm x 25.5 cm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313258 Omnitronic CSQ-6 Flush mount speaker 40 W 100 V White 1 pc(s)
Description
Ceiling-mounted loudspeaker square · 2-way coaxial loudspeaker with 15 cm (6") woofer and 1.5 cm tweeter (0.5") · 100-V transformer with 3 power taps · Easy mounting with clip fastening · Plastic casing with metal grille in white · For sound systems in the inner area
