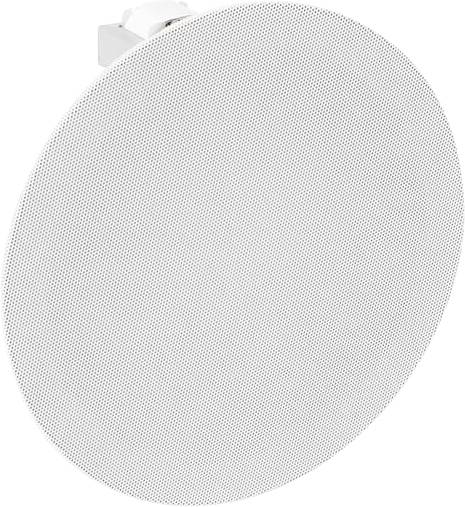

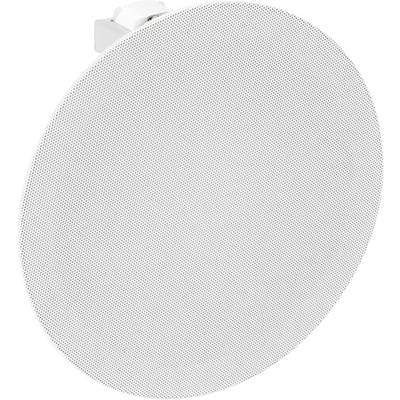

Omnitronic CSR-6W Flush mount full range speaker 6 W White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- RMS. Power 6 W
- Sensitivity 93 dB
- Impedance: ELA technology 100 V

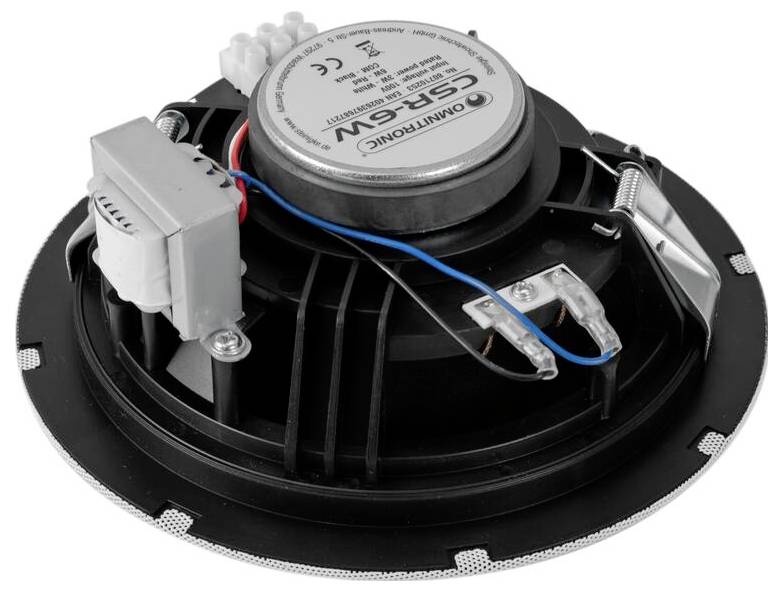

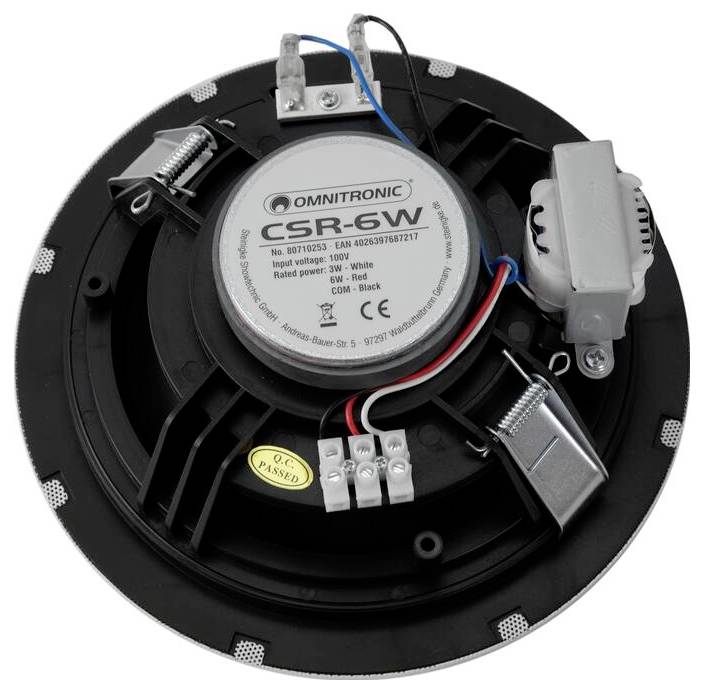

- Power tapping: 3 W; 6 W RMS can be selected via screw clamp
- 1 x 6" woofer
- Speaker type: Built-in speaker
- Material: plastic
- Colour: White
- Installation dimensions Ø 17 cm
- Product type
Flush mount full range speaker
- Type
Round
- RMS capacity
6 W
- Max. load
6 W
- Power levels
3 W; 6 W W
- Max. sound pressure
104 dB
- Features
Recessed speaker
- Frequency range
75 - 20000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Plastic
- Weight
0.76 kg
- (Ø)
193 mm
- Length
17 cm
- Dim
(Ø x L) 193 mm x 17 cm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729755 Omnitronic CSR-6W Flush mount full range speaker 6 W White 1 pc(s)
Description
6"-broadband in-built loudspeaker, ELA technology 100V, 6 W RMS, Ø 17 cm. 16.5 cm wide-band speaker (6.5"). Easy to install, similar to common panel-mounted lights. Impact-resistant polystyrene case with protective grille. For voice and background music indoors. Applications include: Installation; restaurants, bars and hotels; sports centers/gyms.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1x user manual
- 1 x speaker
