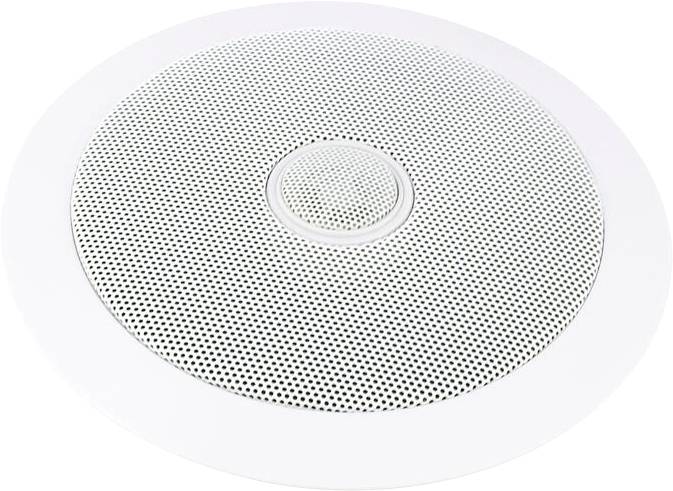

A circular ceiling speaker with a perforated grille, suitable for indoor audio broadcasting, shown from a top-down view.

A circular ceiling speaker with a perforated grille, suitable for indoor audio broadcasting, shown from a top-down view.

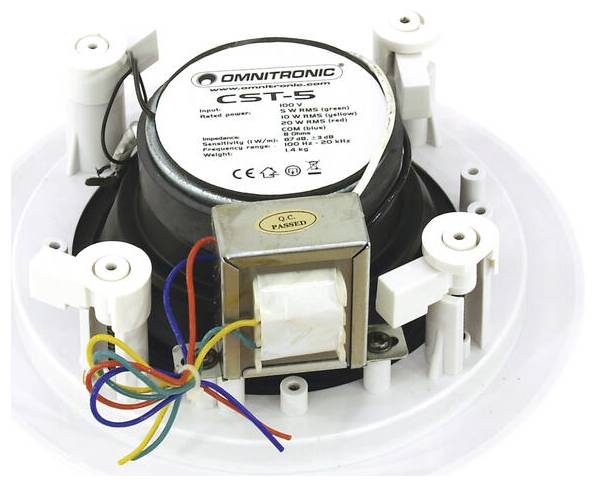

A ceiling speaker model CST 100 V by Omnitronic is shown with technical details visible on top, including wattage and impedance ratings.

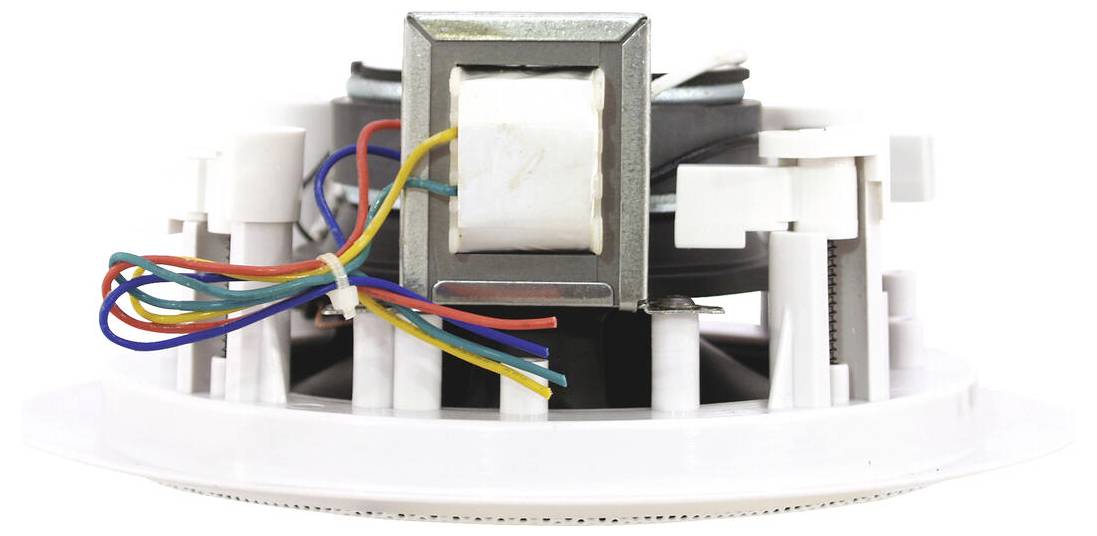

A round ceiling speaker showing internal wiring and components, featuring multicolored wires and a metal structure, viewed from the side.

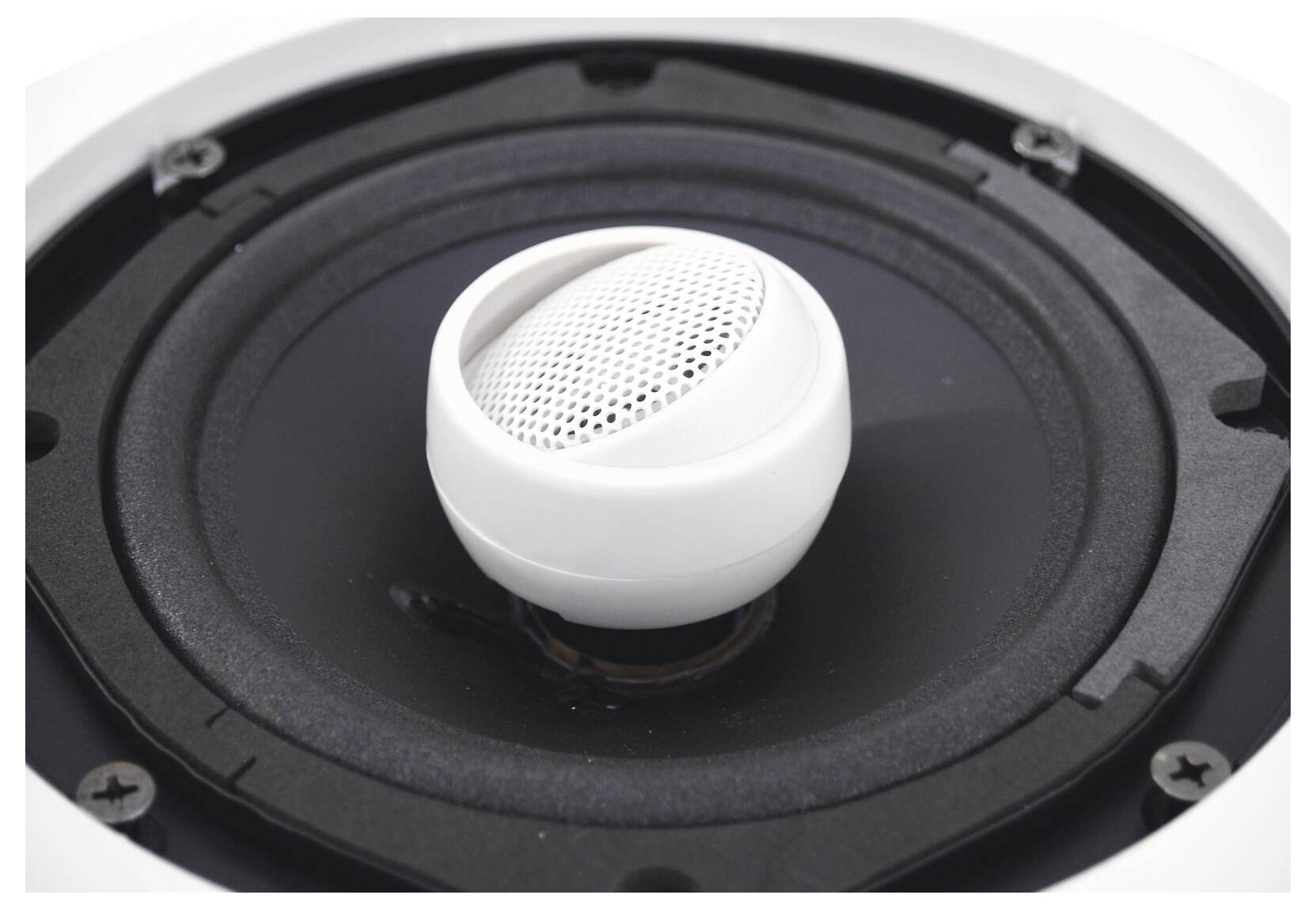

Close-up of a round audio speaker with a white dome-shaped tweeter in the center mounted in a black circular frame.

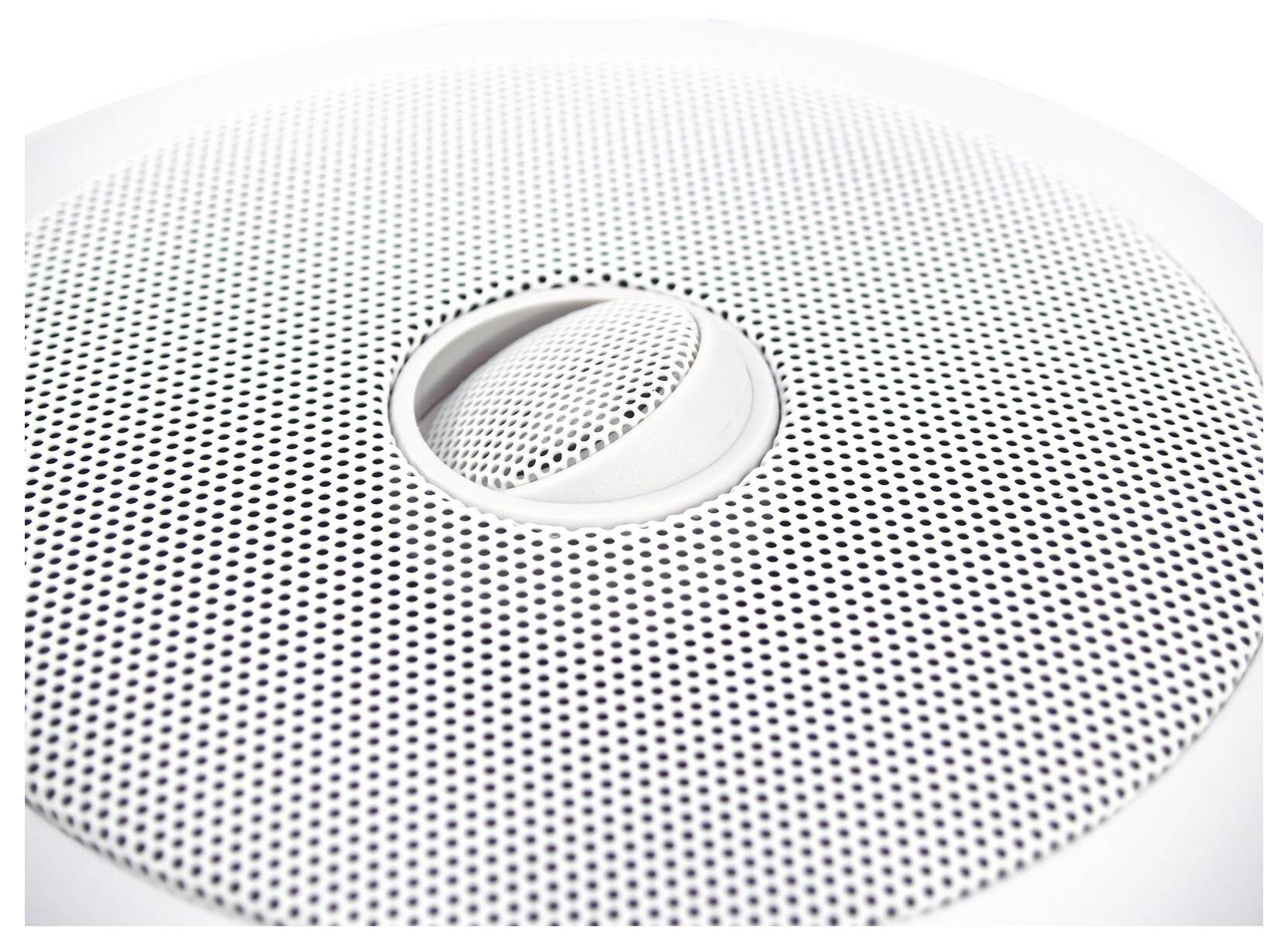

Close-up of a circular speaker grill with a central cone, featuring a pattern of small perforations.

1/5

Omnitronic

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

RMS. Power 20 W
Sensitivity 87 dB
Impedance: ELA technology 100 V
Power tap: 5 W; 10 W; 20 W RMS can be selected via open cable ends
1 x 5" woofer
Speaker type: Built-in speaker
Material: ABS acrylonitrile-butadiene-styrene copolymers
Colour: White, scratch and impact-resistant
Installation dimensions Ø 17 cm
Assembly: Easy to install

Product type: Flush mount speaker

Type: Round

RMS capacity: 20 W

Max. sound pressure: 96 dB

Frequency range: 100 - 20000 Hz

Factory colour: White

Weight: 1.30 kg

(Ø): 203 mm

Dim: (Ø) 203 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 3729777 Omnitronic CST-5 Flush mount speaker White 1 pc(s)

Description

5" flush-mounted loudspeaker, PA system 100V, 20 W RMS, Ø 17 cm. 2-way system with excellent sound playback. Rotatable tweeter For ceiling thicknesses between 10-40 mm, mounting section ø 170 mm. For voice and background music indoors. Easy to Set Up Scratch and impact-proof. Applications include: Installation; restaurants, bars and hotels; sports centers/gyms. You can find more information on this product under "Downloads" in the data sheet.

This text is machine translated.

Scope of delivery

1 x speaker
1 x Operating manual
