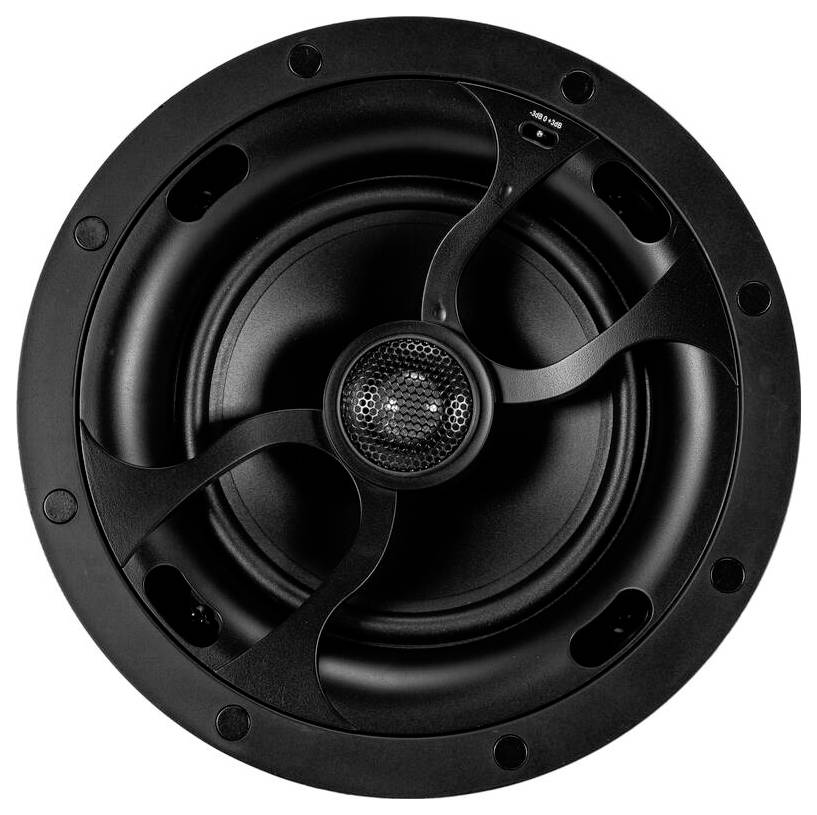

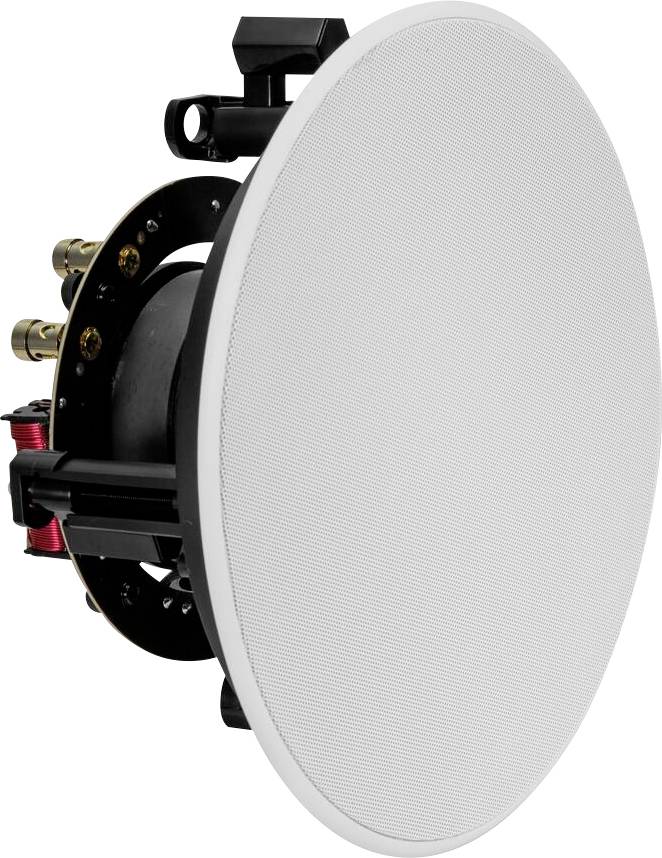

Omnitronic CST-608 2-way coaxial flush mount speaker kit 8 Ω White 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- RMS. Power 40 W
- Sensitivity 88 dB (1W/1m)
- Impedance 8 Ohm
- 1 x 6.5" woofer; 1" tweeter
- Speaker type: Built-in speaker
- Material: ABS acrylonitrile-butadiene-styrene copolymers
- Colour: White, scratch and impact-resistant
- Installation dimensions 12 cm Ø 20.7 cm
- Radiation characteristics: 105° Omni-directional
- Installation depth: 120 mm
- Product type
2-way coaxial flush mount speaker kit
- Type
Round
- RMS capacity
40 W
- Impedance
8 Ω
- Max. sound pressure
107 dB
- Frequency range
45 - 21000 Hz
- Factory colour
White
- Weight
1.93 kg
- (Ø)
248 mm
- Dim
(Ø) 248 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3729751 Omnitronic CST-608 2-way coaxial flush mount speaker kit 8 Ω White 1 pc(s)
Description

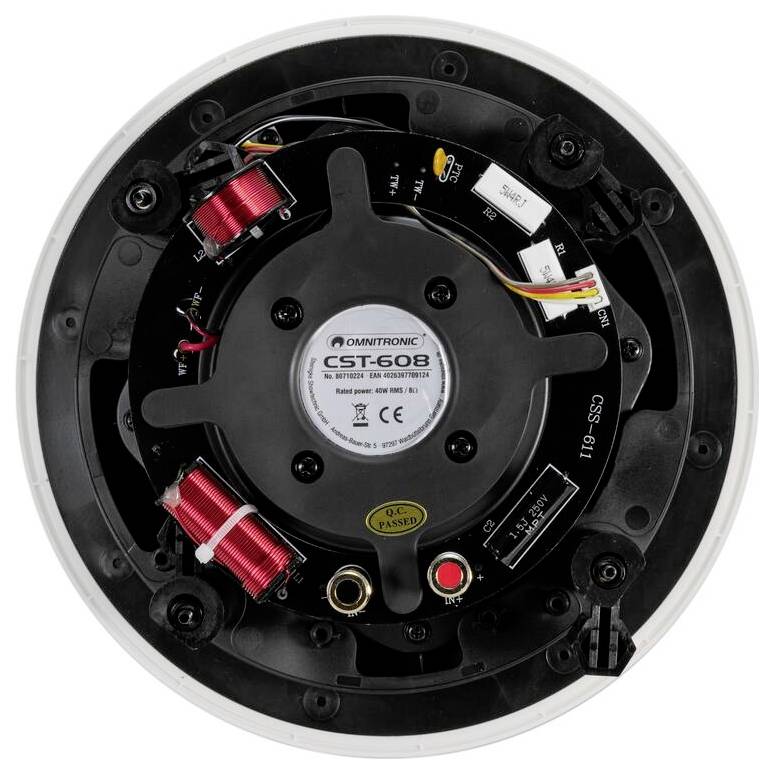

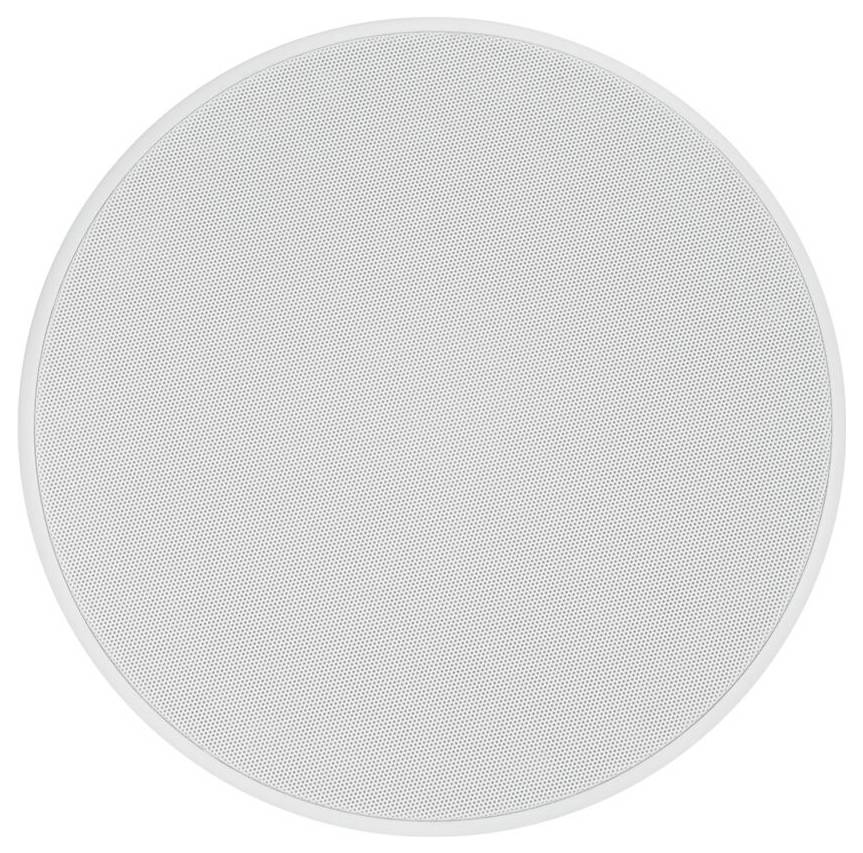

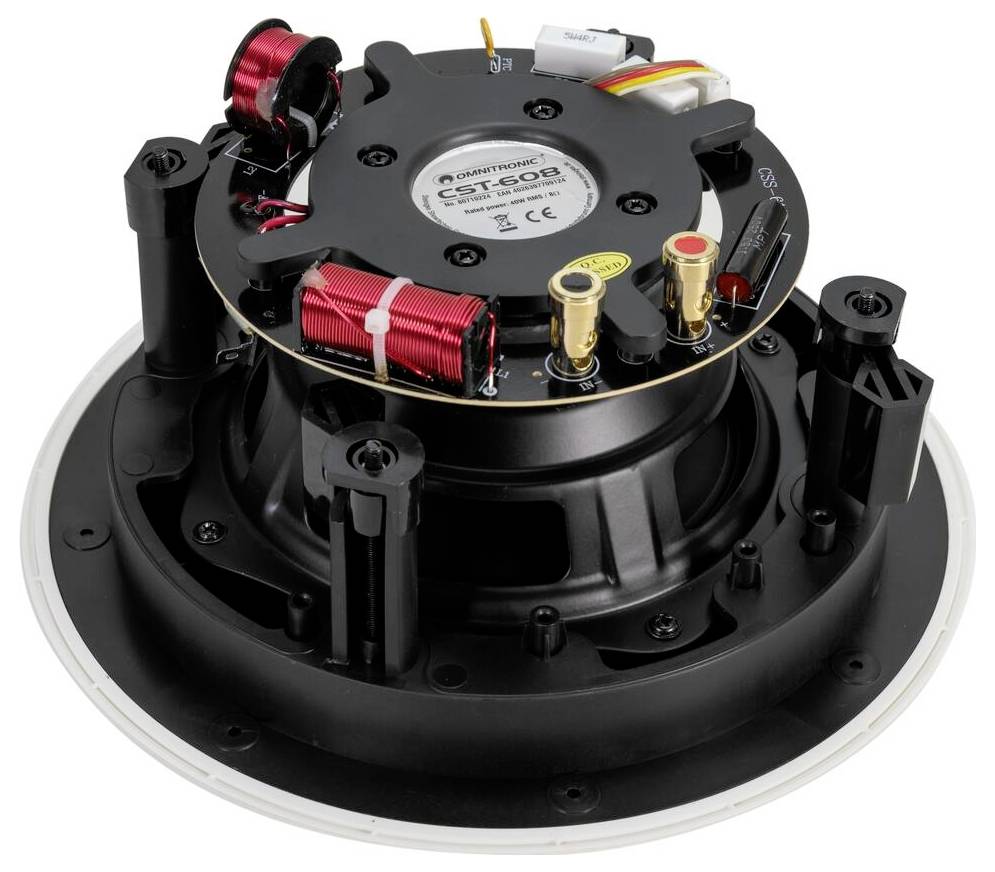

2-way coaxial loudspeaker, LF: 6.5" HF: 1", 8 ohm, 40 W RMS, 12 cmØ 20.7 cm. Excellent sound reproduction. With passive 2-way crossover filter including PTC high-frequency protection. Rotatable tweeter Switch for level adjustment -3 dB/0 dB/+3 dB. For voice and background music indoors. Metallic grille in white. Scratch and impact-proof. Applications include: Installation; restaurants, bars and hotels; sports centers/gyms.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x speaker
- 1 x Operating manual
