Omnitronic CSUB-8 In-ceiling speaker 120 W 8 Ω White 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

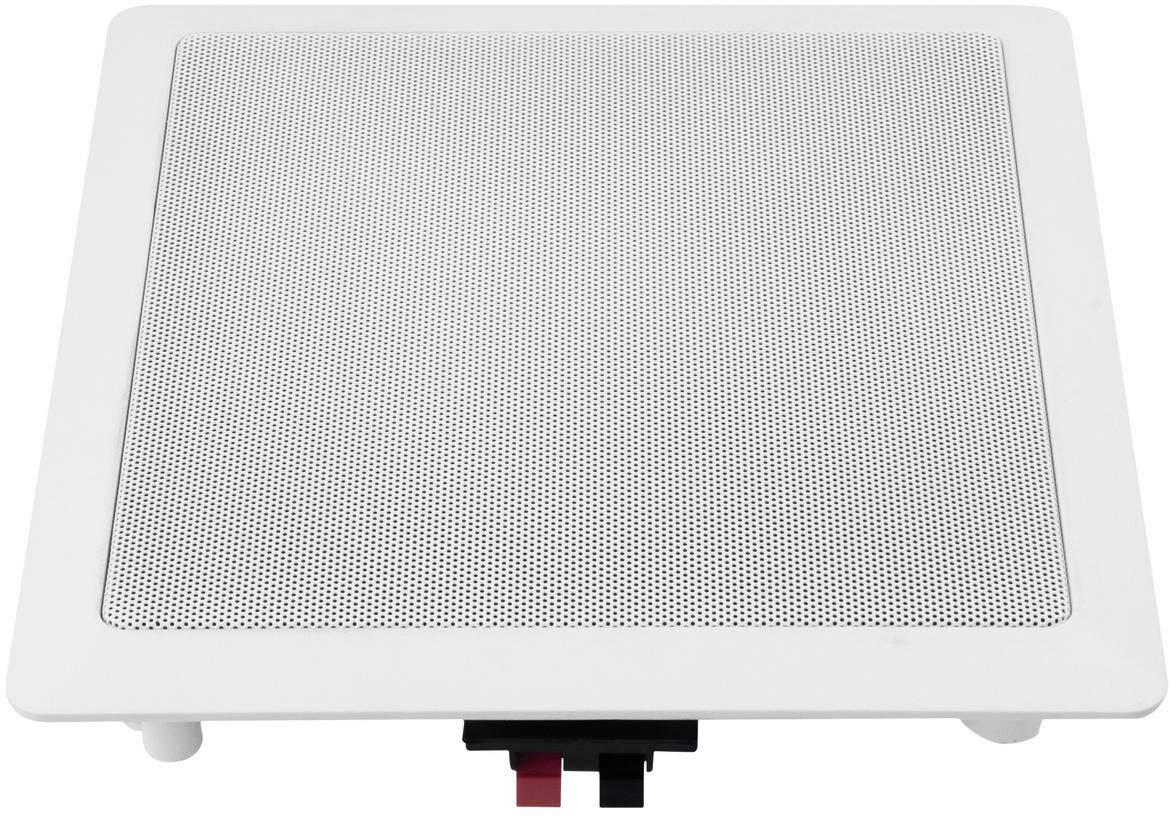

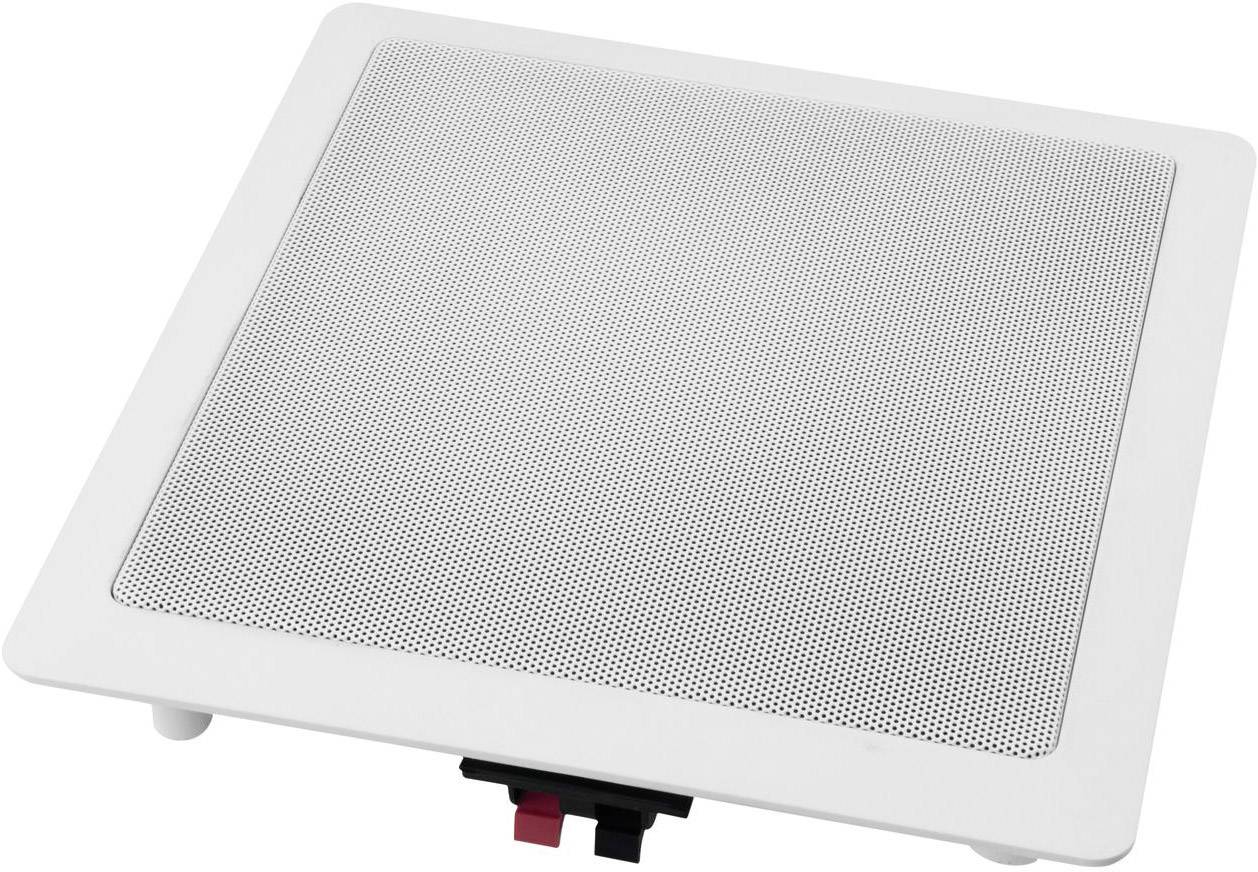

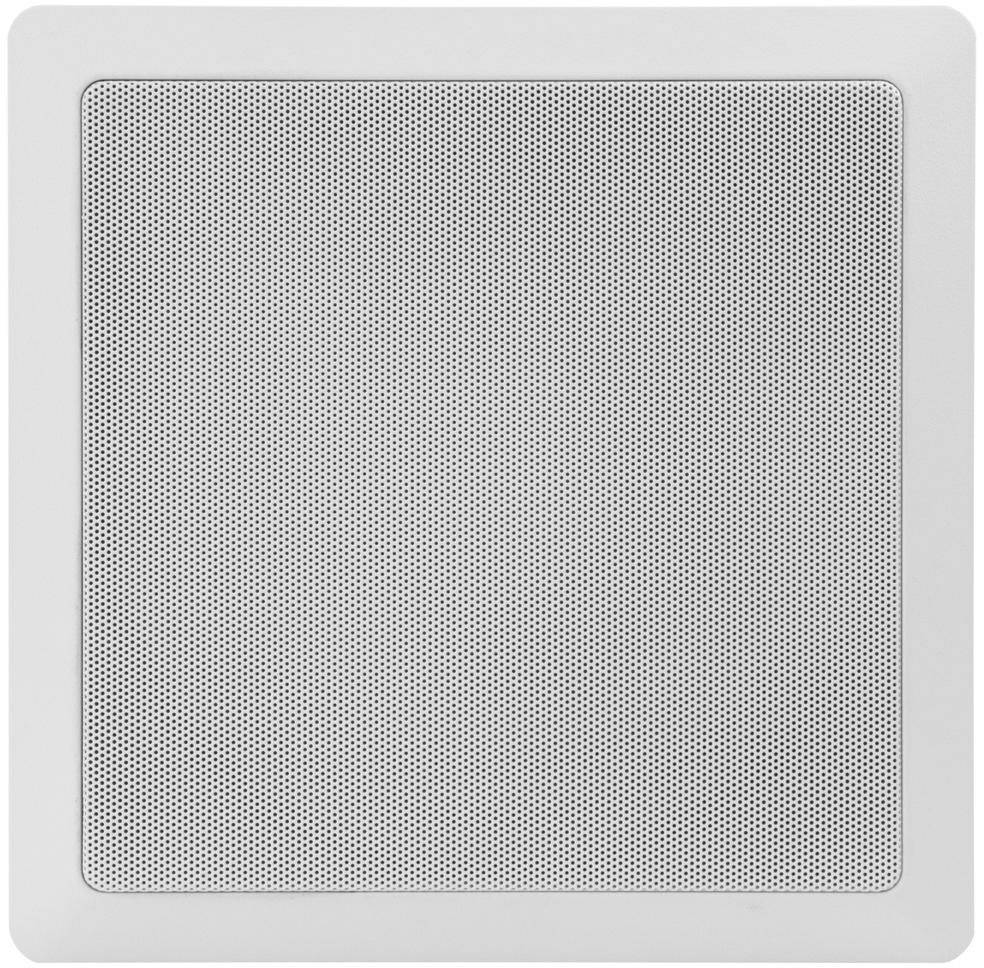

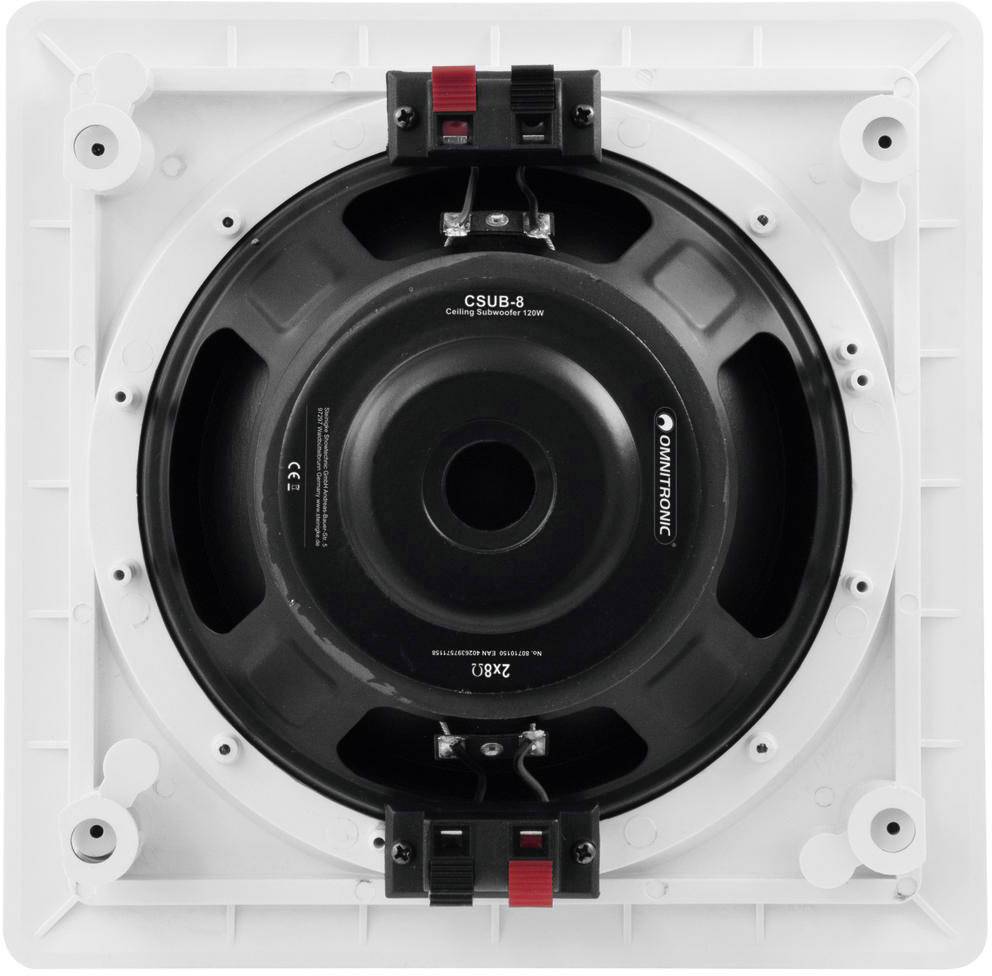

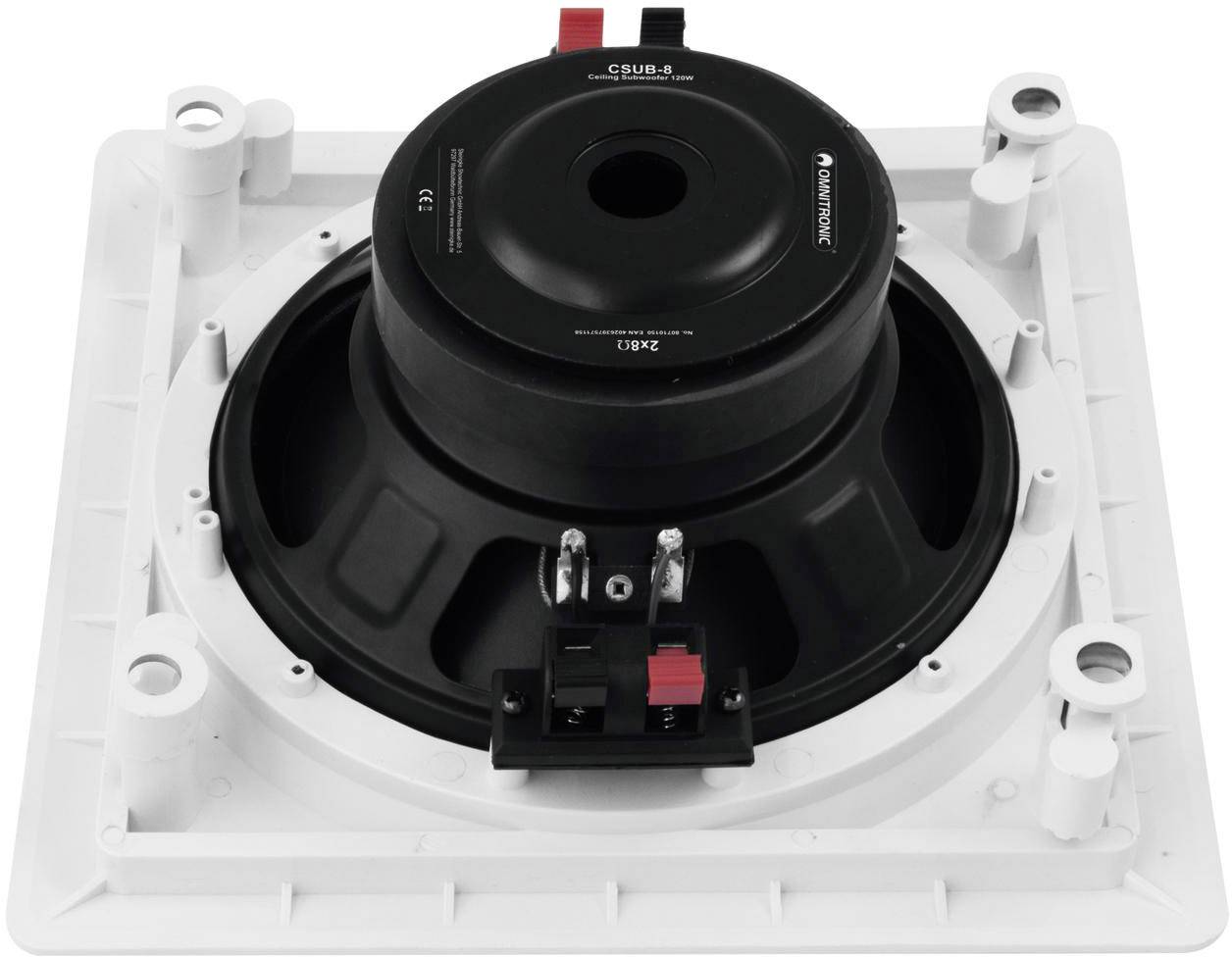

CSUB-8 Ceiling Subwoofer
- 8" flush-mounted loudspeaker
- Double voice coil
- 60 W RMS, 2 x 8 Ohm, 220 x 220 mm
- Built-in speaker for bass support of sound systems
Technical specifications
- Nominal load capacity: 60 W RMS load capacity: 120 W program components: 20 cm woofer (8"), 20 oz Magnet Connection: Spring Terminals impedance: 2 x 8 Ohm Sensitivity: 80 dB dimensions (L x W x H): 254 x 254 x 99 mm installation cut-out: 220 x 220 mm installation depth: 94 mm weight: 1.8 kg size of the low toner: 20 cm (8") Frequency range 40 - 5000 Hz Height: 9.9 cm depth: 25.4 cm Width: 25.4 cm loudspeaker control: 8 Ohm
- Product type
In-ceiling speaker
- Type
Square
- RMS capacity
60 W
- Max. load
120 W
- Impedance
8 Ω
- Max. sound pressure
80 dB
- Frequency range
40 - 5000 Hz
- Factory colour
White
- Material
Plastic
- Weight
1.8 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1875930 Omnitronic CSUB-8 In-ceiling speaker 120 W 8 Ω White 1 pc(s)
Description
CSUB-8 Ceiling Subwoofer
This text is machine translated.
This text is machine translated.
Features
- Double voice coil 2 x 8 Ohm
- Simple and secure mounting via screw terminals
- Flat profile for inconspicuous installation
- Plastic casing with metal grille
- For ceiling thicknesses up to 15 mm
- For system integration is a frequency crossover required
- Suitable transformers for use in 100-V systems are available as accessories.
