Omnitronic CSX-6 PA ceiling speaker 8 Ω White 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

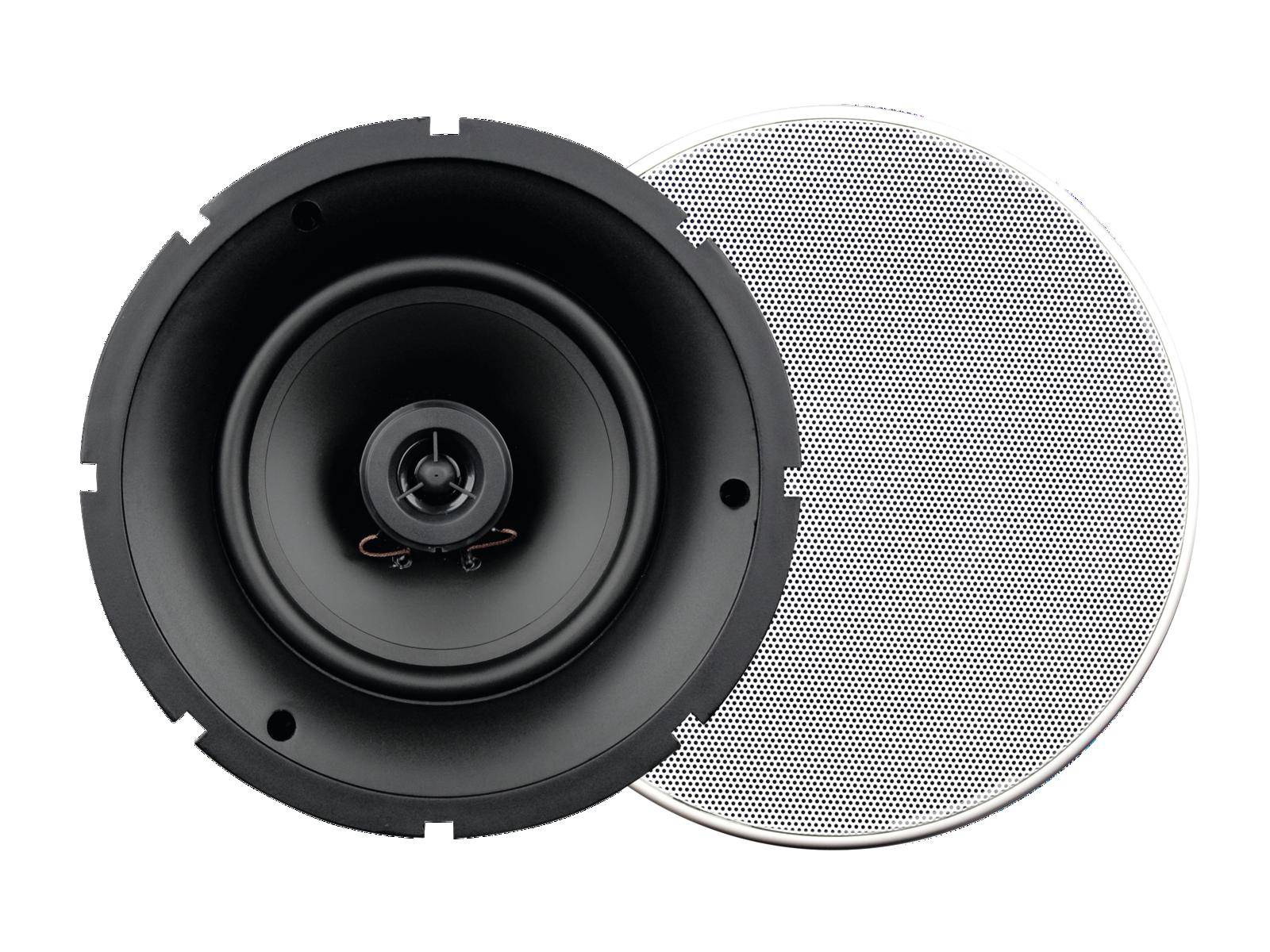

OMNITRONIC CSX-6 ceiling loudspeaker white
- 2-way coaxial speaker with excellent sound quality
- Rotatable tweeter

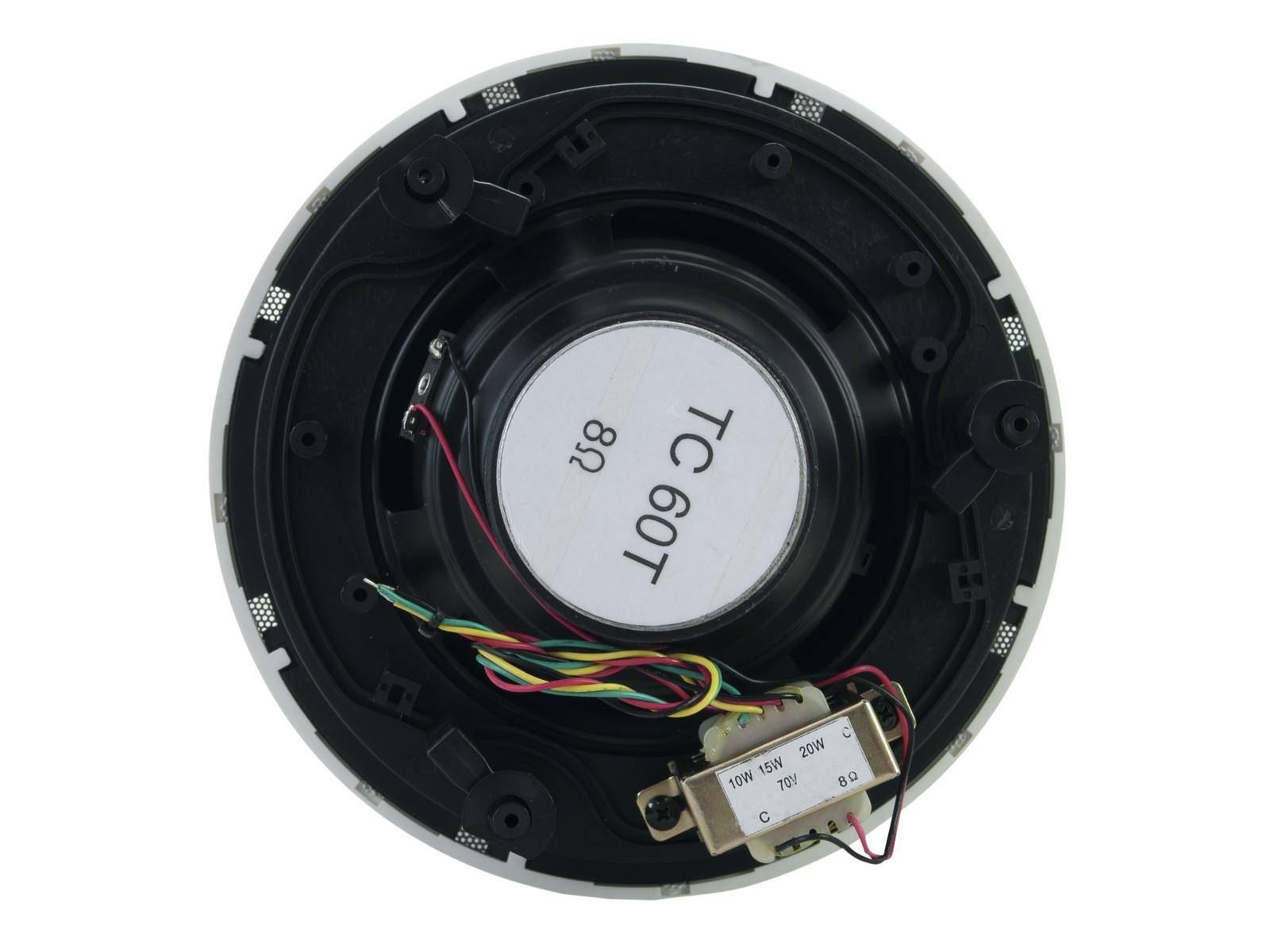

- 100-V transformer with 3 power taps and 8-ohm connection
- This text is machine translated.
Technical specifications
- Connection: 100 V or 8 Ohm
- Components: 14 cm woofer (5.5")
- 2.5 cm tweeter (1")
- Nominal power (100 V): 10W RMS (green)
- 15 W RMS (yellow)
- 20 W RMS (red)
- COM (black)
- Nominal power (8 ohm): 20W RMS (red)
- COM (black)
- Sensitivity (1W, 1m): 89 dB
- Max. Sound pressure: 93 dB (1 m)
- Frequency range 40 Hz - 20 kHz
- Dimensions (D x D): 232 x 105 mm
- Weight: 1.3 kg
- Shipping weight: 1,870 kg
- RMS capacity
20 W
- Impedance
8 Ω
- Max. sound pressure
93 dB
- Features
Ceiling speaker
- Operating voltage
100 V
- Factory colour
White
- Material
ABS plastic
- Weight
1.3 kg
- (Ø)
232 mm
- Length
105 mm
- Dim
(Ø x L) 232 mm x 105 mm
- Product type
PA ceiling speaker
Description
Features
- Ceiling-mounted loudspeaker
- 2-way coaxial speaker with excellent sound quality
- Rotatable tweeter
- 100-V transformer with 3 power taps and 8-ohm connection
- Easy mounting with clip fastening
- High-quality ABS plastic housing (impact-resistant and scratch-resistant)
- For speech and background music in the inner area.
