Buy Omnitronic DJP-604 PA amplifier RMS power per channel (at 4 Ohm): 150 W

1/7

Unavailable

Sales and shipping:

Highlights & Details

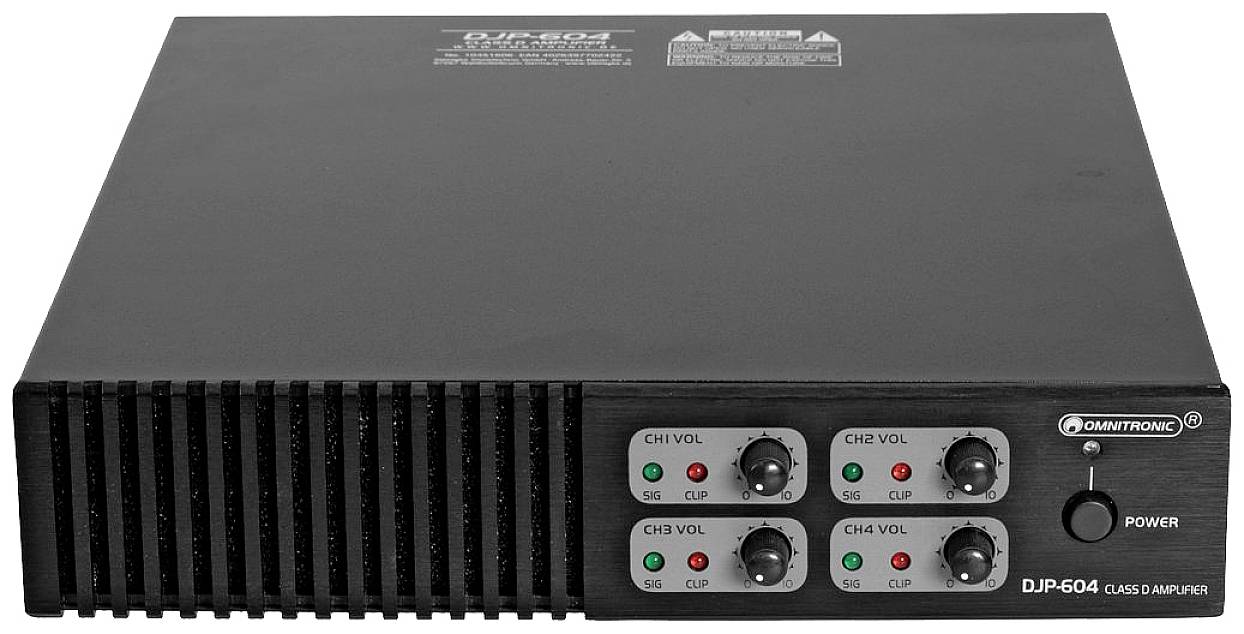

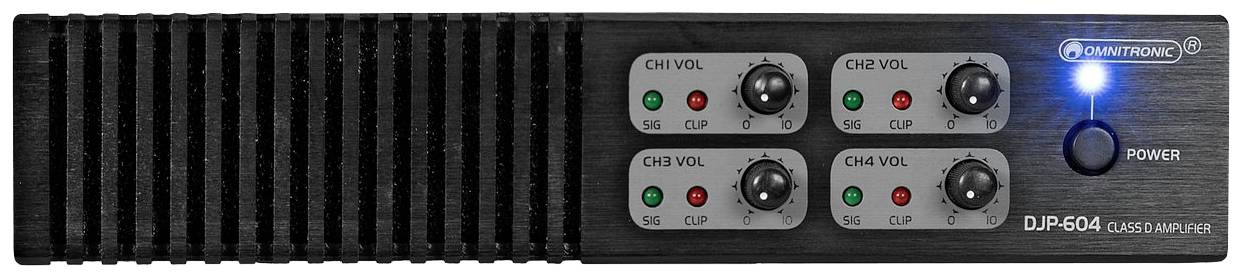

Very low weight and compact installation height through built-in switched-mode power supply4 level controlsInputs can be coupled for flexible configurationLEDs for overloading (clip) and signal for each channelSpeaker switch-on delayComplete protective circuit package

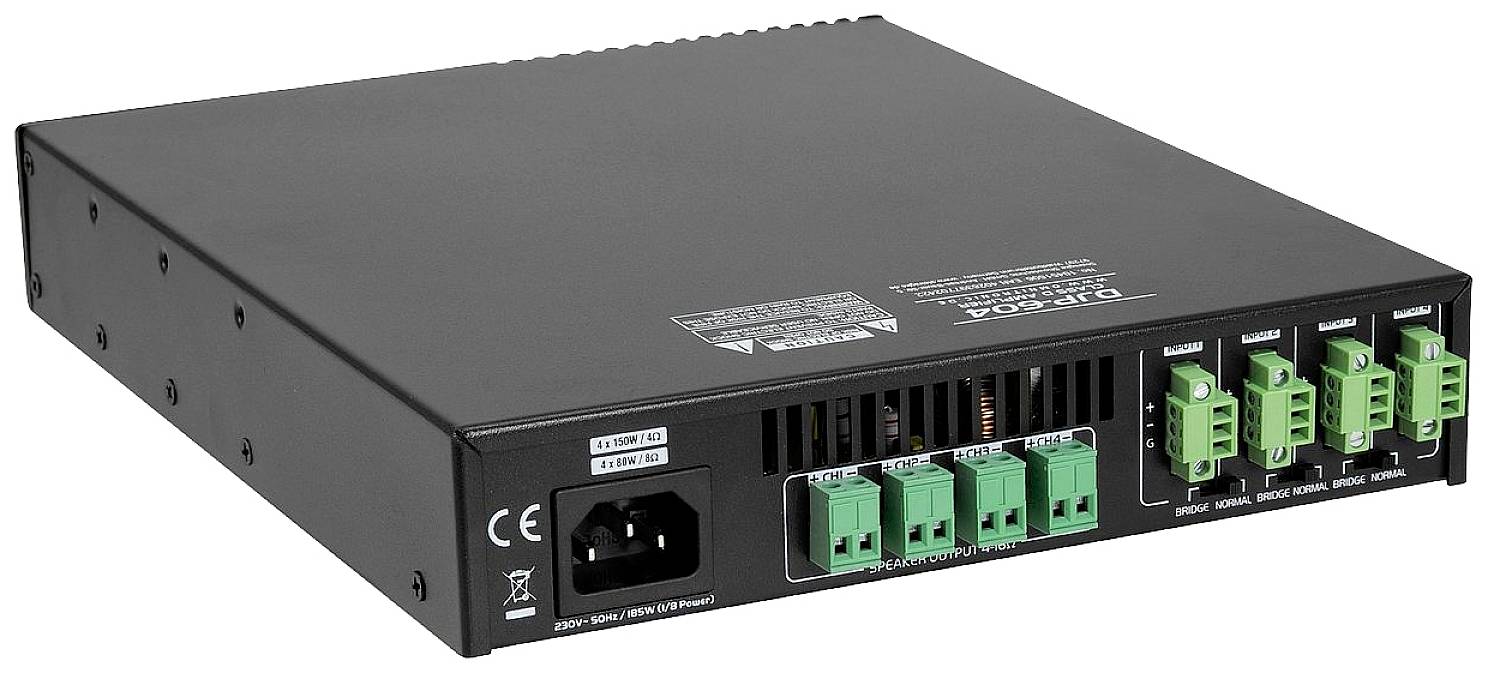

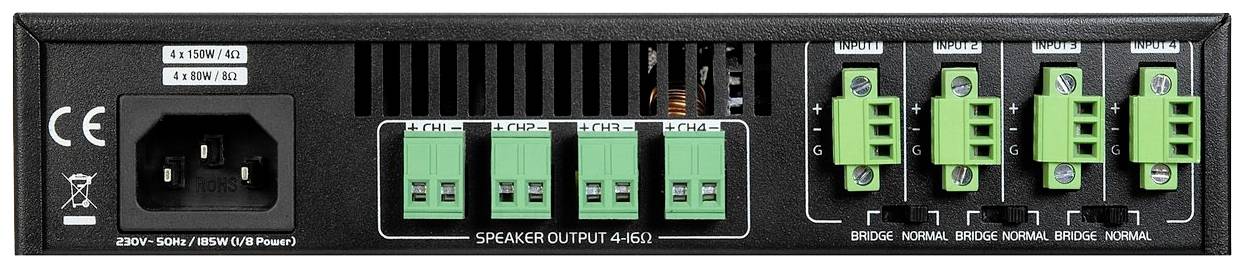

Power supply: 230 V AC, 50 HzTotal connected wattage 185 W 1/8 PowerOutput power 4 x 150 W RMS (4 ohm); 4 x 80 W RMS (8 ohm)Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)Signal-to-noise ratio>105 dBImpedance: Input 20 kOhm , balanced; input 10 kOhm , unbalancedHousing colour black.Class D switching Rise time 20 V/µsAttenuation factor>300Controls: Power switch, volume control per channelProtective circuit: Soft start, short circuit, overheating, overload, VHF; DC voltageStatus LED: Power, signal, clipConnections: Input: Line via 4 x screw terminals; Output: Speaker via 4 x screw terminalsMaterial: MetallicHousing design: Desk case; (19") 48.3 cm rack mounting possibleProduct dimensions, depth 214 mm

User & Safety Instructions 2632011 Omnitronic DJP-604 PA amplifier RMS power per channel (at 4 Ohm): 150 W

4-channel class D-amplifier in 9.5" housing, 4 x 150 W / 4 ohm, 4 x 80 W / 8 ohm

This text is machine translated.

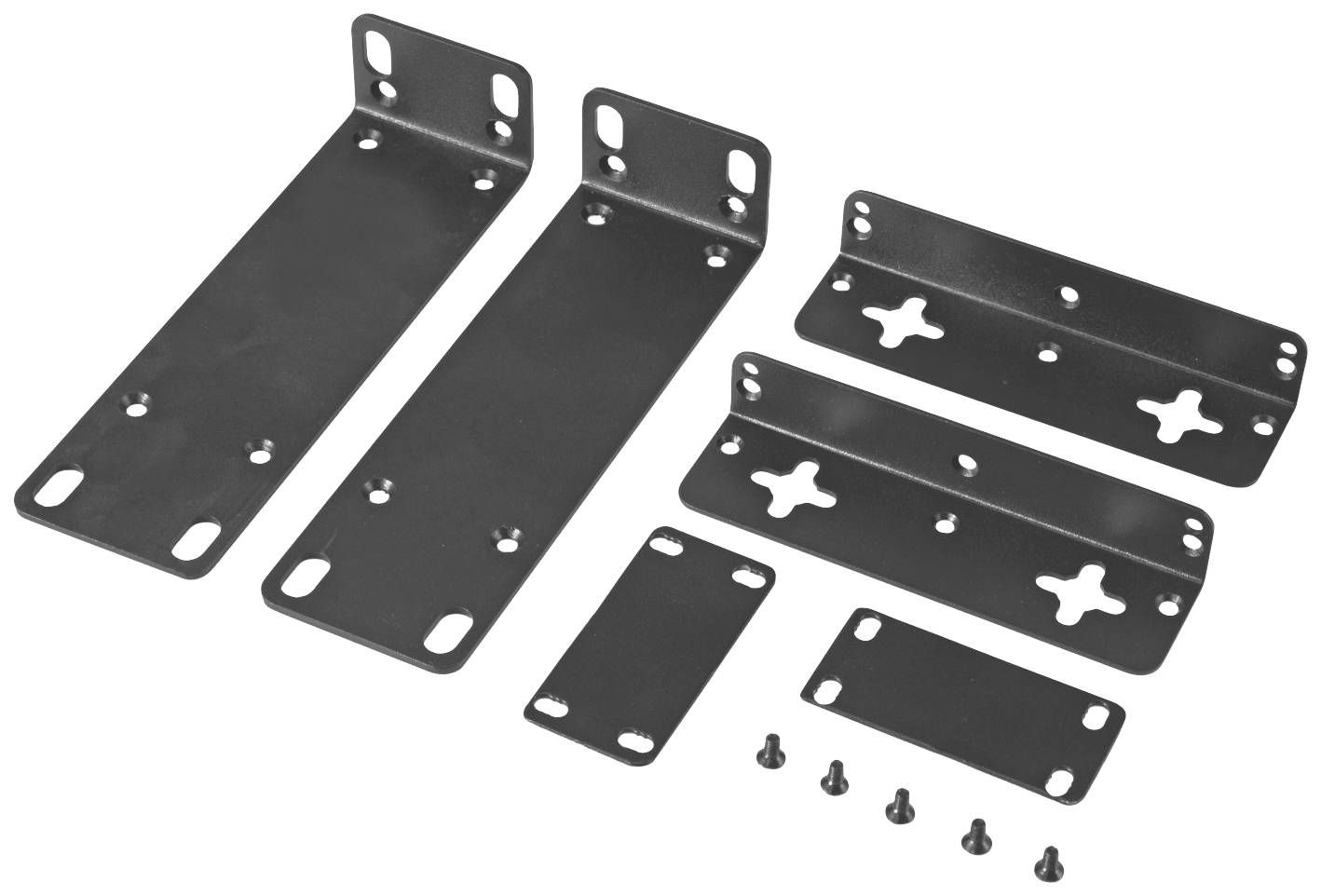

Connections via plug-in screw terminalsRobust steel chassis with aluminum front plate9.5" table caseTable stand case(19") 48.3 cm rack mounting possible
