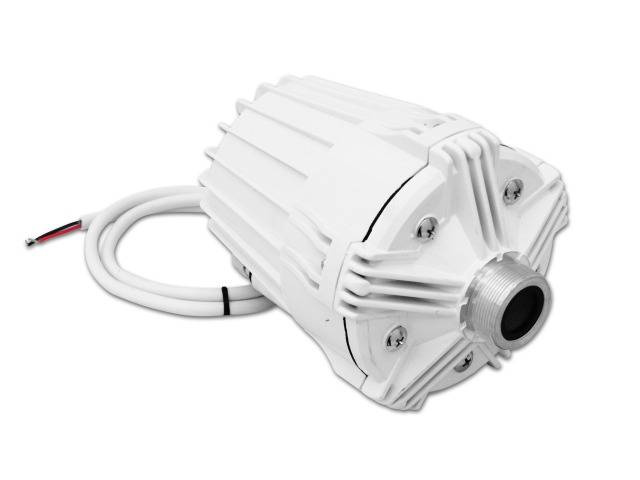

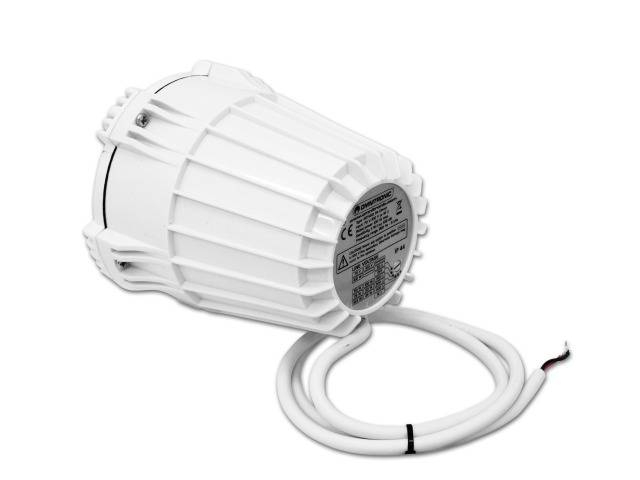

Omnitronic ED-100T Compression drive 100 W White 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
Highlights & Details
Omnitronic ED-100T pressure chamber driver
- Pressure chamber driver
Technical specifications
- Connection: 70 V, 100 V or 16 Ohm
- Rated power: 100/75/50/25/12.5 W RMS
- Sensitivity (1W, 1m): 108 dB
- Frequency range 350 Hz - 5 kHz
- Sound outlet: 2.5 cm (1)
- Thread diameter: 35mm
- Protection class: IP 44
- Mass (DxH): 122 x 173 mm
- Weight 3 kg
- Product type
Compression drive
- RMS capacity
13 W
- Max. load
100 W
- Impedance
16 Ω
- Max. sound pressure
108 dB
IP44
- Frequency range
350 - 5000 Hz
- Factory colour
White
- Material
Plastic
- Height
17.3 mm
- Length
22 mm
- (Ø)
13.5 mm
- Weight
3.2 kg
- Dim
(Ø x H) 13.5 mm x 17.3 mm
- Features
sprayproof
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313293 Omnitronic ED-100T Compression drive 100 W White 1 pc(s)
Description
Pressure chamber driver · 100-W pressure chamber driver suitable for horns EH-310, EH-400 and EH-560 · Suitable for operation with 70 V, 100 V or 16 Ohm · Power changeover switch · 35-mm flange thread (3.5 cm/1 3/8") · Splash-proof design (IP44) for outdoor use.
