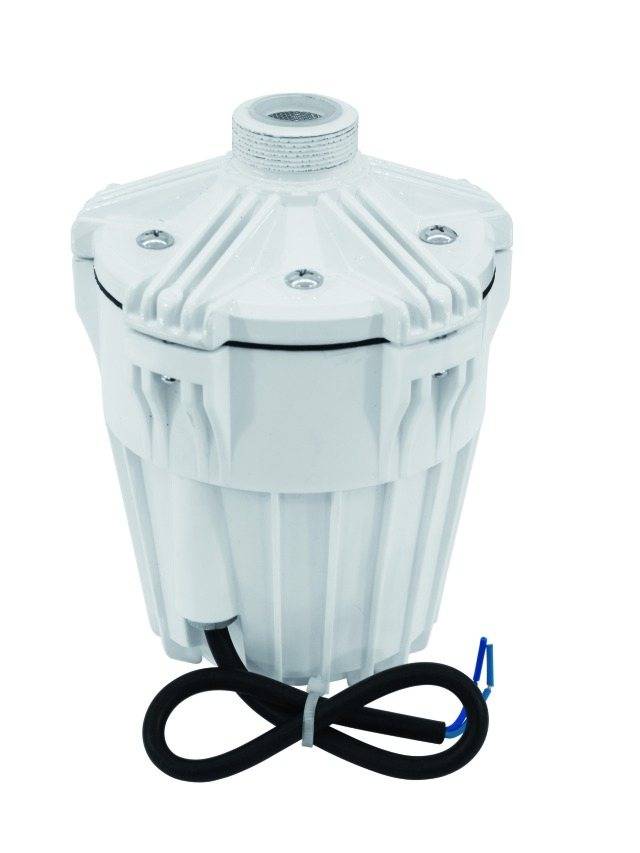

Omnitronic ED-60T Compression drive 60 W White 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 47.05 / piece)
€ 47.05
plus VAT.
14-day return policy included
Highlights & Details
Omnitronic ED-60T Pressure chamber driver
- Pressure chamber driver
Technical specifications
- Connection 70 V, 100 V or 16 Ohm
- Rated power 60/30/15/7.5 W RMS
- Sensitivity (1 W, 1 m): 108 dB
- Frequency range 350 Hz - 5 kHz
- Sound outlet: 2.5 cm (1)
- Thread diameter 35 mm
- Protection class: IP 44
- Dimensions (DxH) 122 x 173 mm
- Weight 3 kg
- Product type
Compression drive
- RMS capacity
8 W
- Max. load
60 W
- Max. sound pressure
108 dB
IP44
- Frequency range
350 - 5000 Hz
- Factory colour
White
- Length
21.5 cm
- (Ø)
13 cm
- Weight
3 kg
- Dim
(Ø x L) 13 cm x 21.5 cm
- Features
sprayproof
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 313292 Omnitronic ED-60T Compression drive 60 W White 1 pc(s)
Description
Pressure chamber driver · 60W pressure chamber driver suitable for horns EH-310, EH-400 and EH-560 · Suitable for use with 70 V, 100 V or 16 Ohm · Power change-over switch · 35 mm flange thread (3.5 cm/1 3/8") · Splash-proof construction (IP 44) for outdoor use
