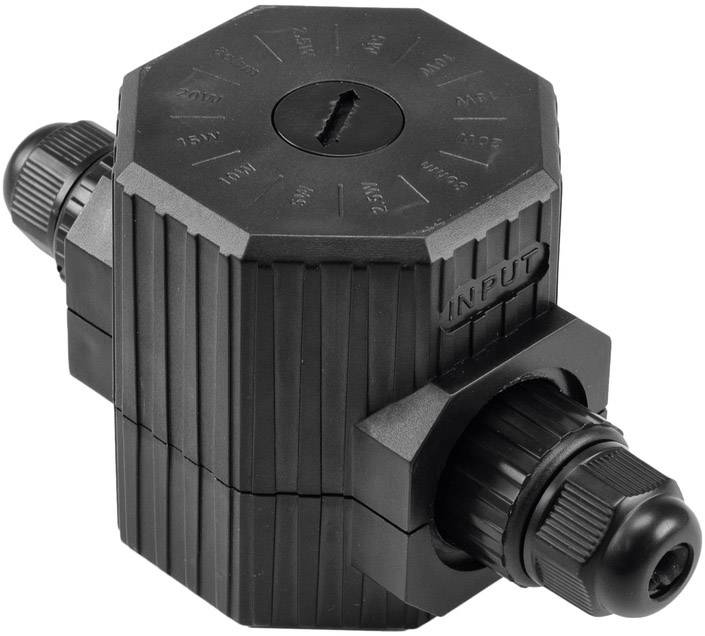

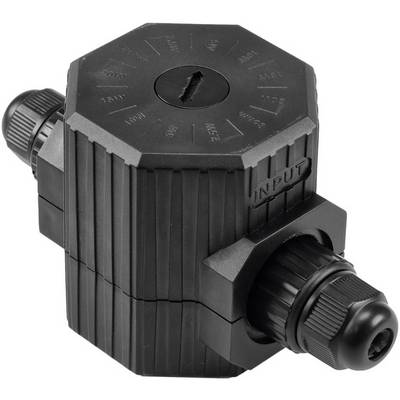

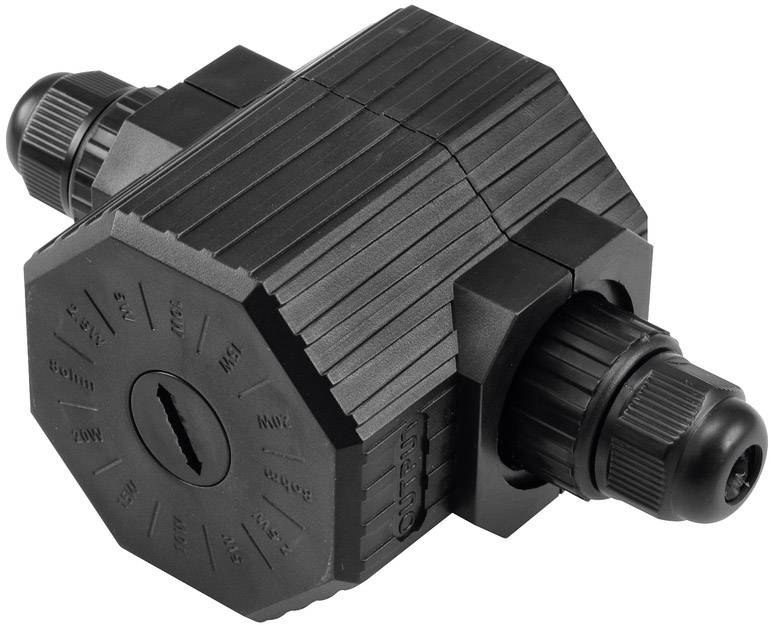

Omnitronic ELA-T20OD PA transformer 20 W
EAN:
Part number:
Item no:
Highlights & Details
ELA T20 OD transformer 20 W IP65
- Weather-proof 100V audio transformer
- For the connection of a 8-Ohm-Lautsprechers at a 100-V-ELA cable
- 5 power taps (2.5/5/10/15/20 W)
- Weatherproof plastic housing IP65
Technical specifications
- Power: 20 W Primary: 100 V;2.5/5/10/15/20 W and 8 Ohm Secondary: 8 ohms Dimensions: 68 x 145 x 77 mm Weight: 0.35 kg protection class IP65 frequency range: 30 - 15000 Hz Height: 7.7 cm depth: 14.5 cm Width: 6.8 cm loudspeaker control: 100 V technology
- Product type
PA transformer
20 W
- Impedance
8 Ω
- Max. frequency
15000 Hz
- Min. frequency
30 Hz
- Frequency range
30 Hz - 15000 Hz
- Weight
350 g
- Width
145 mm
- Height
77 mm
- Depth
68 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1875809 Omnitronic ELA-T20OD PA transformer 20 W
Description
ELA T20 OD transformer 20 W IP65
