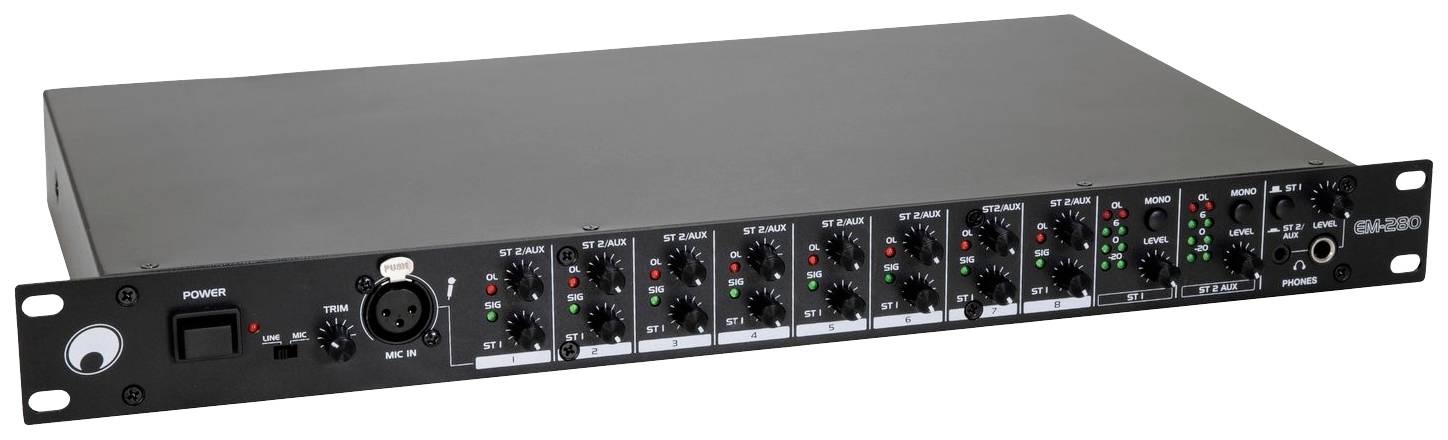

A 19-inch audio mixer with eight channels. Each channel has level controls and LED level indicators. The main power switch is located on the left side.

A 19-inch audio mixer with eight channels. Each channel has level controls and LED level indicators. The main power switch is located on the left side.

An 8-channel DI box unit with multiple inputs and blue and red LEDs for indication. Additional audio connections are located on the right.

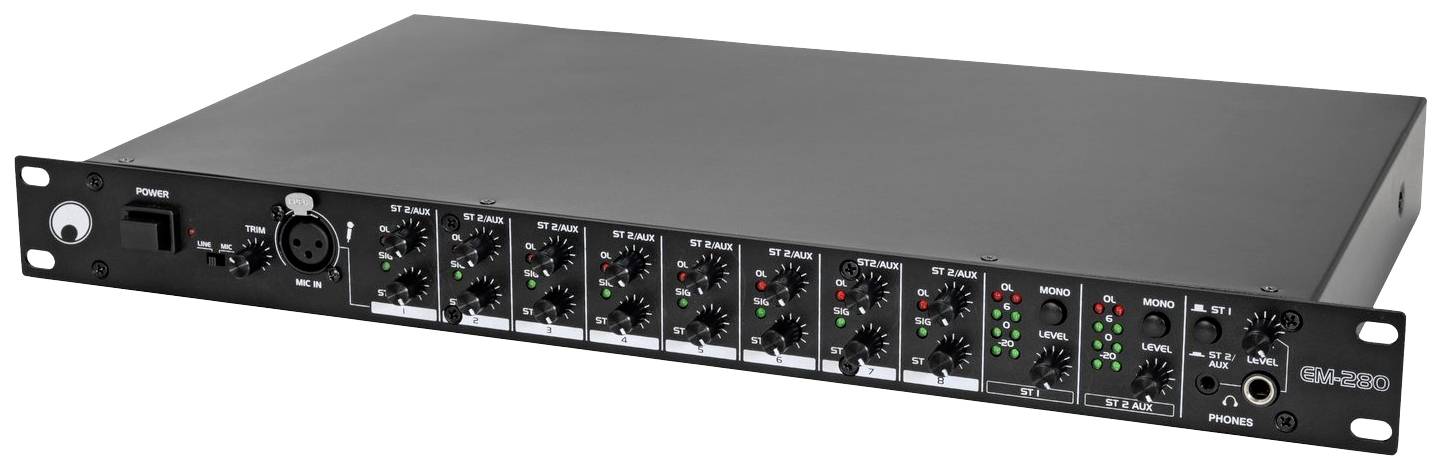

Audio mixing console with multiple channels and controls for volume regulation. Front panel shows connections, buttons, and LED indicators.

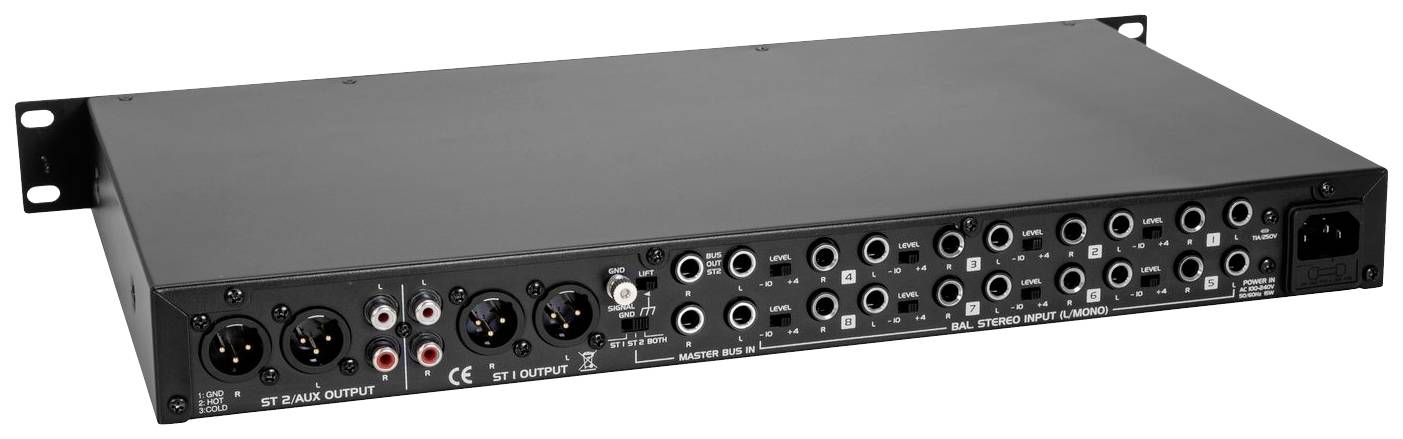

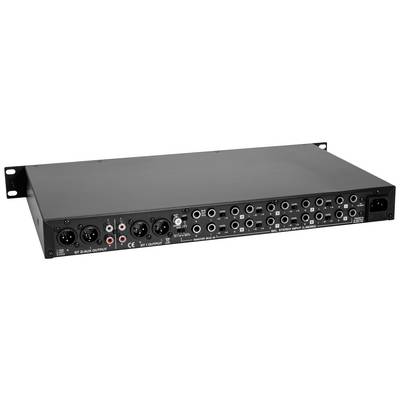

Audio amplifier rear panel with multiple analogue and digital connections, including XLR, RCA and 6.3mm jack sockets.

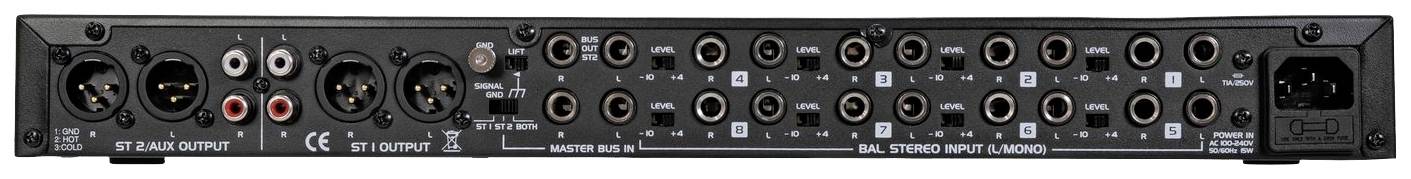

'Back of an audio interface with various connections, including XLR and jack sockets, as well as RCA inputs and outputs.'

1/5

Omnitronic

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Technical specifications

Power supply 115/230 V AC 50/60 Hz
Total connected wattage 15 W
Protection class: I
Device fuse 5 x 20 mm, T 1 A fuse can be replaced
Frequency range: 20 - 20 000 Hz
Signal-to-noise ratio 92 dB Line, 65 dB Microphone
Distortion factor: Line 0.9 % at 1 kHz
Gain mic/line 18 dB
Output: Master via 2 x 6.3 mm jack (sym.)
Output: AUX via 1 x 6.3 mm jack (balanced)
Output: Headphones via 1 x 6.3 mm jack socket (stereo) Installation version
Output: Headphones via 1 x 3.5 mm jack socket (stereo) Installation version

No. of channels (details): Input channel: 1 x Mono + Stereo with Mic Line switch via XLR or jack, channel control via control dial, pre-post switch, gain controller
Input channel: 7 x stereo via jack, channel control via rotary dial, pre-post switch
Master bus input 2 x stereo via jack, routing master bus switch
Master output 2 x Mono + Stereo via XLR or Cinch, channel control via control dial, Stereo-Mono switch
Master-Bus output 1 x Stereo via Jack
Headphone output: 1 x stereo via jack, channel control via rotary dial, routing master bus switch

Product type: DJ mixer

Inputs: Line via 8 x 6.3 mm jack (balanced)
Microphone via 1 x 3-pin XLR

Interfaces: Line in

Dim: (W x H x D) 483 x 44 x 280 mm

Installable: Yes

Weight: 3060 g

Principle: 8-channel

Width: 483 mm

Height: 44 mm

Depth: 280 mm

No. of RCA outputs: 2 x

No. of 6.3 mm headphone outputs: 1 x

No. of line-ins: 1 x

No. of microphone XLR inputs: 1 x

Documents & Downloads

User & Safety Instructions

European union

User & Safety Instructions 2898830 Omnitronic EM-280 DJ mixer

Description

Features

8-channel stereo mixer with 2 controllable zone outputs, 19"
8 stereo line inputs
2 stereo bus outputs
Symmetric jack sockets in each channel
1 additional XLR microphone inputs with level control in channel
1 Nominal input level switchable between +4dBu and -10 dBV
Signal and overload displays in each channel
4-digit stereo level meter in both the output buses
Headphone connections for standard and mini-jack
Ground-lift switch
(19") 48.3 cm rack installation 1 HE
Status LED: Power, master level display, signal, clip
This text is machine translated.

Scope of delivery

Blender
Phono cable
Power cable;
User manual
