Omnitronic EM-312 12-channel DJ 19" rack-mount mixer
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic EM-312 Entertainment-Mixer

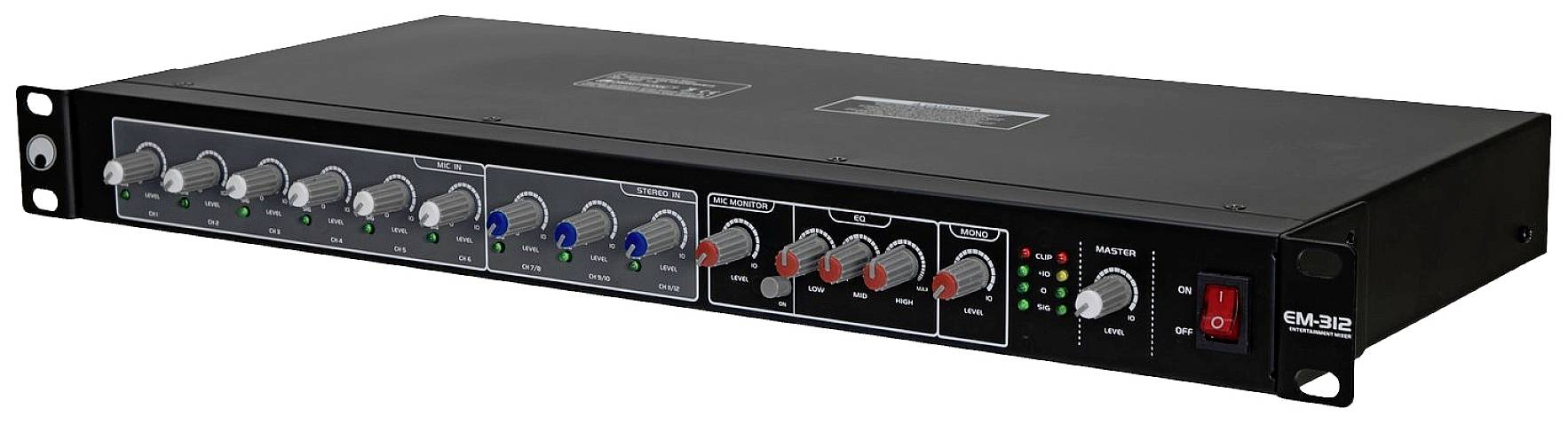

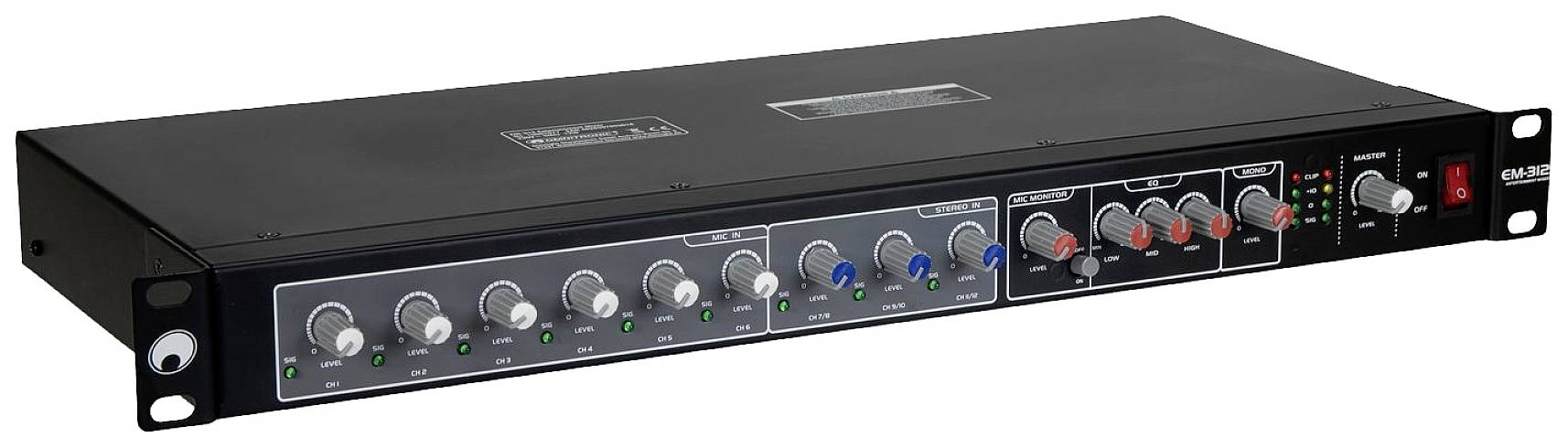

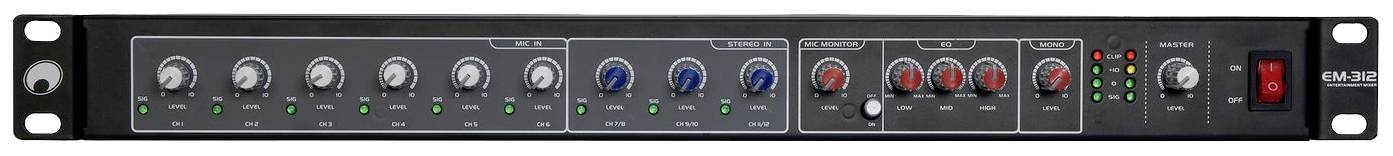

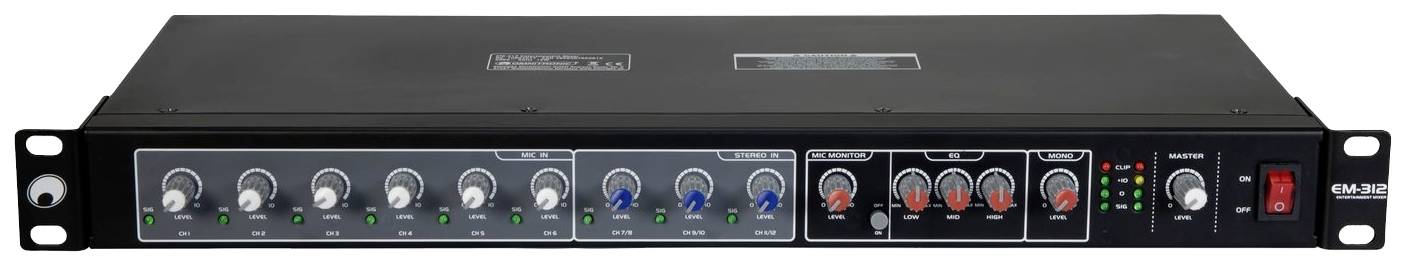

- 6 mono input channels microphone/line (multi-socket), reversible3 stereo line input channels (cinch)Phantom power can be selected for each microphone inputAll input channels with separate volume controls and signal LEDAdjustable priority function for channel 1Symmetric stereo XLR outputs and cinch socketsAdjustable monitor output (jack) for listening to the microphone signalsControllable mono-line output (jack)Master control, 4 digit stereo LED level meter and 3-band equalizerAdditional terminal connections for 24 V power supply(19") 48.3 cm rack installation 1 HE
Technical specifications

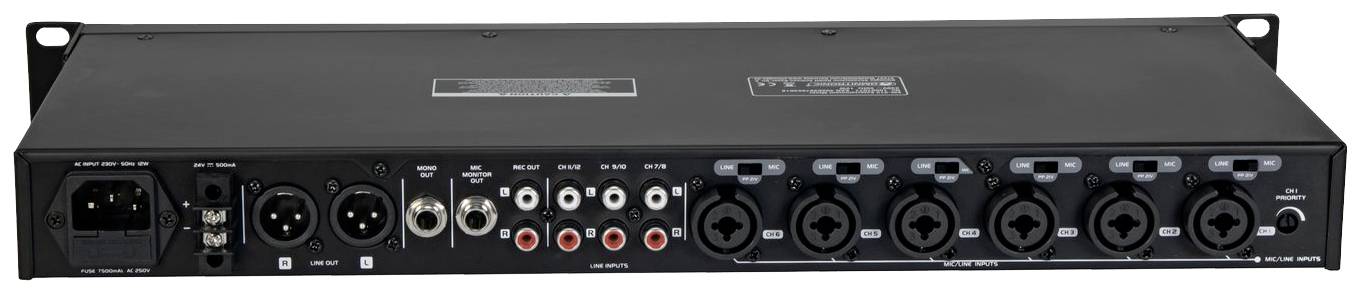

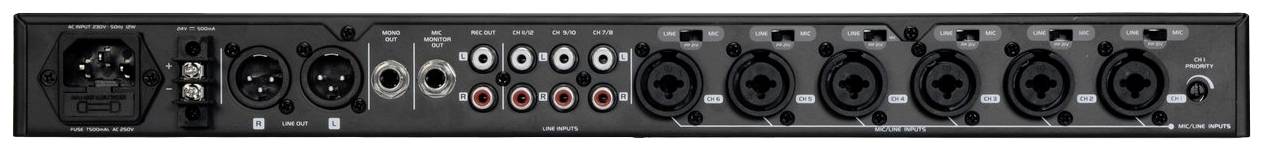

- Power supply: 230 V AC, 50 Hz or 24 V DCTotal connected wattage 12 WProtection class SK IPower connection: Power feed via cold devices (M) Installation version power connection cable with safety plug (supplied); power feed via screw terminalFrequency range: 20 - 22000 HzSignal-to-noise ratio> 103 dBHarmonic distortion factor<: 0.03 % with 1 kHzPhantom power: 18 V DC or 21 V DCImpedance: Input Mic/Line: 1.4 kOhmInput line: 10 kOhmOutput 120 OhmControls: Power switchStatus LED: Power, signal, master level display, clipConnections:Input: Mic/Line via 6 x 3-pin XLR/6.35 mm jack (W) combo jack, line via 3 x stereo RCA; output: Master via 2 x 3-pin XLR, mono via 1 x 6.3 mm jack (mono) flush mount version, REC. Via 1 x stereo cinchChannels: Input channel: 6 x mono with mic line switch via 3-pin XLR/6.35 mm jack (W) combo jack, channel control via rotary knob, controller 3-band EQ 80Hz/2.5kHz/12kHz; 3 x stereo via cinch, channel control via rotary knob, controller 3-band EQ 80Hz/2.5kHz/12kHz;master output: 1 x stereo via XLR, channel control via rotary dial, 1 x mono via jack, channel control via rotary dialMax. Level: Input: Microphone -19 dBu; line +21 dBu; output: +21 dBuHousing design (19") 48.3 cm Rack installation 1 HE
- Product type
DJ 19" rack-mount mixer
- Interfaces
XLR in
XLR out
RCA in
RCA out
6.35 mm headphone out
- Dim
(W x H x D) 483 x 230 x 44.5 mm
- Installable
Yes
- Weight
3.04 kg
- Factory colour
Black
- Principle
12-channel
- Width
483 mm
- Height
230 mm
- Depth
44.5 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2632005 Omnitronic EM-312 12-channel DJ 19" rack-mount mixer
Description
The EM-312 is a flat 12-channel mixer with 6 mic/line-combi inputs and 6 additional line inputs for rack mounting. It has XLR outputs, a jack mono output, a recording output and a jack monitoring output for monitoring the microphone section. The EM-312 offers separate volume control for all inputs, a volume control for the mono output and a master controller as well as a 3-band equalizer. For better understanding of the announcement, channel 1 is equipped with an adjustable priority function.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x device
- 1 x Power cable/power cable
- 4 x Base
- 1x user manual
