Omnitronic EP-220NET PA preamplifier 6 W 1-channel
EAN:
Part number:
Item no:
Highlights & Details

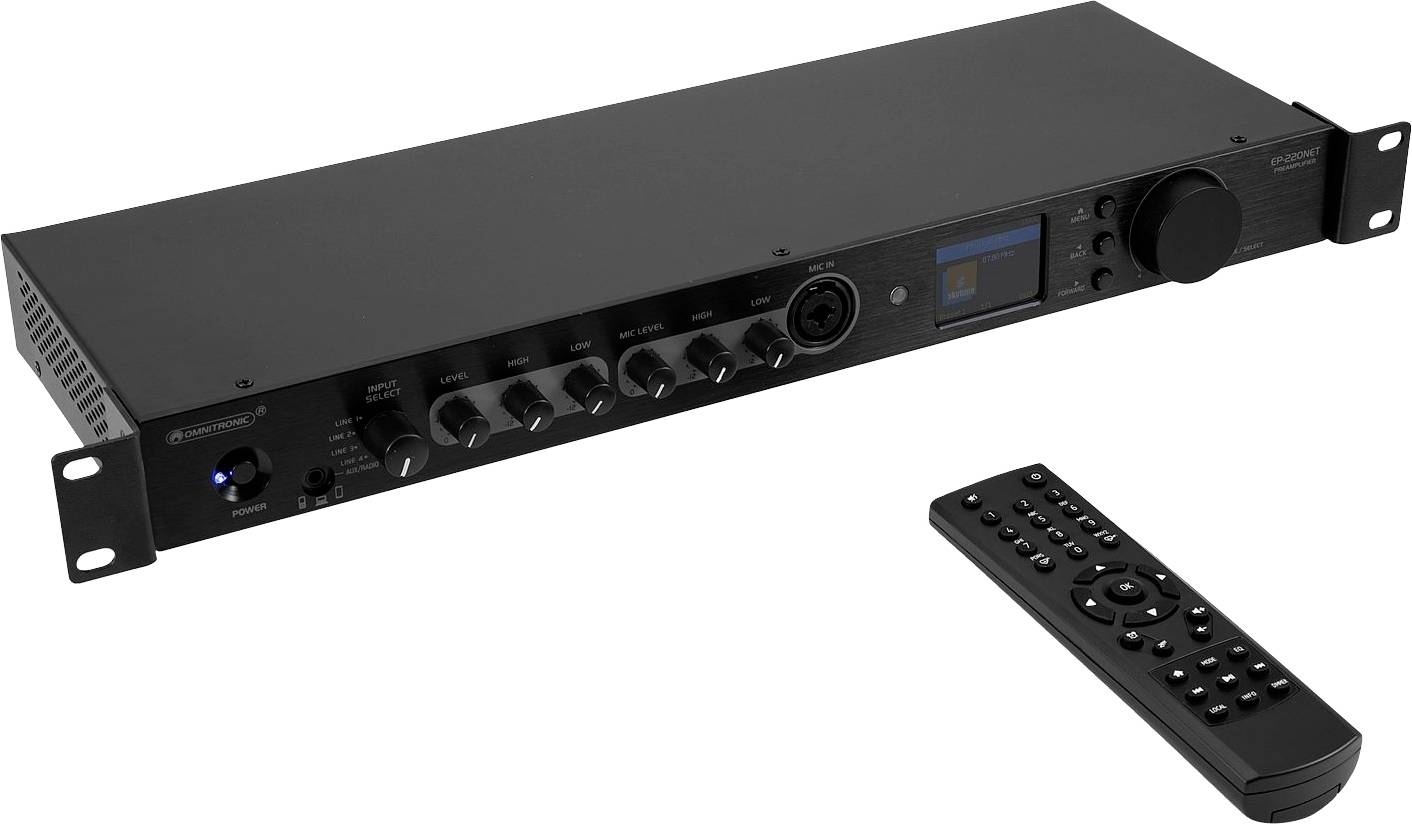

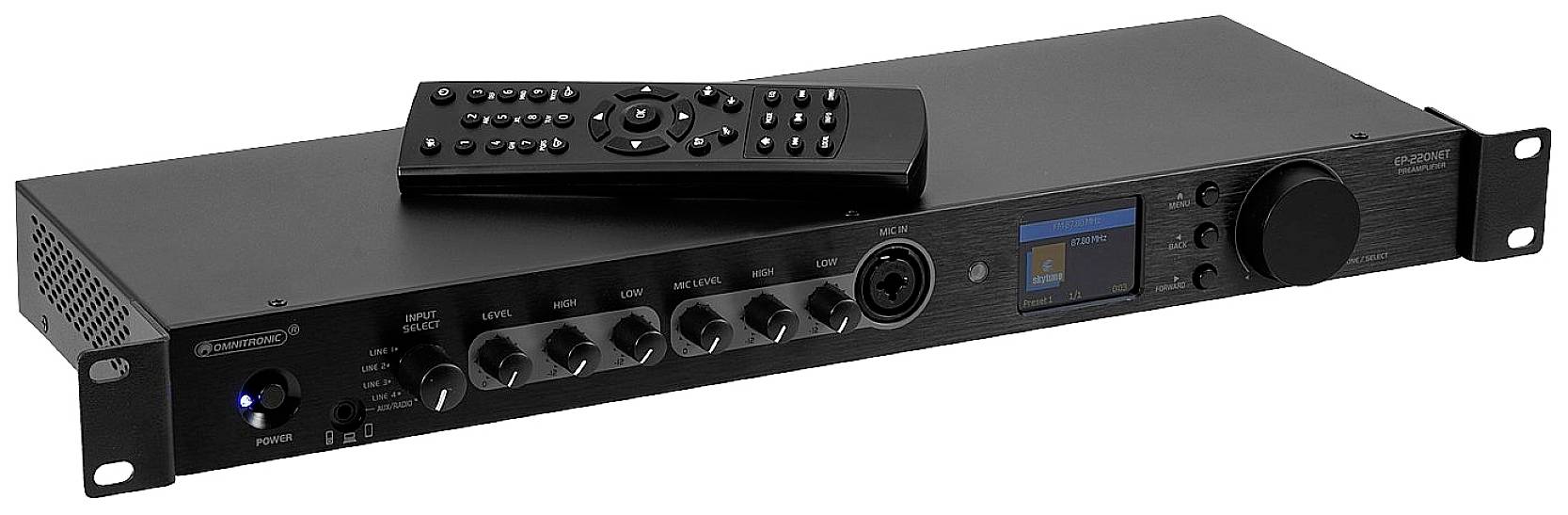

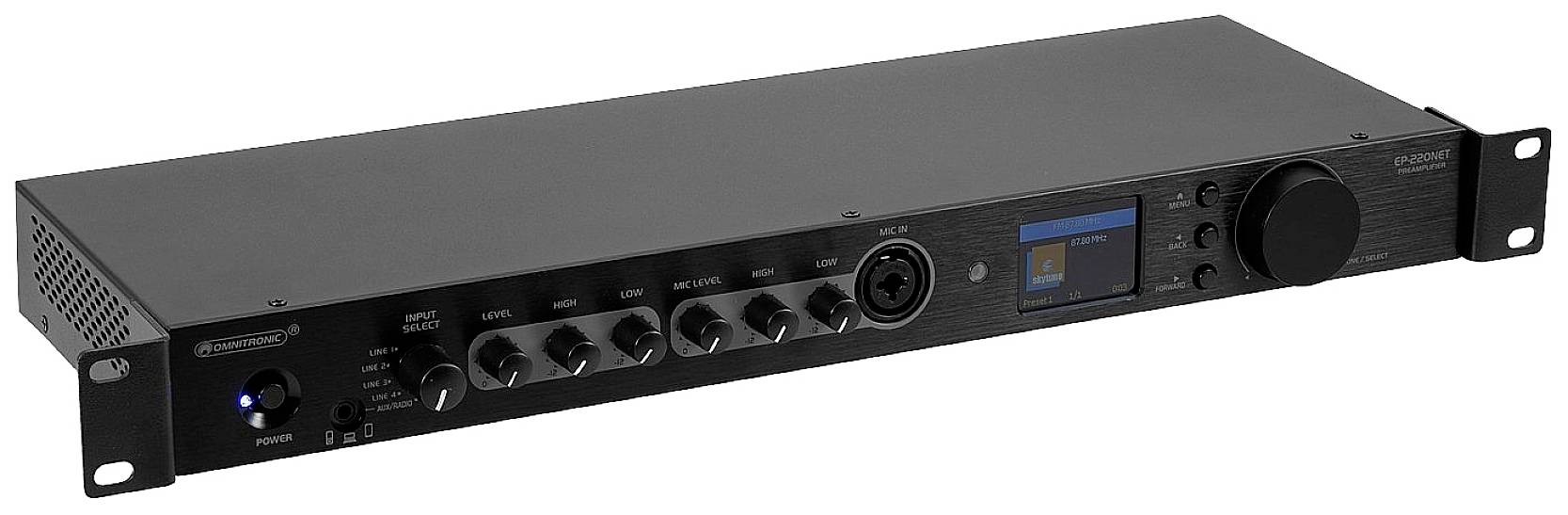

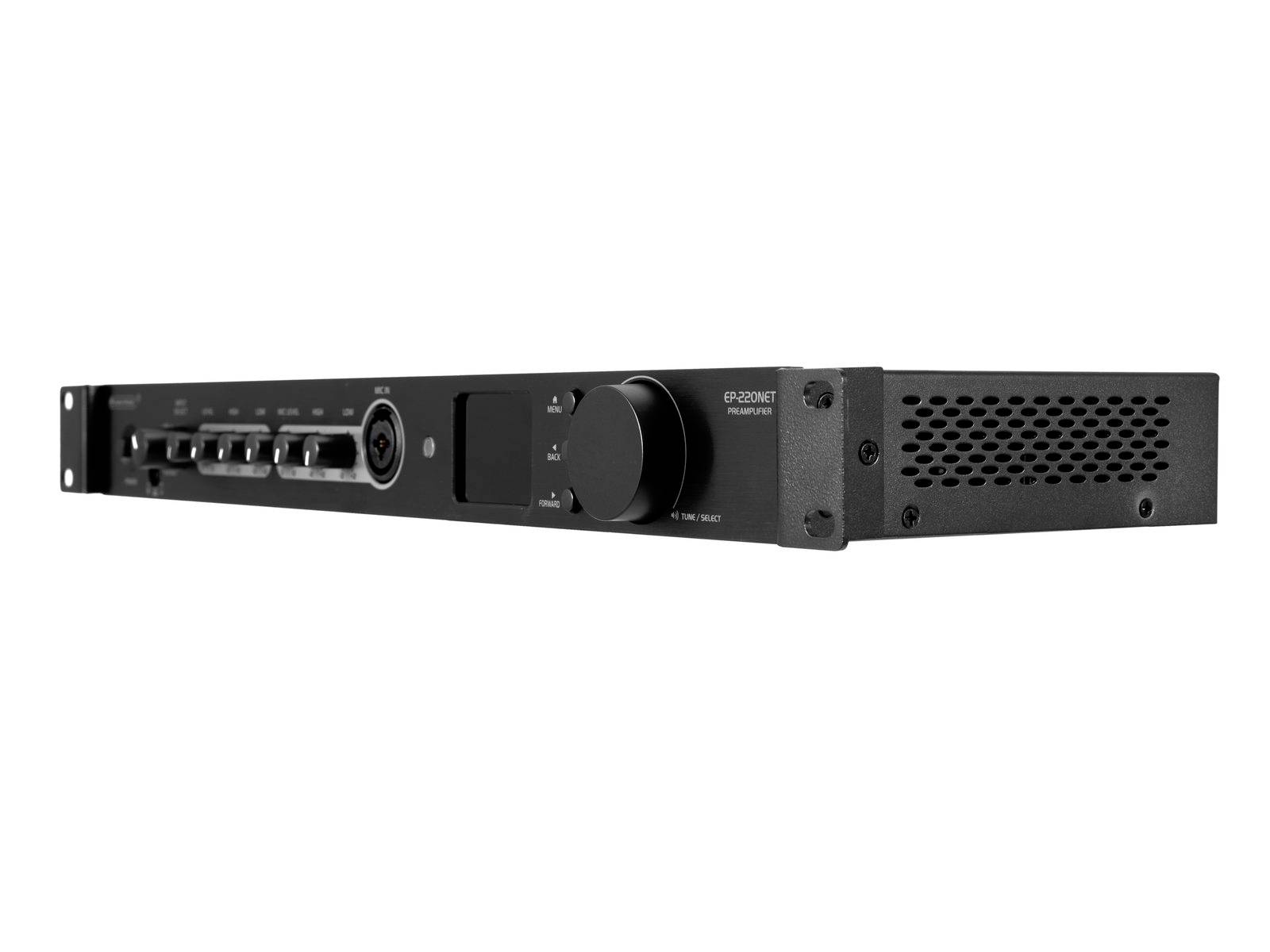

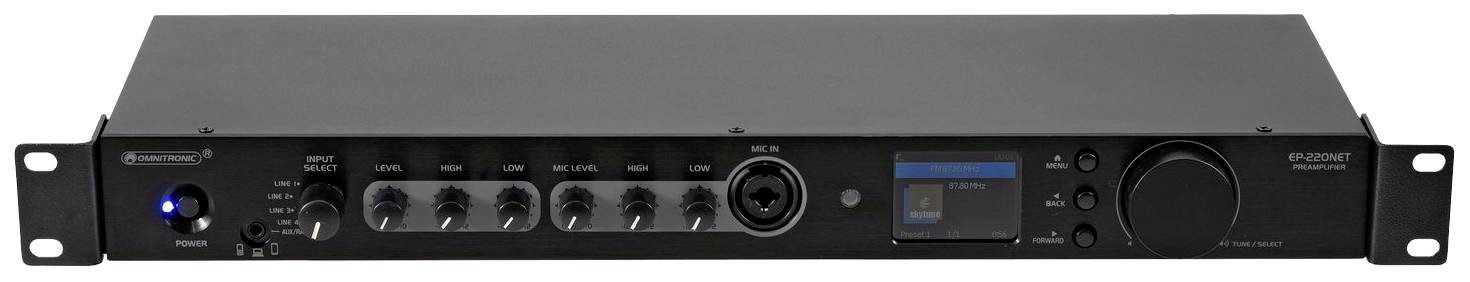

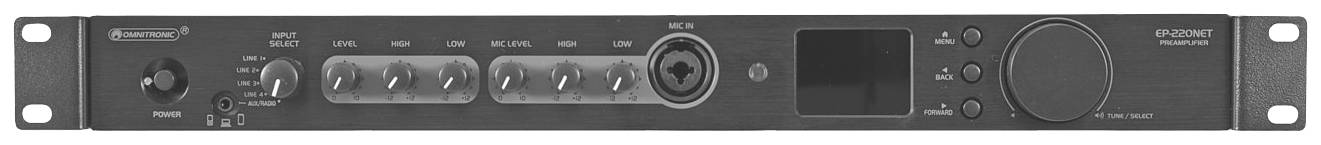

Omnitronic EP-220NET pre-amplifier with Internet radio, DAB+ and Bluetooth
- Internet radio with DAB+/FM-tuner, Bluetooth and UPnP/DLNA-supportVersatile streaming options via WLAN, LAN socket and Bluetooth2" large TFT color display, simple Jog Dial operation, equalizer settings, sleep timer and alarm functionAccess to thousands of radio stations worldwideStation search by genre, station name, location4 stereo line inputs (cinch) on the back3.5 mm AUX input on the front side1 combination microphone input on the front side with controls for volume, bass and treble
Technical specifications

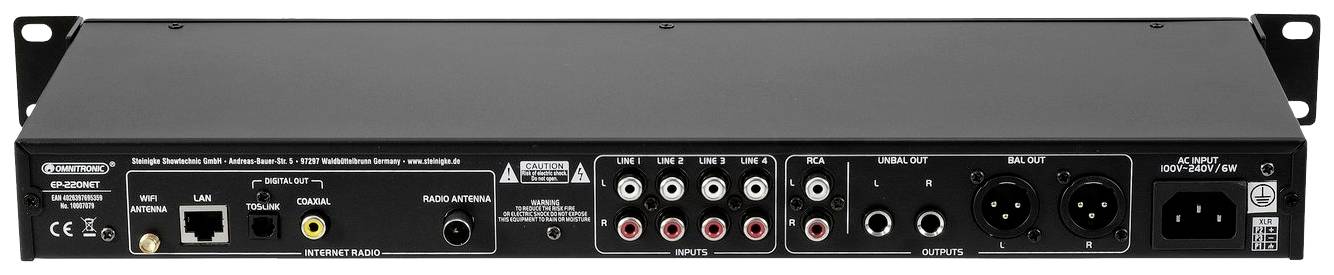

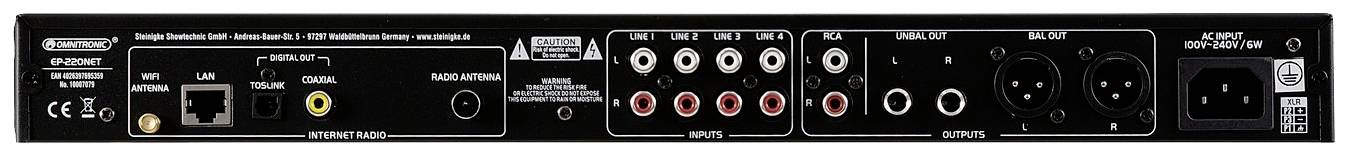

- Power supply 100-240 V AC 50/60 HzTotal connected wattage 6 WFrequency range: 20 - 20 000 HzPower connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)Signal-to-noise ratio> 100 dBHarmonic distortion factor<: 0.1 % with 1 kHzWLAN: Standard: IEEE 802.11 b/g/nSECURITY PROTOCOLS WEP/WPA/WPA2Network connection: Protocol: Ethernet TCP/IP via RJ-45 (W) mounting version, 10/100 Mbit/s.Impedance: Input 10 kOhm , unbalanced; input 20 kOhm , balancedControl: W-Lan; IR remote controlBluetooth: Version: 4.2 + EDRAudio player:FM-tuner + Internet radio + BT + DAB+Housing colour black.Display type: Multicolor TFT displayTuner reception frequency: FM 87-108 MHz, DAB(+) 174.928-239.200 MHzControls: Power switch, source selector switch, volume control, tone control, menu; Navigation buttons, encoderPower status LEDConnections: Antenna via 1 x SMA (W) installed version; network connection via 1 x RJ-45 (W) installed version; inputs: Antenna via 1 x Belling-Lee (W) installation version, Line via 4 x Stereo phono, AUX via 1 x 3.5 mm jack socket (stereo) installation version, microphone via 1 x 3-pin XLR/6.35 mm jack (W) combo jack bushing, outputs: Line via 2 x 3-pin XLR (M) installation version, Line via 2 x 6.3-mm jack (balanced), Line via 1 x Stereo Cinch, Optical via 1 x ToslinkCoaxial (S/PDIF) via 1 x cinch (W) installation versionChannels: Microphone channel: 1 x mono via 3-pin XLR/6.35mm jack (W) combo jack installation version, channel regulation via control dial, controller 2-band EQ; master output: Stereo, channel regulation via control dial, controller 2-band EQ, source switchMUSIC FORMAT: MP3, AAC/AAC+; FLACFrequency band: 2.4 GHzMaterial: MetallicHousing design: Desk case; (19") 48.3 cm rack mounting possible
- Product type
PA preamplifier
- RMS power
6 W
- Dim
(W x H) 48.3 cm x 4.4 cm
- Weight
2 kg
- No. of channels
1-channel
- Width
48.3 cm
- Height
4.4 cm
- Interfaces
Digital coaxial out
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2632007 Omnitronic EP-220NET PA preamplifier 6 W 1-channel
Description
19"-preamplifier with Internet radio, DAB+, Bluetooth and IR-remote control
This text is machine translated.
This text is machine translated.
Features
- Audio source switchRegulator for volume, basses and trebles3 stereo master outputsDigital and analogue audio outputs (Toslink, coaxial, cinch)Can be controlled via W-LAN; IR remote controlMulti-colored TFT displayTable stand case(19") 48.3 cm rack mounting possible
Scope of delivery
- 1 x device
- 1 x Power cable/power cable
- 1x remote control
- 2 x Antenna
- 1 x phono cables
- 4 x Base
- 1x user manual
- 1 x declaration of conformity
