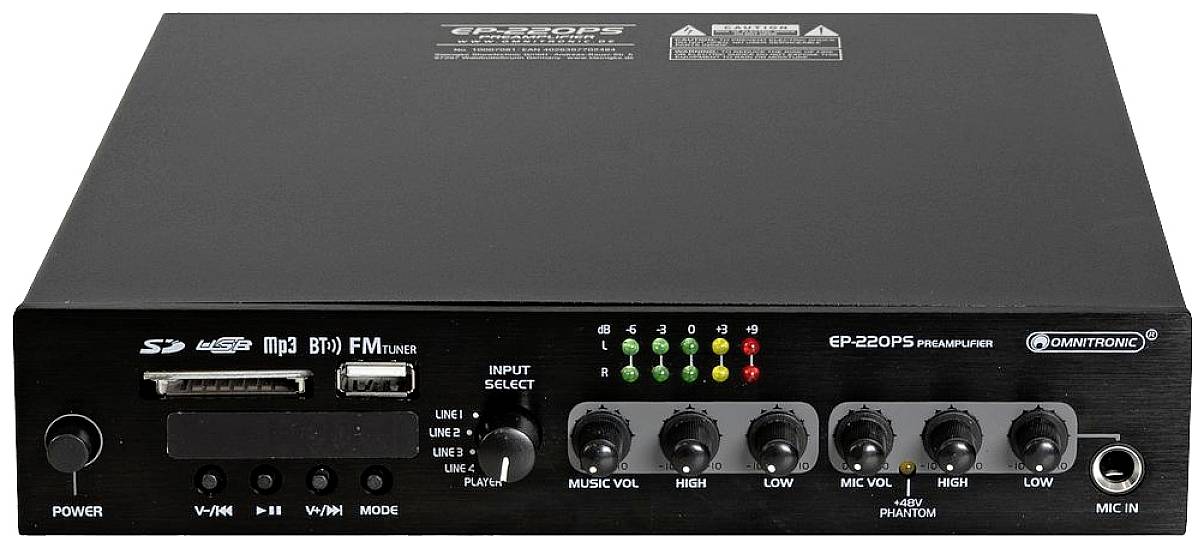

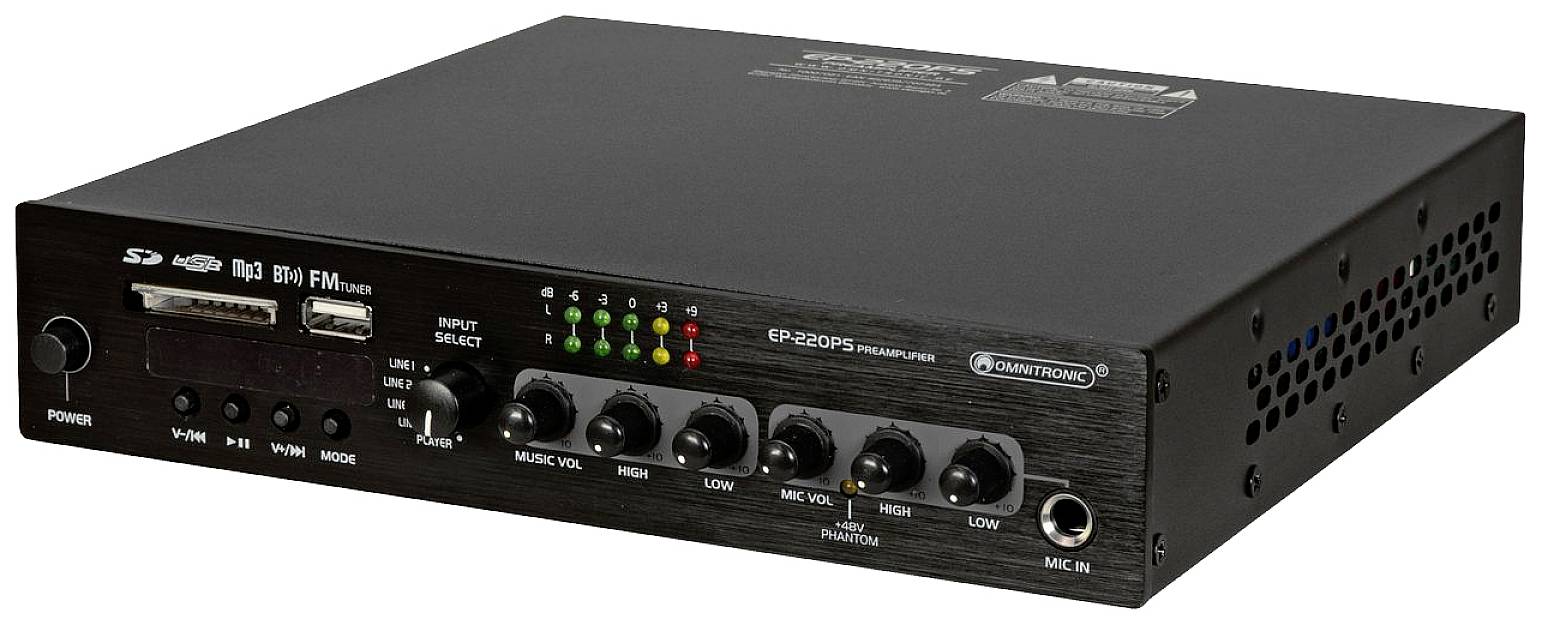

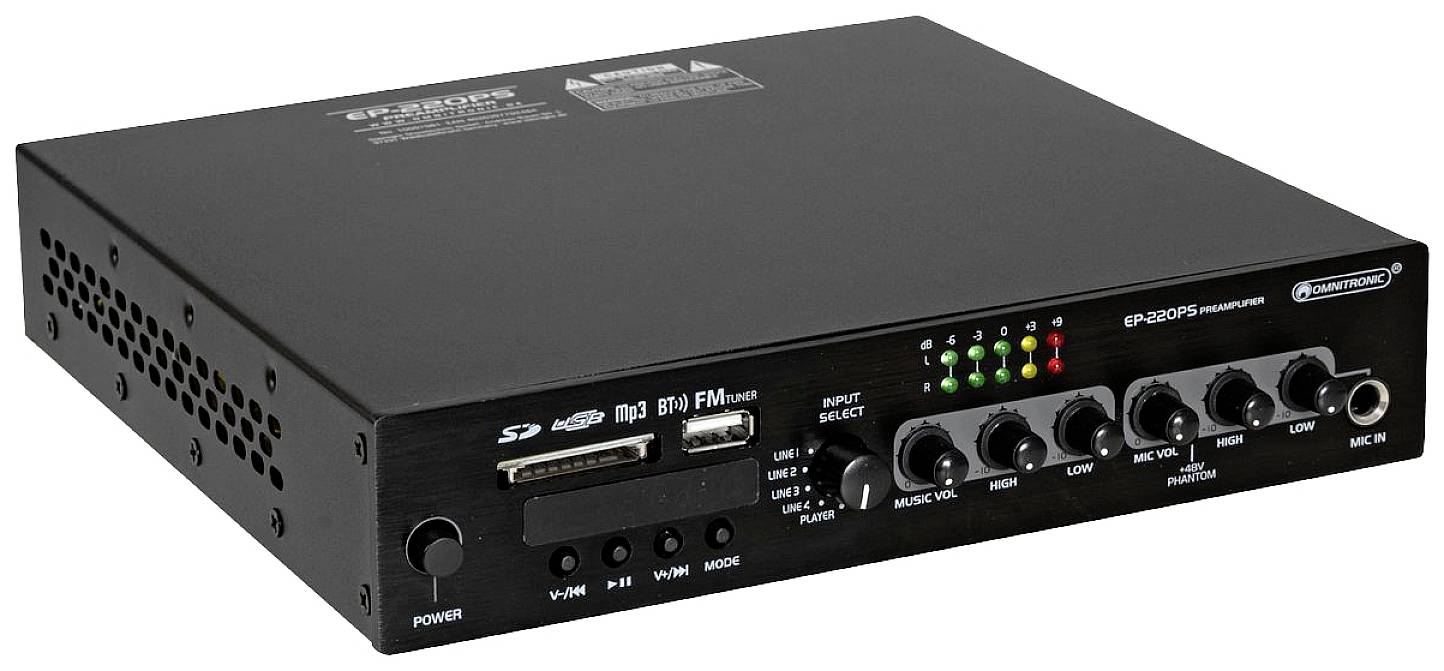

Omnitronic EP-220PS PA preamplifier
EAN:
Part number:
Item no:
Highlights & Details
Omnitronic EP-220PS Pre-amplifier with MP3-Player, Bluetooth und FM-Radio 9.5"
- Wireless transmission of music from your music devices (e. B. Smartphone, tablet PC) via BluetoothUSB 2.0 port and SD card slotFM tuner with Auto Scan4 stereo line inputs1 microphone input with controls for volume, basses and treblesPhantom power and priority function can be attached for the microphone inputController for total volume, basses and trebles
Technical specifications

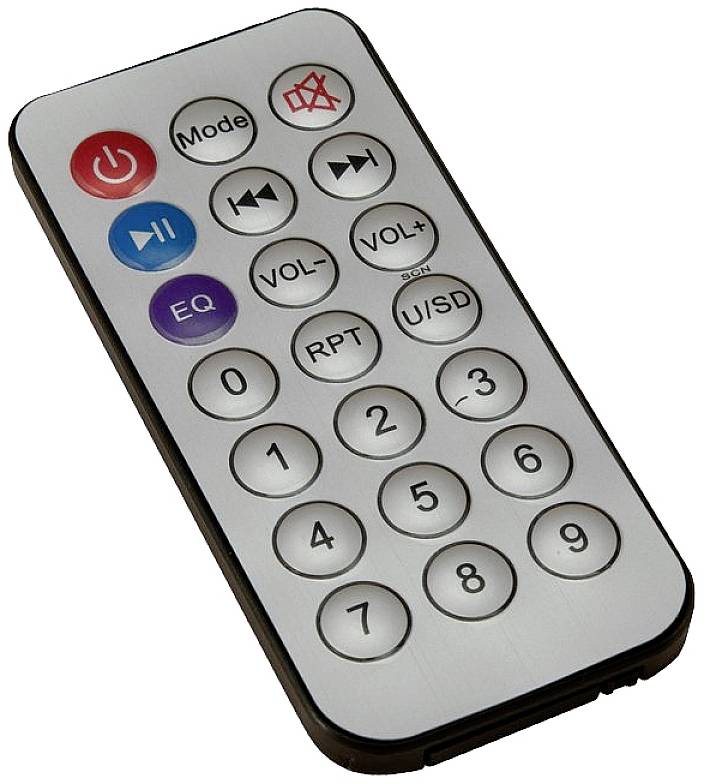

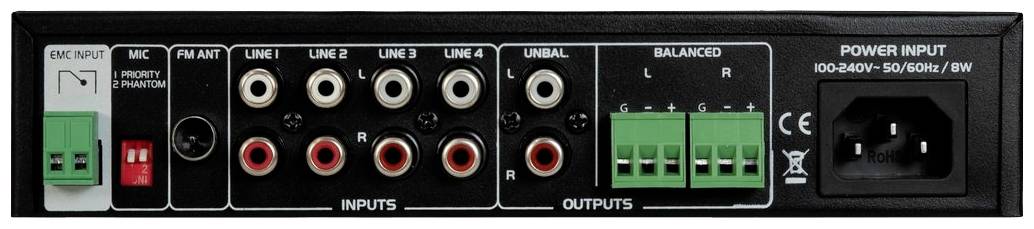

- Power supply 100-240 V AC 50/60 HzTotal connected wattage 8 WFrequency range: 20 - 20 000 HzPower connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)Signal-to-noise ratio> 100 dBHarmonic distortion factor<: 0.1 % with 1 kHzImpedance: Input 10 kOhm , unbalanced; input 20 kOhm , balancedControl: IR remote control; BluetoothControls: Source switch, volume control, sound controlEqualizer:Master:1 x controls 2-band stereoStatus LED: Level indicator, phantom powerConnections: Input: Line via 4 x cinch (W) mounting version, microphone via 1 x 6.3-mm jack (balanced); output: Line via 1 x stereo cinch, line via 2 x screw terminalInput sensitivity: 1 V.Audioplayer - Media: USB + SD + Bluetooth + FM RadioMusic format audio player - : WAV; MP3; WMAAudioplayer - carrier frequency: 2.4 GHz
- Product type
PA preamplifier
- Dim
(W x H) 21.5 cm x 4.4 cm
- Weight
1.3 kg
- Width
21.5 cm
- Height
4.4 cm

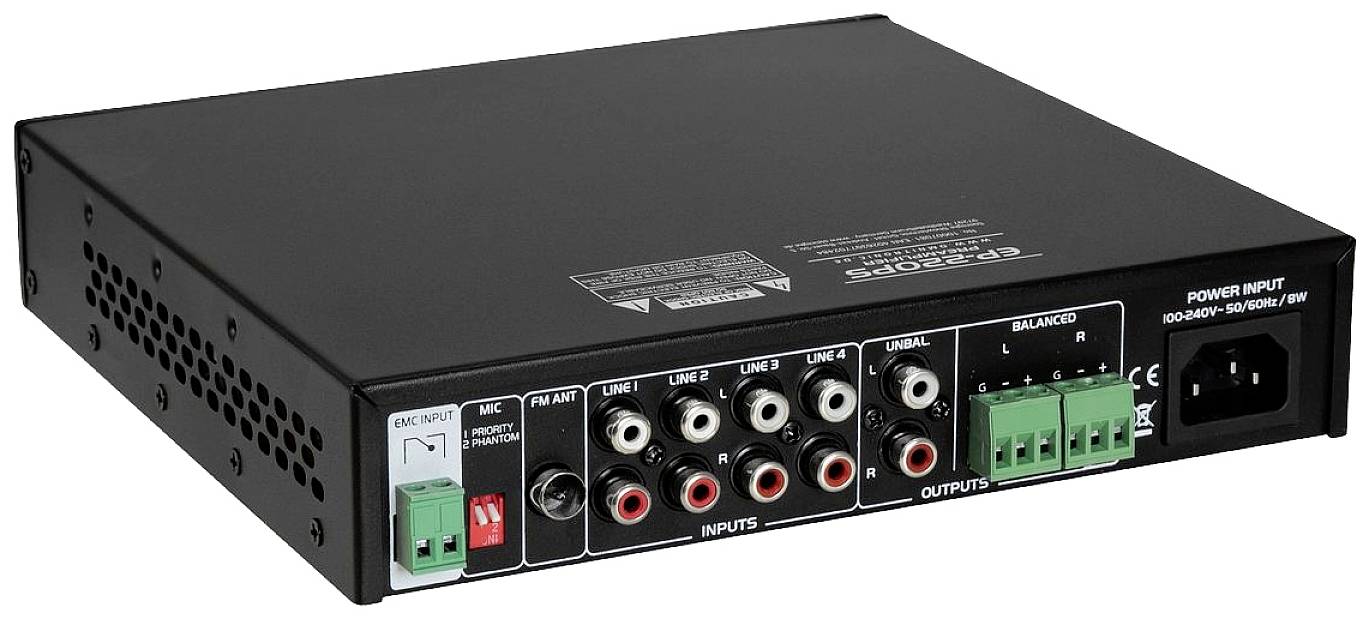

- Interfaces
RCA in
RCA out
6.3 mm jack in
Screw terminals
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2632008 Omnitronic EP-220PS PA preamplifier
Description
Universal 9.5" pre-amplifier with audio player, Bluetooth and FM radio
This text is machine translated.
This text is machine translated.
Features

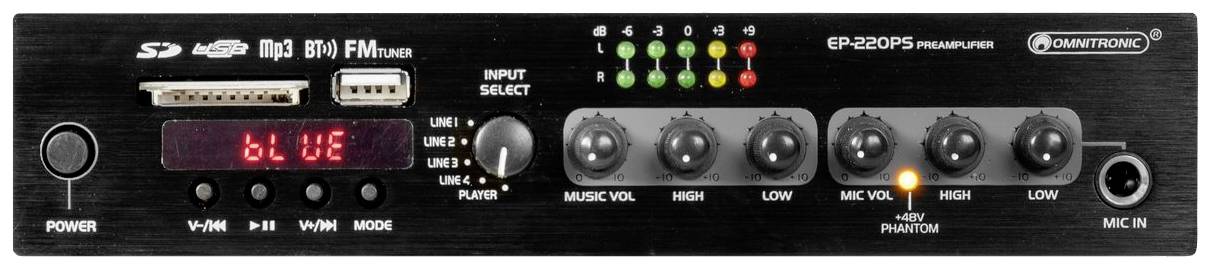

- Audio source switch5-digit stereo LED level meter2 stereo master outputs9.5" table caseCan be controlled via IR remote control; BluetoothFor application areas like: Trade fair construction and shop building; sports centers/fitness studios; restaurants, bars and hotels
