Buy Omnitronic EPA-100BT PA amplifier RMS power per channel (at 4 Ohm): 50 W

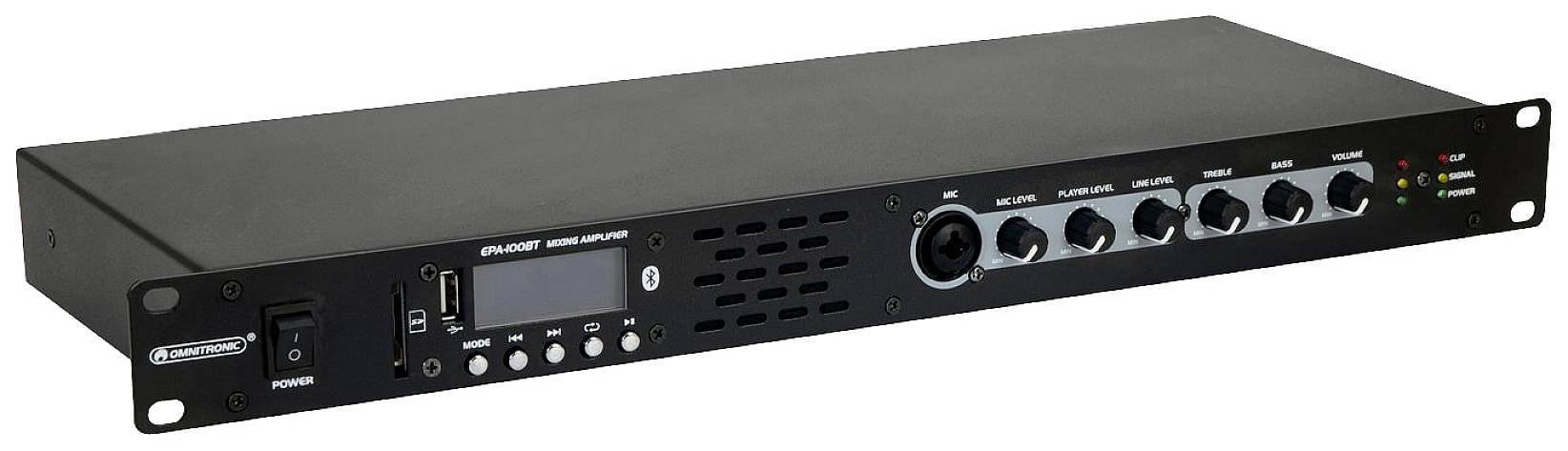

A black audio amplifier with multiple adjustment knobs and USB ports, suitable for installation in a rack system.

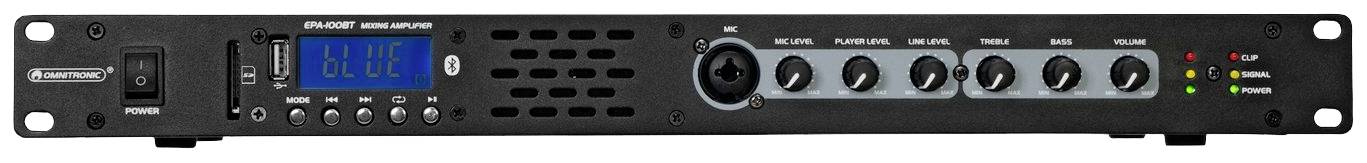

Black audio processor with multiple controls and a digital display. On the left, a power switch, and on the right, LED indicators for signal strength.

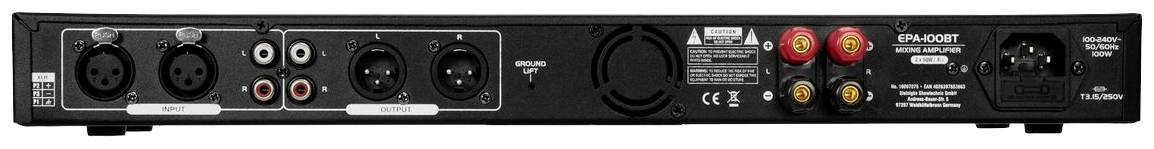

Rear view of an audio system with various input and output sockets, including XLR, jack, and speaker connections.

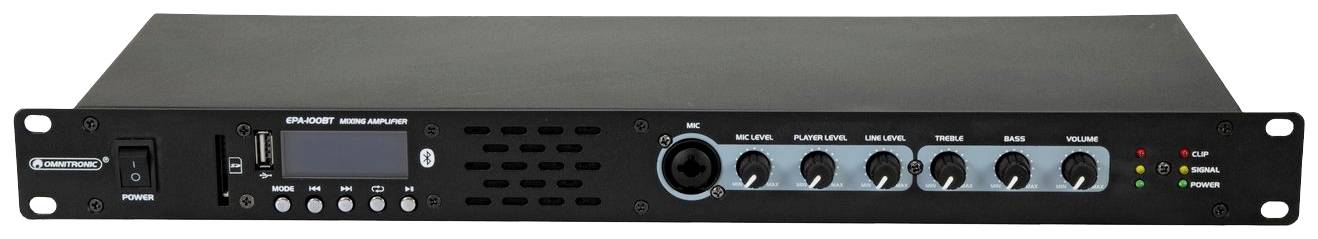

Audio mixer with control knobs, LED indicators, and connection options. Device in rack format, suitable for audio applications.

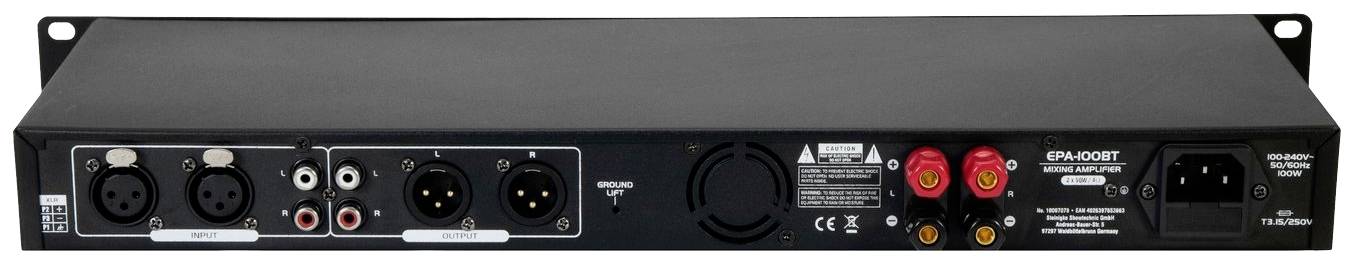

Rear view of an audio device featuring various connections, including XLR, RCA, and speaker terminals, along with a power input socket.

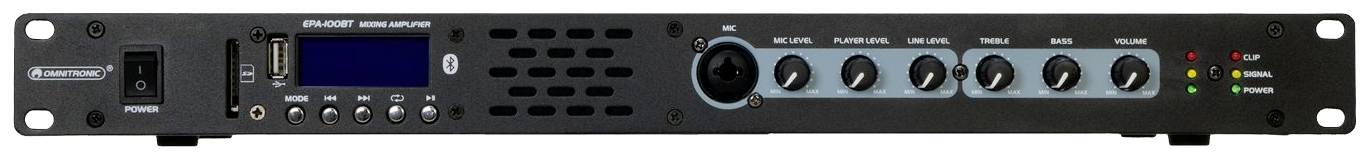

Black audio amplifier with volume controls, LED indicators, USB and SD card slots on the left side.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Omnitronic EPA-100BT mixer-amplifier

Integrated audio player with USB-connection and SD-card slotIntegrated Bluetooth audio streaming for wireless music enjoymentControllable stereo line input via XLR- and cinch-socketsAdjustable microphone input via combi-box XLR/jack on the front sideRegulator for volume, basses and treblesSignal, clip and power displayStereo line output via XLR and phono socketsScrew terminals for low-ohm loudspeakersGround-lift switch against ground loops

Technical specifications

Power supply 100-240 V AC 50/60 HzTotal connected wattage 100 WPower output:30 W RMS (8 ohm); 50 W RMS (4 ohm)Power connection: Power feed via cold devices (M) Installation version Power connection cable with safety plug (supplied)Frequency range 2 0 20000 HzCooling: FansClass D switchingDisplay type: Single-color LCD displayEqualizer:Master:1 x controls 2-band stereoInputs: Microphone via 1 x 3-pin XLR/6.35-mm jack (W) combo jack bushing; line via 2 x 3-pin XLR; line via 1 x stereo cinchOutputs: Line via 2 x 3-pin XLR; line via 1 x stereo RCA; speaker via screw terminalGHousing construction (19") 48.3 cm rack mounting possible 1 HEAudio player USB + SD + BluetoothAudio player – music format: WMA; MP3, WAVAudioplayer - carrier frequency: 2.4 GHzAudio player - Suitable storage media: USB devices/SD cards max. 32 GBAudio player - range: 10 m Bluetooth

Product type: PA amplifier

Power per channel (4Ω): 50 W

Power per channel (8Ω): 30 W

Max. frequency: 20000 Hz

Min. frequency: 20 Hz

Interfaces: XLR in
RCA in
XLR out
RCA out
Screw terminals

Weight: 2.59 kg

Width: 48.3 cm

Height: 4.45 cm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2632006 Omnitronic EPA-100BT PA amplifier RMS power per channel (at 4 Ohm): 50 W

Description

Omnitronic EPA-100BT 19" mixer amplifier with audio player COMPACT AND CLEARThe 1 HE flat stereo mixer amplifier EPA-100BT in efficient Class-D technology is especially suitable for fixed installations in restaurants, gyms and the retail trade, where a simple music synchronization is necessary.CONNECTION POSSIBILITIESIt provides 2 x 50 watt at 4 ohm and can play and control music from different sources. It comes with connection options for a microphone and a tone source with line level. It also includes an integrated audio player with USB port and memory card slot as well as a Bluetooth receiver for wireless music enjoyment from smartphones, tablets or any other Bluetooth device.

This text is machine translated.

Features

Limiter function for overload protectionEfficient Class-D technologyVery low weight and compact installation height through built-in switched-mode power supplyThe device is cooled by a fanSingle-color LCD display(19") 48.3 cm rack installation possible 1 HEFor application areas like: Trade fair construction and shop building; sports centers/fitness studios; restaurants, bars and hotels
